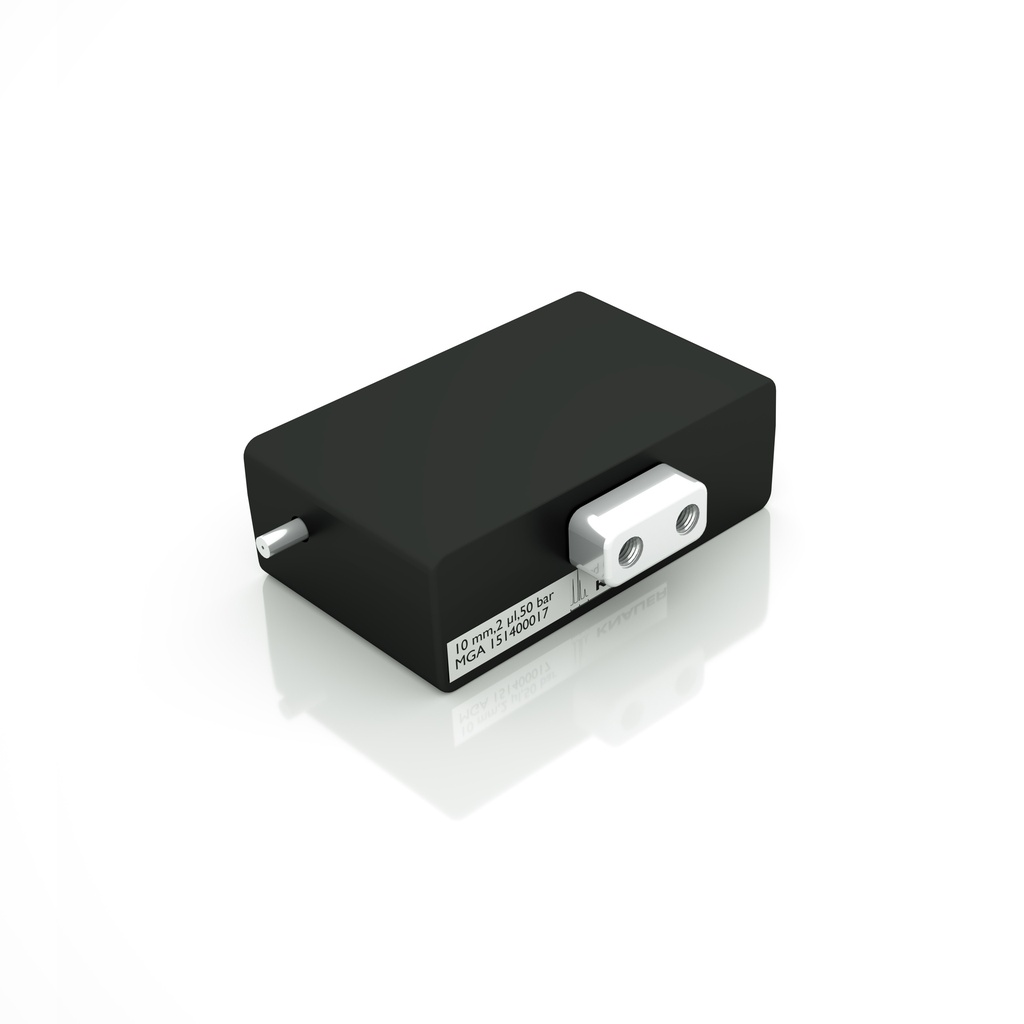

UV Flow Cell Cartridge, LightGuide, Analytical, 10 mm, 2 µl, SSt, 1/16'', 50 bar, up to 5 ml/min
The standard KNAUER LightGuide flow cell cartridge combines maximum light throughput (due to total internal reflection) with minimal peak dispersion (due to the small cell volume) to guarantee an optimized S/N ratio.
This flow cell is ideal for high throughput and high resolution. This flow cell is compatible with the KNAUER detectors AZURA® DAD 6.1L, DAD 2.1L, and MWD 2.1L.
This flow cell is ideal for high throughput and high resolution. This flow cell is compatible with the KNAUER detectors AZURA® DAD 6.1L, DAD 2.1L, and MWD 2.1L.
Internal Reference:
AMC19XA
Technical Data
| General | |
|---|---|
| Flow Cell Type | Analytical UV flow cell |
| Optical Path Length | 10 mm |
| Flow Cell (Internal) Volume | 2 µl |
| Flow Cell Max. Pressure | 50 bar, 725 psi |
| Compatible With Detector | DAD 6.1L, DAD 2.1L, MWD 2.1L |
| Flow Cell | 0.8 µL dispersion volume |
| Specifications | |
|---|---|
| Fiber Optics Version | No |
| Max. Flow Rate | 5 ml/min |
| GMP Relevant | |
|---|---|
| Biocompatible | No |
| Wetted Materials | PEEK, Quartz (SUPRASIL), PTFE (Teflon), Stainless Steel |
| Form & Fit | |
|---|---|
| Flow Cell Capillary Connection | 1/16'' |
