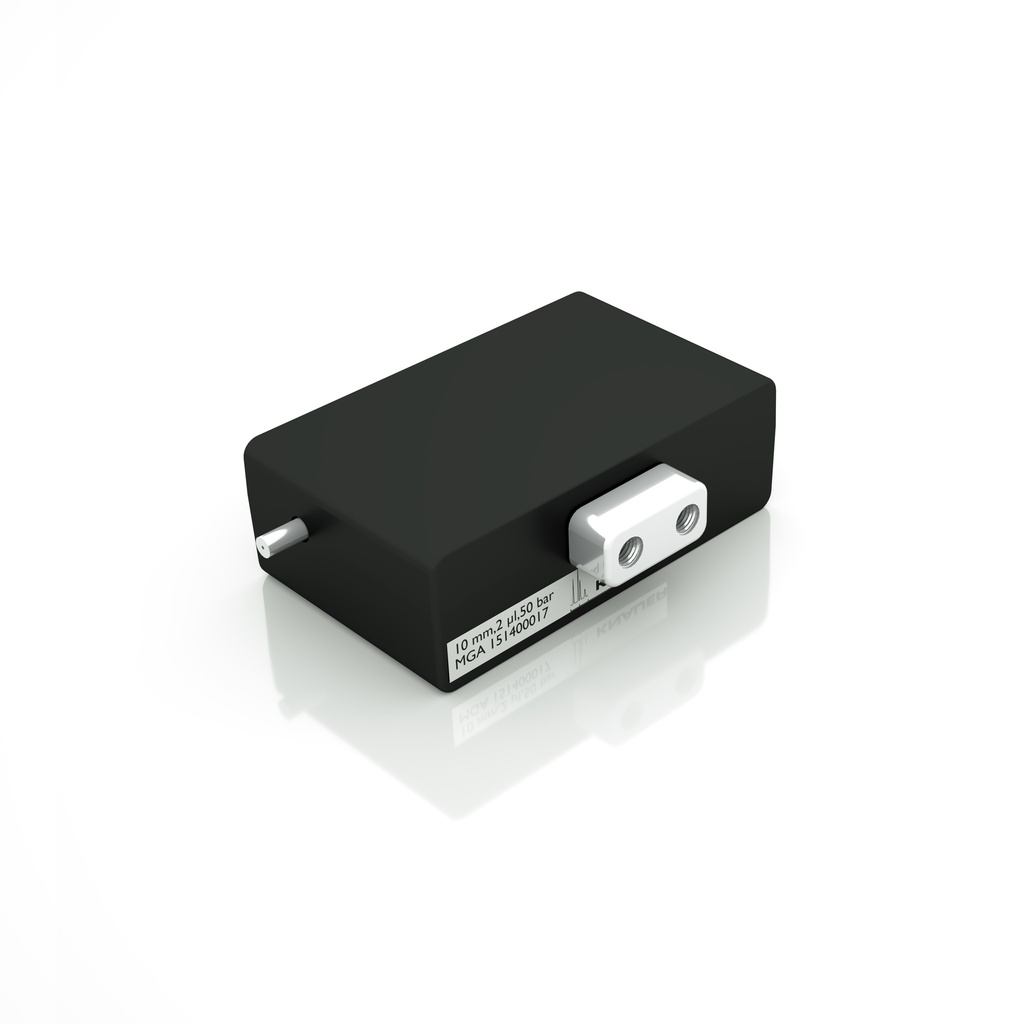

UV Flusszellen-Kartusche, LightGuide, Analytisch, 10 mm, 2 µl, Edelstahl, 1/16'', 50 bar, up to 5 ml/min
The standard KNAUER LightGuide flow cell cartridge combines maximum light throughput (due to total internal reflection) with minimal peak dispersion (due to the small cell volume) to guarantee an optimized S/N ratio.
This flow cell is ideal for high throughput and high resolution. This flow cell is compatible with the KNAUER detectors AZURA® DAD 6.1L, DAD 2.1L, and MWD 2.1L.
This flow cell is ideal for high throughput and high resolution. This flow cell is compatible with the KNAUER detectors AZURA® DAD 6.1L, DAD 2.1L, and MWD 2.1L.
Interne Referenz:
AMC19XA
Technische Daten
| Allgemein | |
|---|---|
| Flusszellentyp | Analytische UV Flusszelle |
| Optische Pfadlänge | 10 mm |
| Flusszelle Volumen (intern) | 2 µl |
| Flusszelle Max. Druck | 50 bar, 725 psi |
| Kompatibel mit dem Detektor | DAD 6.1L, DAD 2.1L, MWD 2.1L |
| Flusszelle | 0,8 µl Dispersionsvolumen |
| Spezifikationen | |
|---|---|
| Lichtwellenleiter Version | Nein |
| Max. Flussrate | 5 ml/min |
| GMP Relevant | |
|---|---|
| Biokompatibel | Nein |
| Benetzte Materialien | PEEK, Quartz (SUPRASIL), PTFE (Teflon), Rostfreier Stahl (SST) |
| Geometrie & Passform | |
|---|---|
| Flusszelle Kapillaranschluss | 1/16'' |
