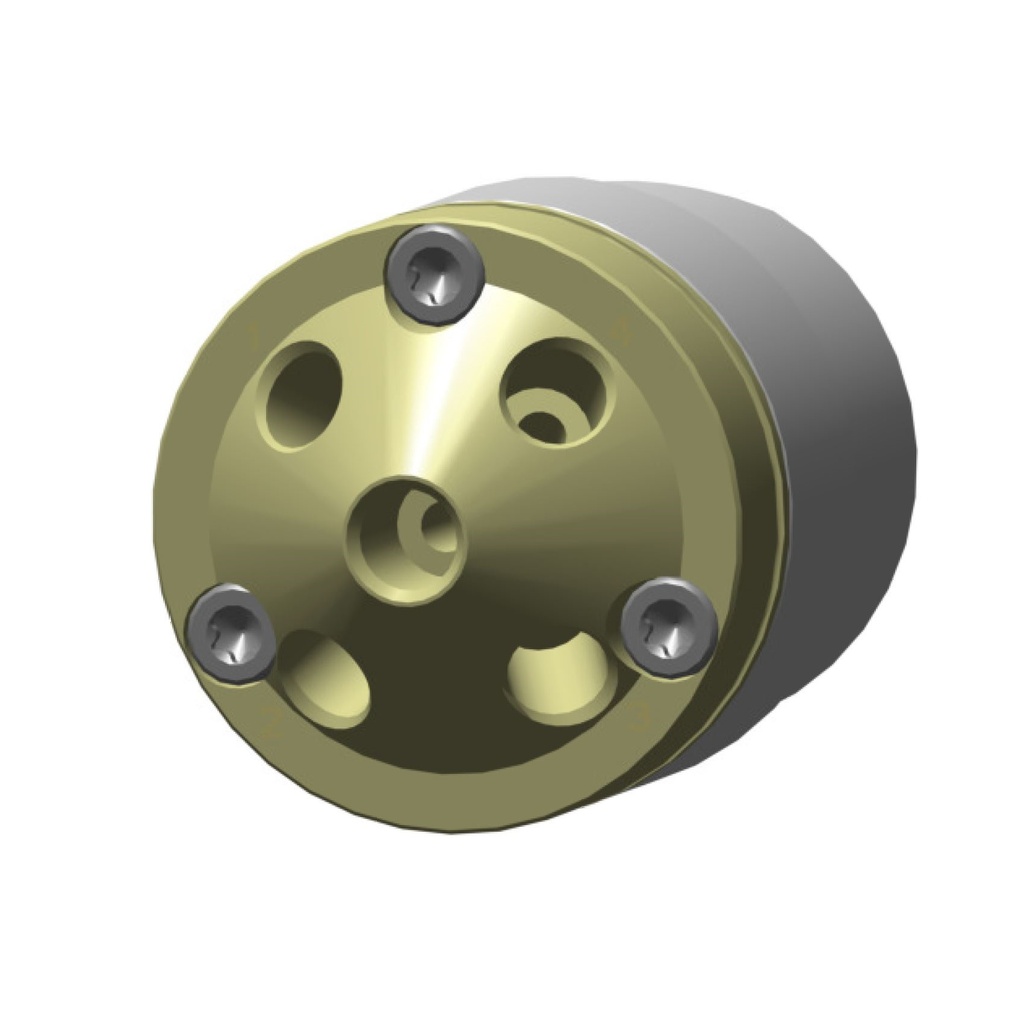

AZURA® V 4.1 Valve, 4Port MultiPos w/o drive, 50 bar, 3/16" 5/16-24 UNF flat bottom, 3 mm bore, PEEK/Vespel, incl. adapters for 1/4" tubing
Automated valve for solvent selection in prep LC. PEEK stator and Vespel rotor seal.
This valve is used in combination with the VU 4.1 valve unifier. Multiposition valves are ubiquitous in HPLC and UHPLC applications. They act like a switch and can control the flow path of the chromatography system in various ways. The stator of this automated multiposition valve is made of natural PEEK. In combination with a Vespel rotor seal the valve offers high durability and a pressure resistance of up to 50 bar. This valve especially designed for solvent selection in preparative LC and has 4 ports.
It can be connected to 1/4" tubing with included adapters and fittings.
Internal Reference:
AVW01GC
Technical Data
| General | |
|---|---|
| Valve Function | Column selection, Eluent selection, Sample selection |
| Valve Model | V 4.1 |
| Operated | Electrical by VU 4.1 |
| Valve Drive | Not included |
| Valve Material | Biocompatible |
| Specifications | |
|---|---|
| Valve Port Number | 4 |
| Valve Positions | Multiposition |
| Valve Capillary Connection | 1/16" |
| Valve Max. Pressure | 50 bar |
| GMP Relevant | |
|---|---|
| Stator Material | PEEK |
| Rotor Material | Vespel |
| Form & Fit | |
|---|---|
| Bore Size | 3.0 mm |
| Thread | UNF 5/16-24 |
