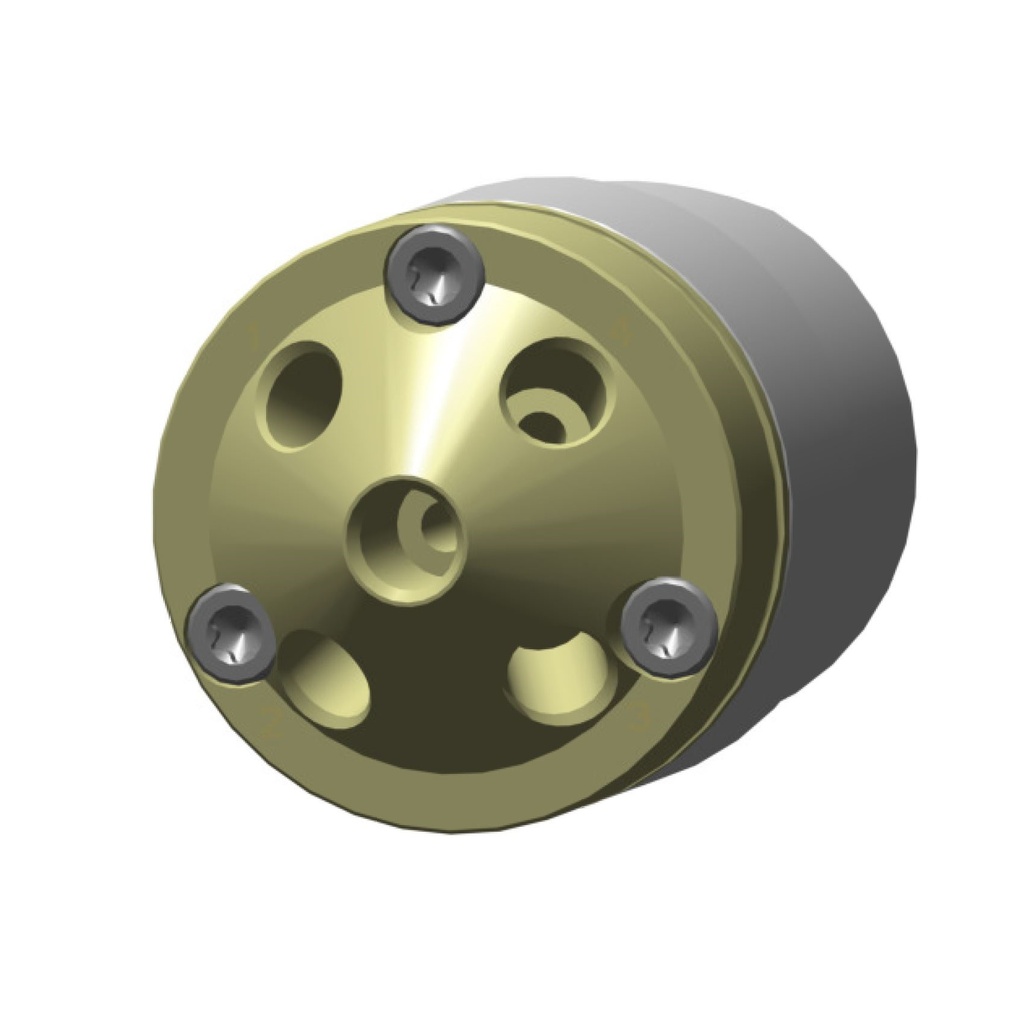

AZURA® V 4.1 Valve, 4Port MultiPos w/o drive, 50 bar, 3/16" 5/16-24 UNF flat bottom, 3 mm bore, PEEK/Vespel, incl. Adapter für 1/4" Tubing
Automated valve for solvent selection in prep LC. PEEK stator and Vespel rotor seal.
Incl. connections for 3/16" and 1/4" tubing.
This valve is used in combination with the VU 4.1 valve unifier. Multiposition valves are ubiquitous in HPLC and UHPLC applications. They act like a switch and can control the flow path of the chromatography system in various ways. The stator of this automated multiposition valve is made of natural PEEK. In combination with a Vespel rotor seal the valve offers high durability and a pressure resistance of up to 50 bar. This valve especially designed for solvent selection in preparative LC and has 4 ports.
It can be connected to 1/4" tubing with included adapters and fittings.
Interne Referenz:
AVW01GC
Technische Daten
| Allgemein | |
|---|---|
| Ventilfunktion | Säulenauswahl, Eluentenauswahl, Probenauswahl |
| Ventilmodell | V 4.1 |
| Bedienung | Elektrisch durch VU 4.1 |
| Ventilantrieb | Nicht enthalten |
| Ventilmaterial | Biokompatibel |
| Spezifikationen | |
|---|---|
| Ventilport Anzahl | 4 |
| Ventilpositionen | Multiposition |
| Kapillaranschlüsse im Ventil | 1/16" |
| Max. Druck im Ventil | 50 bar |
| GMP Relevant | |
|---|---|
| Statormaterial | PEEK |
| Rotormaterial | Vespel |
| Geometrie & Passform | |
|---|---|
| Bohrungsgröße | 3.0 mm |
| Gewinde | UNF 5/16-24 flat bottom |
Finde alle Produktspezifikationen hier
