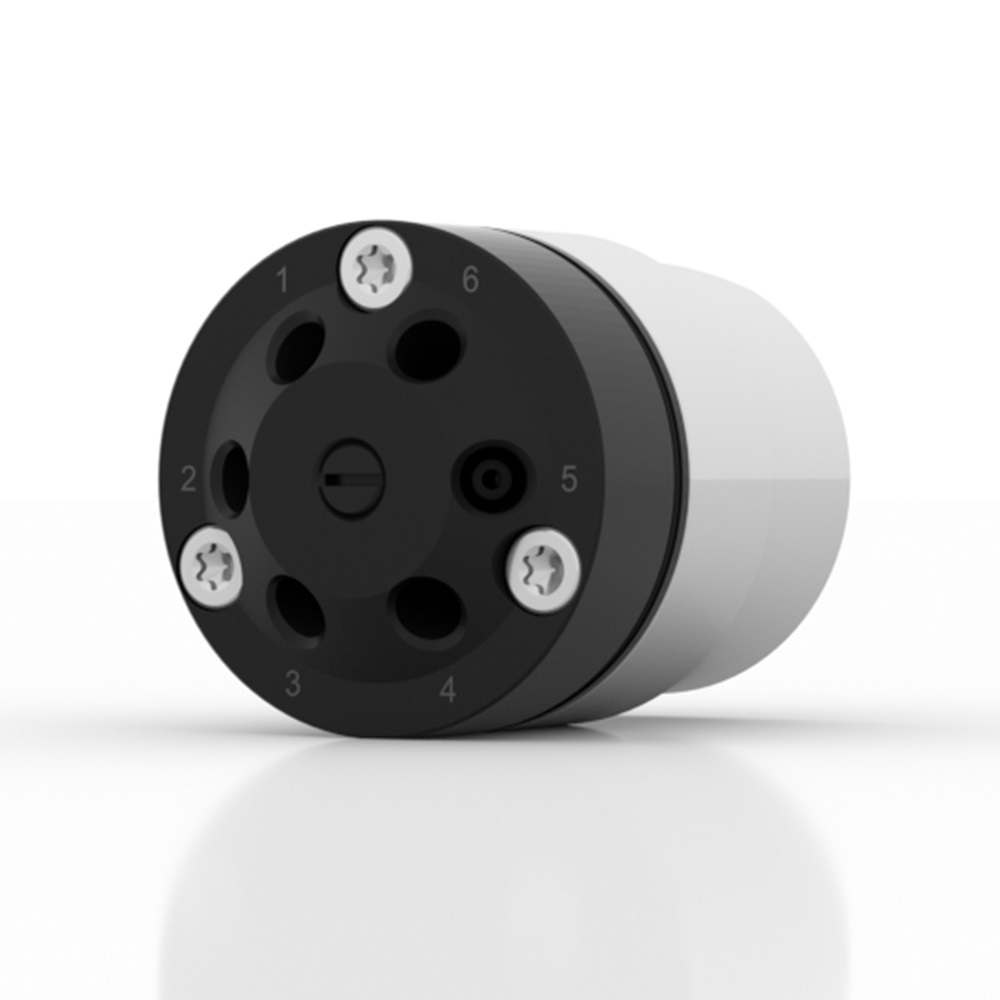

AZURA® V 4.1 Valve, 6Port 2Pos 2 channel w/o drive, 300 bar, 1/8" 1/4-28 UNF, 1.5 mm bore size, SSt-DLC/PEEK
Automated valve for preparative two-way flow selection. DLC coated SSt stator and PEEK TX rotor seal.
This valve is used in combination with the VU 4.1 valve unifier. The stator of this injection valve is made of stainless steel with a DLC coating (diamond-like carbon). In combination with a PEEK rotor seal the valve offers high durability and a pressure resistance of up to 300 bar. This valve is made for preparative applications applying 1/8" tubings.The rotor seal of this 6 port 2-position valve has two channels instead of three as in a usual injection valve. Each channel allows the use for two-way flow selection (e.g. detector, waste). Unused ports can be closed by provided plugs.
Internal Reference:
AVE25AI
Technical Data
| General | |
|---|---|
| Valve Function | Column selection |
| Valve Model | V 4.1 |
| Operated | Electrical by VU 4.1 |
| Valve Drive | Not included |
| Valve Material | Stainless steel (SST) |
| Specifications | |
|---|---|
| Valve Port Number | 6 |
| Valve Positions | 2 |
| Valve Capillary Connection | 1/8" |
| Valve Max. Pressure | 300 bar |
| GMP Relevant | |
|---|---|
| Stator Material | Stainless steel-DLC |
| Rotor Material | PEEK |
| Form & Fit | |
|---|---|
| Bore Size | 1.5 mm |
| Thread | UNF 1/4-28 |
