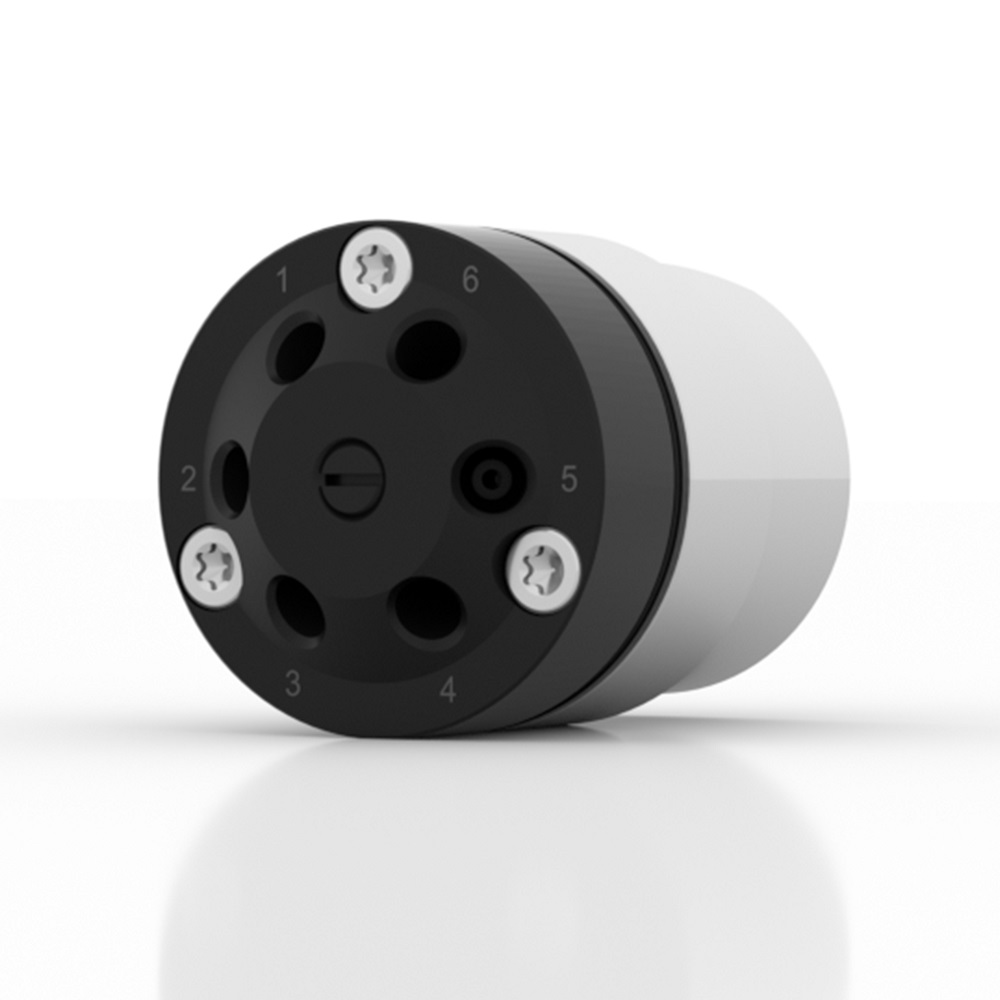

AZURA® V 4.1 Schaltventil, 6Port 2Pos 2 Kanäle o. Antrieb, 300 bar, 1/8" 1/4-28 UNF, 1,5 mm Bohrung, SSt-DLC/PEEK
Automatisches Ventil für präparative Zwei-Wege-Durchflusswahl. DLC-beschichteter SSt-Stator und PEEK TX-Rotordichtung.
This valve is used in combination with the VU 4.1 valve unifier. The stator of this injection valve is made of stainless steel with a DLC coating (diamond-like carbon). In combination with a PEEK rotor seal the valve offers high durability and a pressure resistance of up to 300 bar. This valve is made for preparative applications applying 1/8" tubings.The rotor seal of this 6 port 2-position valve has two channels instead of three as in a usual injection valve. Each channel allows the use for two-way flow selection (e.g. detector, waste). Unused ports can be closed by provided plugs.
Interne Referenz:
AVE25AI
Technische Daten
| Allgemein | |
|---|---|
| Ventilfunktion | Säulenauswahl |
| Ventilmodell | V 4.1 |
| Bedienung | Elektrisch durch VU 4.1 |
| Ventilantrieb | Nicht enthalten |
| Ventilmaterial | Rostfreier Stahl (SST) |
| Spezifikationen | |
|---|---|
| Ventilport Anzahl | 6 |
| Ventilpositionen | 2 |
| Kapillaranschlüsse im Ventil | 1/8" |
| Max. Druck im Ventil | 300 bar |
| GMP Relevant | |
|---|---|
| Statormaterial | Rostfreier Stahl-DLC (SST-DLC) |
| Rotormaterial | PEEK |
| Geometrie & Passform | |
|---|---|
| Bohrungsgröße | 1.5 mm |
| Gewinde | UNF 1/4-28 |
Finde alle Produktspezifikationen hier
