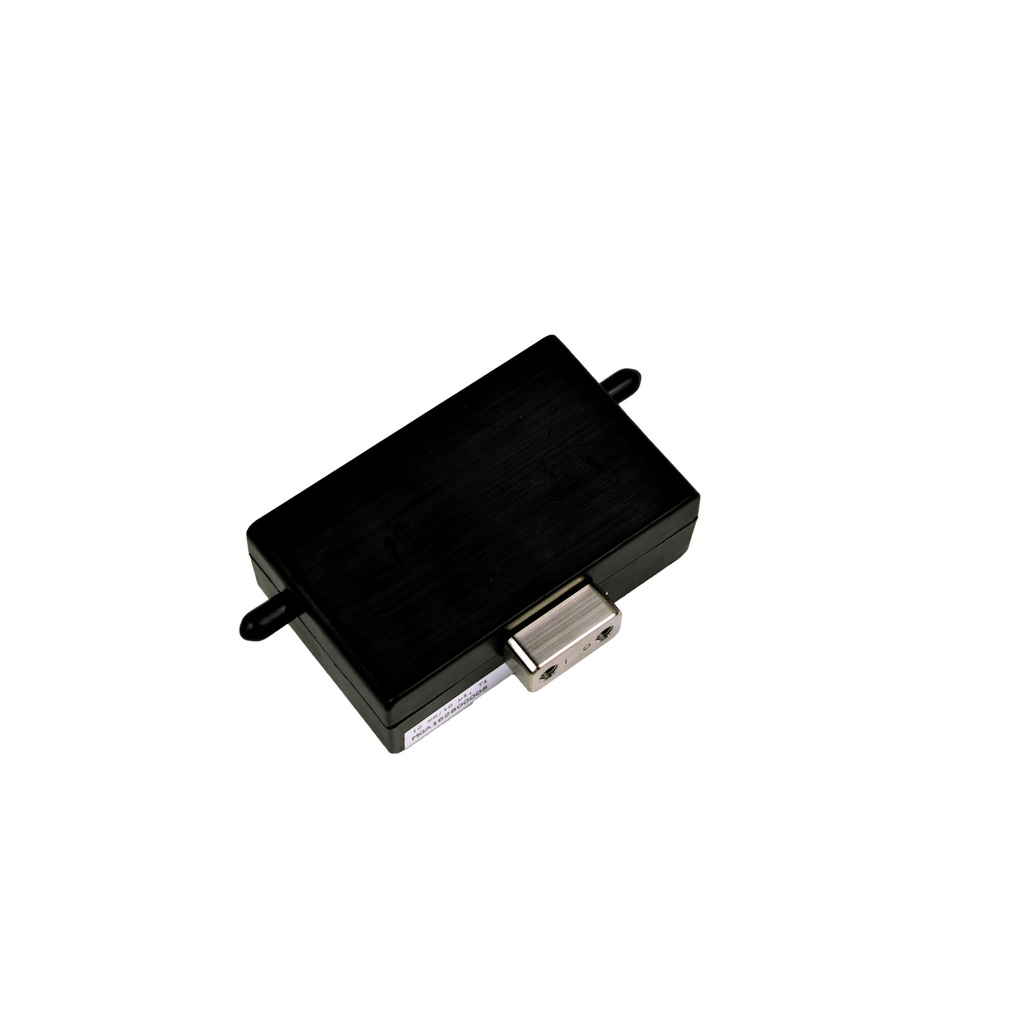

UV Flow Cell Cartridge, PressureProof, Analytical, 10 mm, 10 µl, Titanium, 1/16'', 300 bar, up to 20 ml/min
This bioinert analytical flow cell cartridge is optimized for conventional HPLC applications and features an increased pressure stability (up to 300 bar) and extended flow rate range (up to 20 ml/min).
This flow cell is compatible with the KNAUER detectors AZURA® DAD 6.1L, DAD 2.1L, and MWD 2.1L.
This flow cell is compatible with the KNAUER detectors AZURA® DAD 6.1L, DAD 2.1L, and MWD 2.1L.
Internal Reference:
AMC38
Technical Data
| General | |
|---|---|
| Flow Cell Type | Analytical UV flow cell |
| Optical Path Length | 10 mm |
| Flow Cell (Internal) Volume | 10 µl |
| Flow Cell Max. Pressure | 300 bar, 4351 psi |
| Compatible With Detector | DAD 6.1L, DAD 2.1L, MWD 2.1L |
| Specifications | |
|---|---|
| Fiber Optics Version | No |
| Max. Flow Rate | 20 ml/min |
| GMP Relevant | |
|---|---|
| Biocompatible | Yes |
| Wetted Materials | Titanium/Grade 5, Quartz (SUPRASIL), PEEK |
| Form & Fit | |
|---|---|
| Flow Cell Capillary Connection | 1/16'' |
