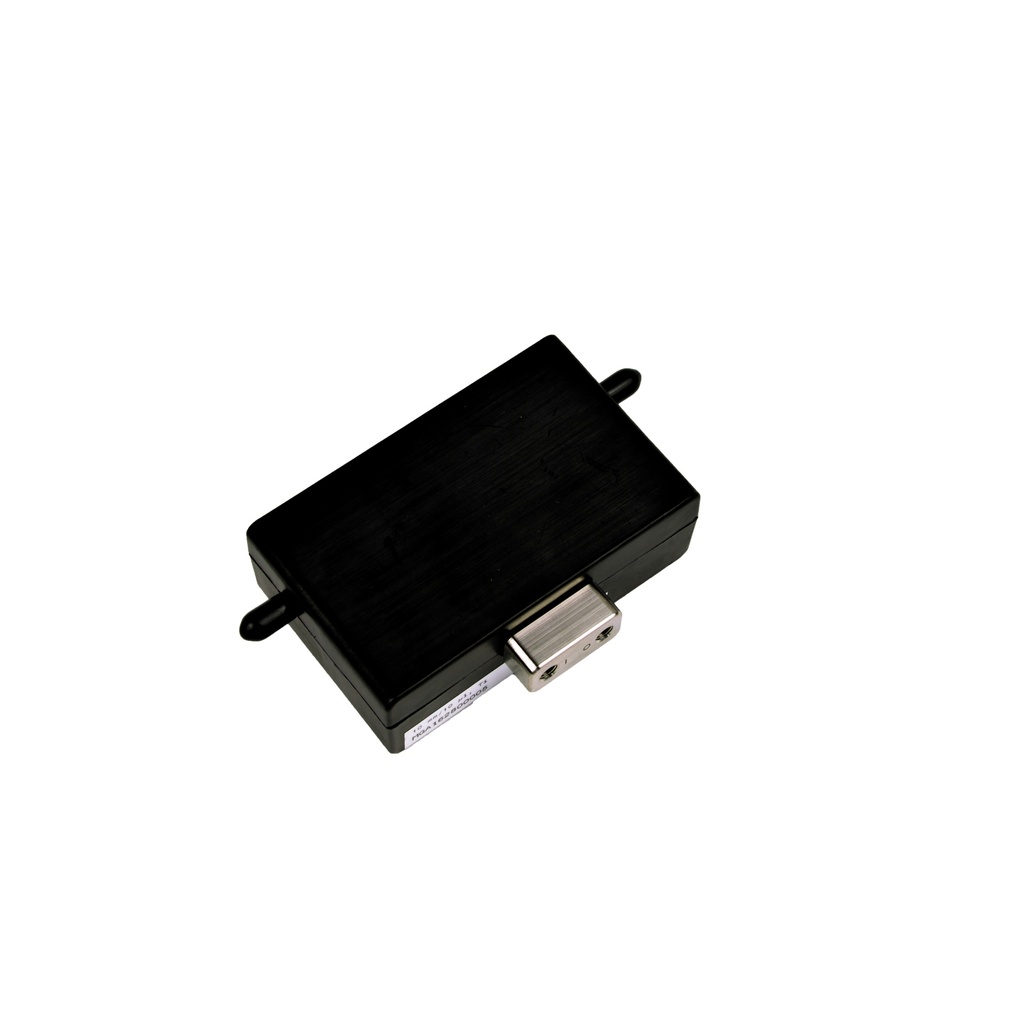

UV Flow Cell Cartridge, PressureProof, Semi-Preparative, 3 mm, 2 µl, Titanium, 1/16'', 300 bar, up to 100 ml/min
This bioinert semi-preparative flow cell cartridge is optimized for high flow HPLC and FPLC applications and features an increased pressure stability (up to 300 bar) and extended flow rate range (up to 100 ml/min).
This flow cell is compatible with the KNAUER detectors AZURA® DAD 6.1L, DAD 2.1L, and MWD 2.1L.
Internal Reference:
AMB18
Technical Data
| General | |
|---|---|
| Flow Cell Type | Semi-preparative UV flow cell |
| Optical Path Length | 3 mm |
| Flow Cell (Internal) Volume | 2 µl |
| Flow Cell Max. Pressure | 300 bar, 4351 psi |
| Compatible With Detector | DAD 6.1L, DAD 2.1L, MWD 2.1L |
| Specifications | |
|---|---|
| Fiber Optics Version | No |
| Max. Flow Rate | 100 ml/min |
| GMP Relevant | |
|---|---|
| Biocompatible | Yes |
| Wetted Materials | Titanium/Grade 5, Quartz (SUPRASIL), PEEK |
| Form & Fit | |
|---|---|
| Flow Cell Capillary Connection | 1/16'' |
