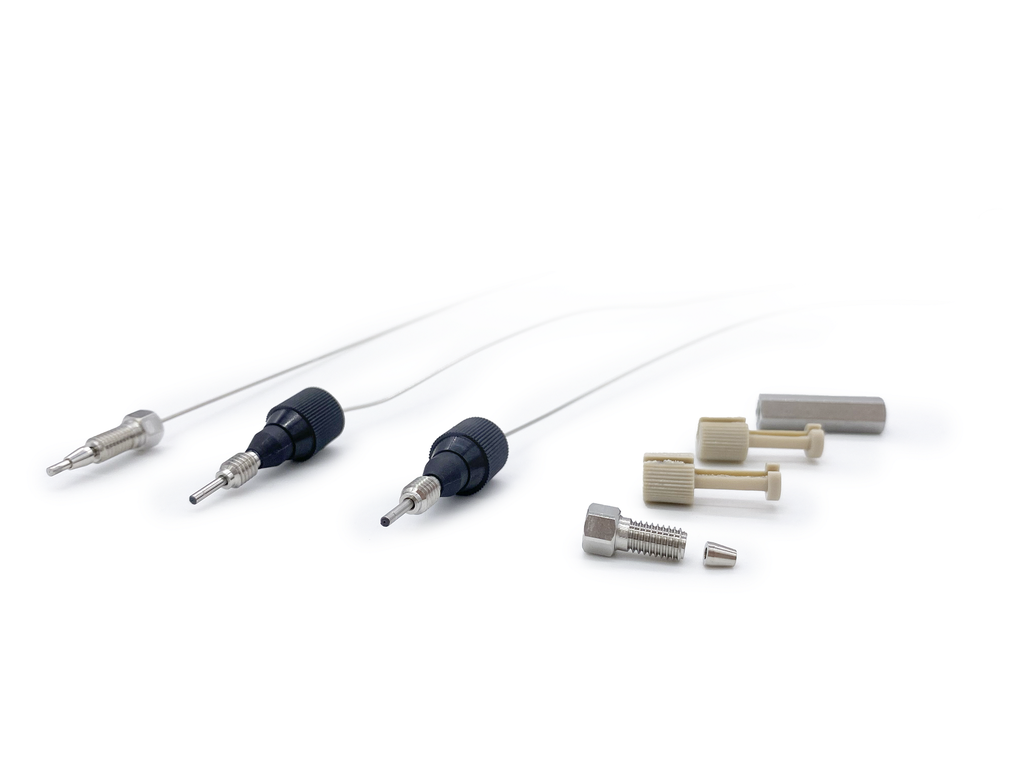

Azura Analytical MarvelXACTTM StartUp kit for HPLC Set of capillaries, adapters and connectors
For KNAUER AZURA Analytical HPLC 862 bar systems
The AZURA Analytical Trouble-free StartUp Kit contains:

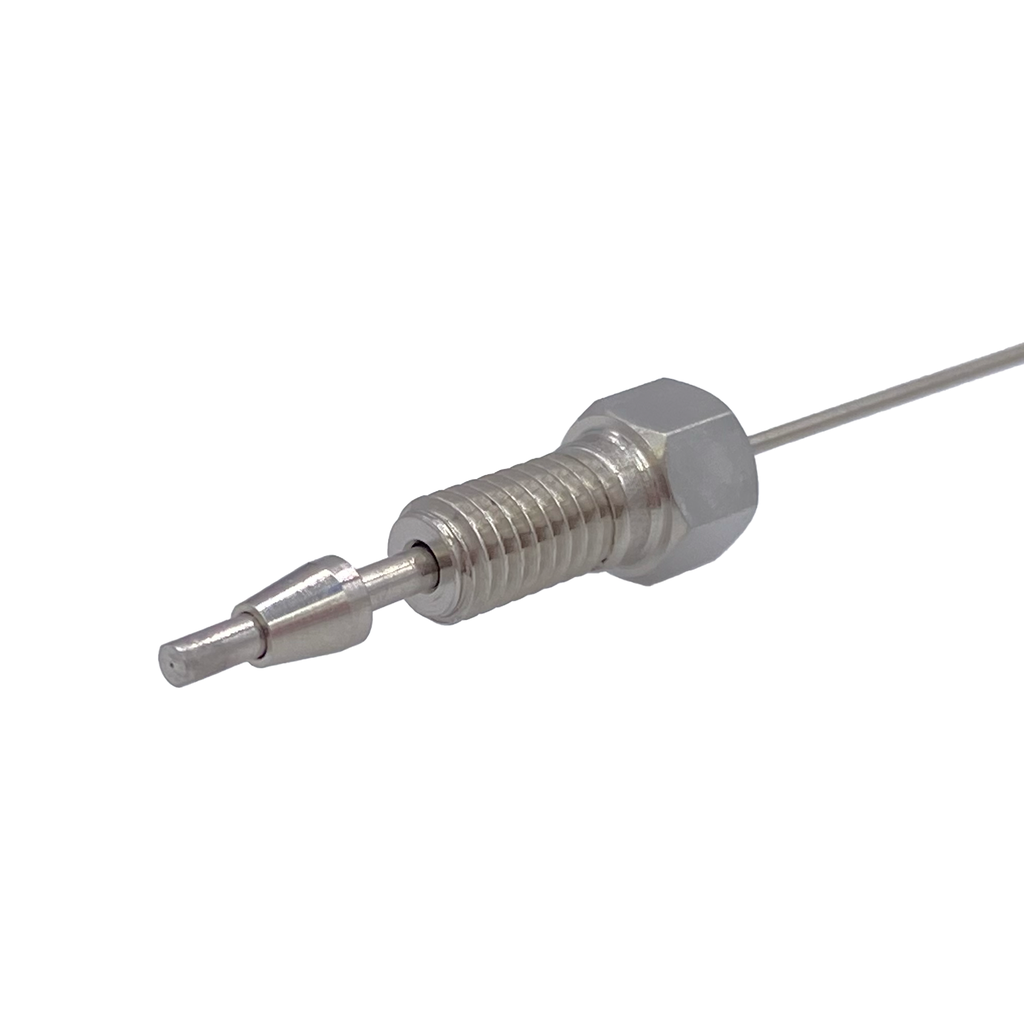

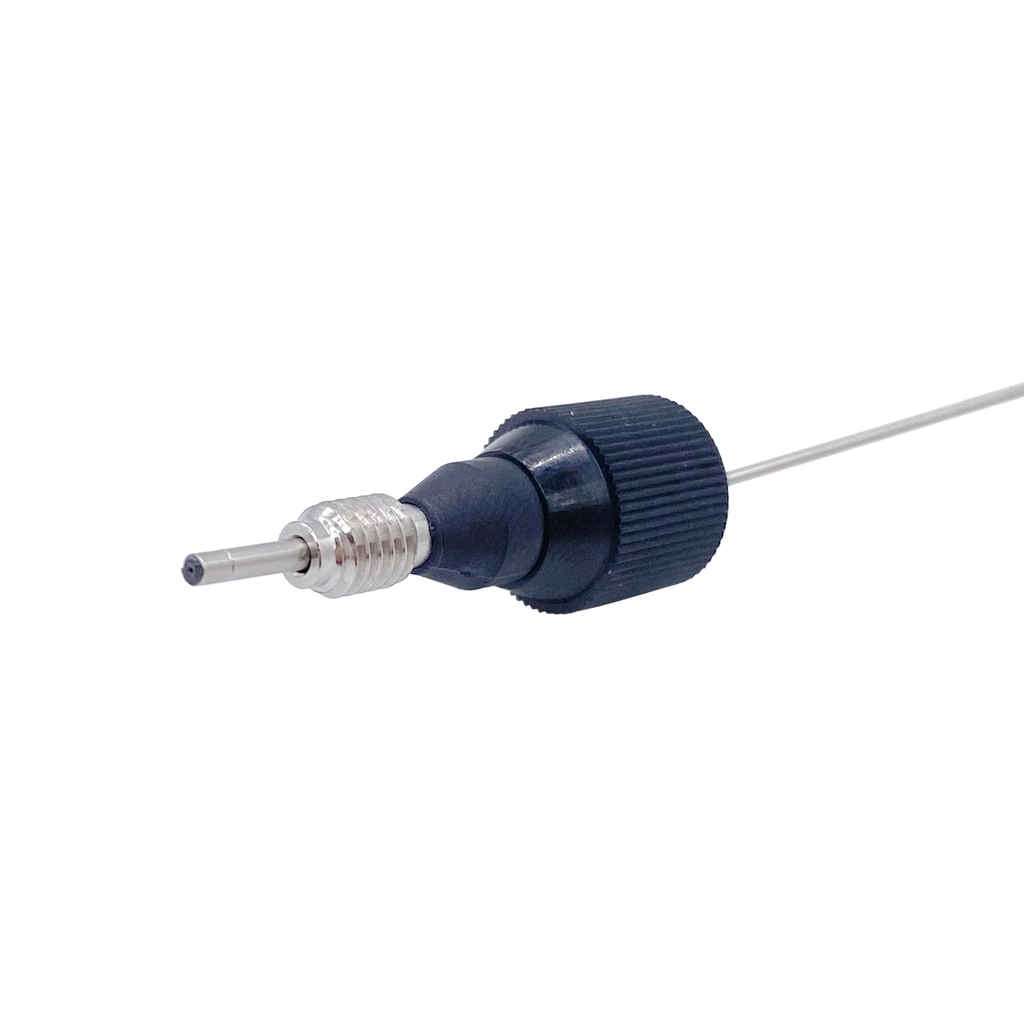

1 capillary 600 mm length, 0.254 mm ID incl. fittings for connection of pump and autosampler
1 capillary 600 mm length, 0.125 mm ID incl. fittings for connection autosampler and column (for columns up to 300 mm length)
1 capillary 500 mm length, 0.125 mm ID incl. fittings for connection of column and detector
1 capillary 900 mm length, 0.18 mm ID incl. fittings for connection of pump and autosampler for all systems with 2 AZURA L detectors or benchtop installation
1 Connector UNF 10/32 - UNF 10/32 stainless steel

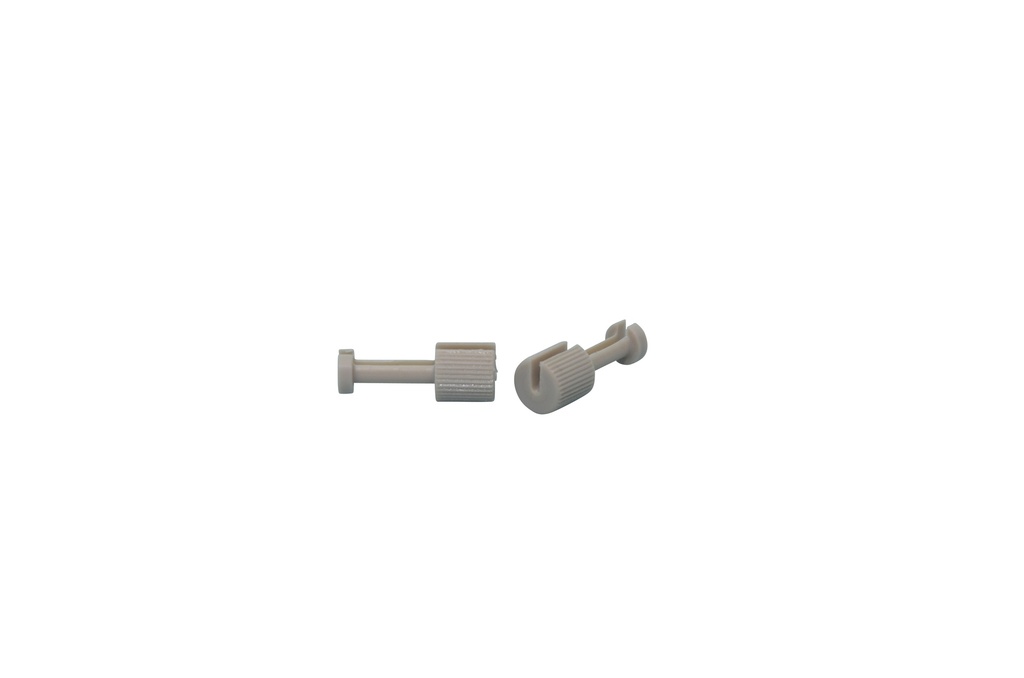

5 adapters for AZURA L-devices capillary guidance
1 capillary 600 mm length, 0.254 mm ID incl. fittings for connection of pump and autosampler
1 capillary 600 mm length, 0.125 mm ID incl. fittings for connection autosampler and column (for columns up to 300 mm length)
1 capillary 500 mm length, 0.125 mm ID incl. fittings for connection of column and detector
1 capillary 900 mm length, 0.18 mm ID incl. fittings for connection of pump and autosampler for all systems with 2 AZURA L detectors or benchtop installation
1 Connector UNF 10/32 - UNF 10/32 stainless steel
5 adapters for AZURA L-devices capillary guidance
Internal Reference:
AZF120
Technical Data
| General | |
|---|---|
| Product Type | Kit, Capillary |
| Specifications | |
|---|---|
| Capillary Material | Stainless Steel |
| Capillary Connection | 1/16" |
| Thread | UNF 10-32 |
| Capillary Length [mm] | 500, 600, 900 |
| Maximum pressure [bar] | 862 |
| Inner Diameter [mm] | 0.125, 0.18, 0.254 |
