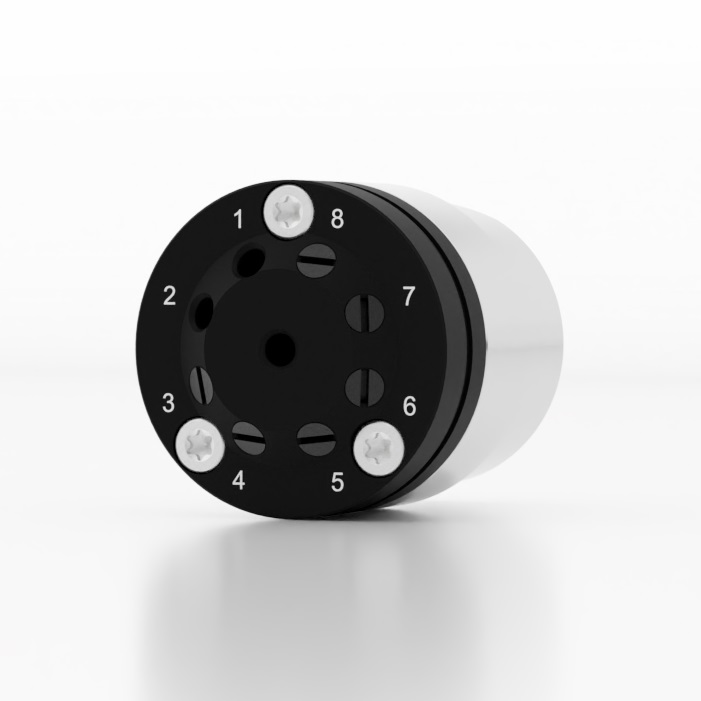

AZURA® V 4.1 Valve, 2Port MultiPos w/o drive, Patented Break-free rotor seal, 300 bar, 1/16" 10-32 UNF, 0.75 mm bore, SST-DLC/PEEK
Automated pressureless valve for applications like column, eluent or sample selection and fraction collection.The patented break-free design guarantees switching without pressure peaks. DLC coated SSt stator and PEEK TX rotor seal.
This valve is used in combination with the VU 4.1 valve unifier.
Multiposition valves are ubiquitous in HPLC and UHPLC applications. They act like a switch and can control the flow path of the chromatography system in various ways.
The stator of this automated pressureless multiposition valve is made of stainless steel with a DLC coating (diamond-like carbon). In combination with a PEEK TX rotor seal the valve offers high durability and a pressure resistance of up to 300 bar.
This valve is best suited for preparative applications and has 2 ports.
Internal Reference:
AVS85AH
Find product specifications here
