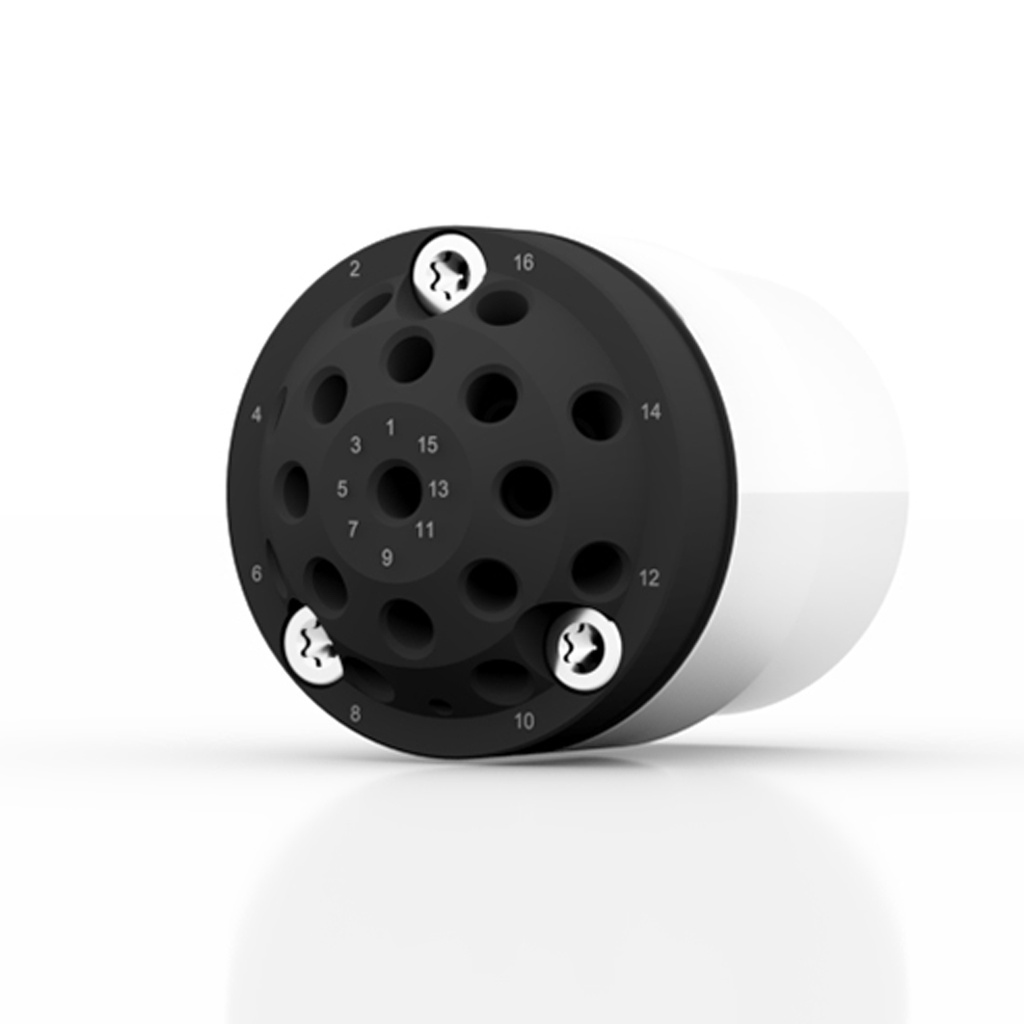

AZURA® V 4.1 Valve, 16Port MultiPos w/o drive, 50 bar, 1/16" 10-32 UNF, 0.75 mm bore, PEEK/PEEK
Automated biocompatible valve for applications like column, eluent or sample selection and fraction collection. PEEK HPV stator and PEEK TX rotor seal.
This valve is used in combination with the VU 4.1 valve unifier.
Multiposition valves are ubiquitous in HPLC and UHPLC applications. They act like a switch and can control the flow path of the chromatography system in various ways.
The stator of this automated multiposition valve is made of PEEK HPV. In combination with a PEEK TX rotor seal the valve offers high durability and a pressure resistance of up to 50 bar.
This valve is biocompatible and best suited for preparative applications and has 16 ports.
Internal Reference:
AVS62CE
Technical Data
| General | |
|---|---|
| Valve Function | Column selection, Sample selection, Eluent selection, Fraction collection |
| Valve Model | V 4.1 |
| Operated | Electrical by VU 4.1 |
| Valve Drive | Not included |
| Valve Material | Biocompatible |
| Specifications | |
|---|---|
| Valve Port Number | 16 |
| Valve Positions | Multiposition |
| Valve Capillary Connection | 1/16" |
| Valve Max. Pressure | 50 bar |
| GMP Relevant | |
|---|---|
| Stator Material | PEEK |
| Rotor Material | PEEK |
| Form & Fit | |
|---|---|
| Bore Size | 0.75 mm |
| Thread | UNF 10-32 |
Find product specifications here
