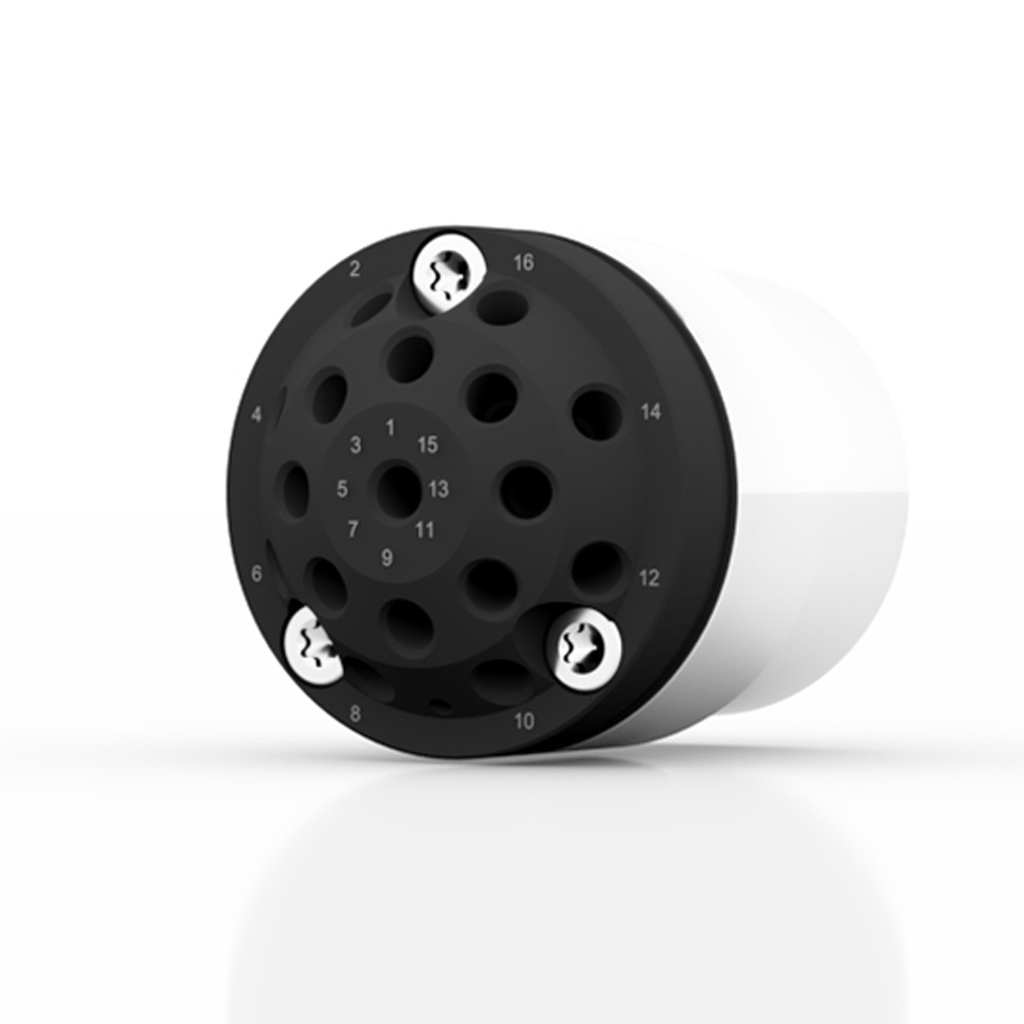

AZURA® V 4.1 Valve, 16Port MultiPos w/o drive, 100 bar, 1/16" 10-32 UNF, 0.6 mm bore, SSt-DLC/POM
Automated valve for applications like column, eluent or sample selection and fraction collection. DLC coated SSt stator and POM rotor seal.
This valve is used in combination with the VU 4.1 valve unifier.
Multiposition valves are ubiquitous in HPLC and UHPLC applications. They act like a switch and can control the flow path of the chromatography system in various ways.
The stator of this automated multiposition valve is made of stainless steel with a DLC coating (diamond-like carbon). In combination with a POM rotor seal the valve offers high durability and a pressure resistance of up to 100 bar.
This valve is best suited for preparative applications and has 16 ports.
Internal Reference:
AVQ63AF
Technical Data
| General | |
|---|---|
| Valve Function | Column selection or Eluent selection or Fraction collection or Sample selection |
| Valve Model | V 4.1 |
| Operated | Electrical by VU 4.1 |
| Valve Drive | Not included |
| Valve Material | Stainless steel (SST) |
| Specifications | |
|---|---|
| Valve Port Number | 16 |
| Valve Positions | Multiposition |
| Valve Capillary Connection | 1/16" |
| Valve Max. Pressure | 100 bar |
| GMP Relevant | |
|---|---|
| Stator Material | Stainless steel-DLC |
| Rotor Material | POM |
| Form & Fit | |
|---|---|
| Bore Size | 0.6 mm |
| Thread | UNF 10-32 |
Find product specifications here
