  2. AZURA® V 4.1 Valve, Manual 6Port 2Pos, 240 bar, 1/16" 10-32 UNF, 0.75 mm bore size, PEEK/PEEK

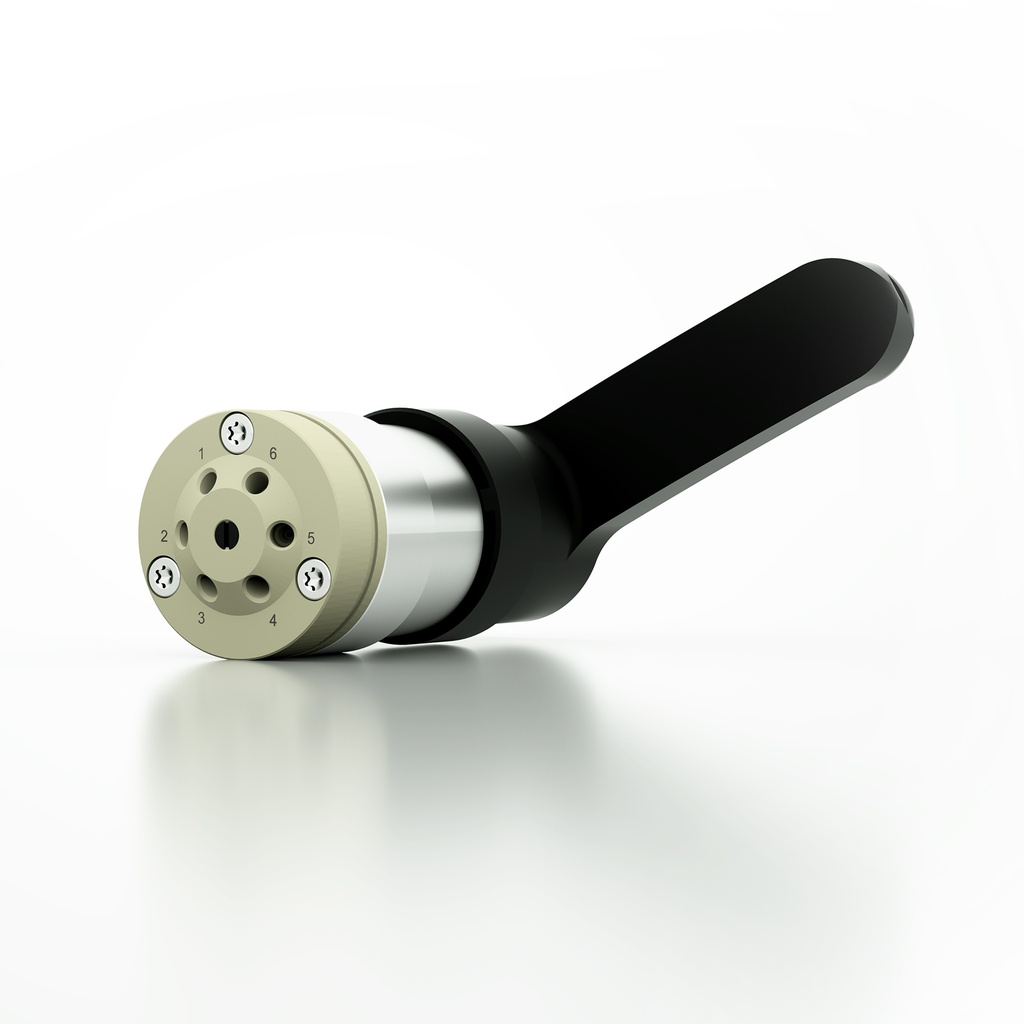

AZURA® V 4.1 Valve, Manual 6Port 2Pos, 240 bar, 1/16" 10-32 UNF, 0.75 mm bore size, PEEK/PEEK

AZURA® V 4.1 Valve, Manual 6Port 2Pos, 240 bar, 1/16" 10-32 UNF, 0.75 mm bore size, PEEK/PEEK

https://store.knauer.net/web/image/product.template/63331/image_1920?unique=0b7440d

Biocompatible manual valve for sample injection or column selection. PEEK stator and PEEK TX rotor seal.

The stator of this manual injection valve is made of natural PEEK. In combination with a PEEK TX rotor seal the valve offers high durability and a pressure resistance of up to 240 bar.

  • Valve Function
  • Valve Function
  • Valve Model
  • Operated
  • Valve Material
  • Valve Port Number
  • Valve Positions
  • Valve Capillary Connection
  • Valve Max. Pressure
  • Bore Size
  • Stator Material
  • Rotor Material
  • Thread

This combination does not exist.

Contact Us

Terms and Conditions
Images may differ from the actual product.

Share

Internal Reference: AVG24CE

Technical Data

General
Valve Function Column selection, Injection
Valve Model V 4.1
Operated Manual
Valve Material Biocompatible
Specifications
Valve Port Number 6
Valve Positions 2
Valve Capillary Connection 1/16"
Valve Max. Pressure 240 bar
GMP Relevant
Stator Material PEEK
Rotor Material PEEK
Form & Fit
Bore Size 0.75 mm
Thread UNF 10-32
