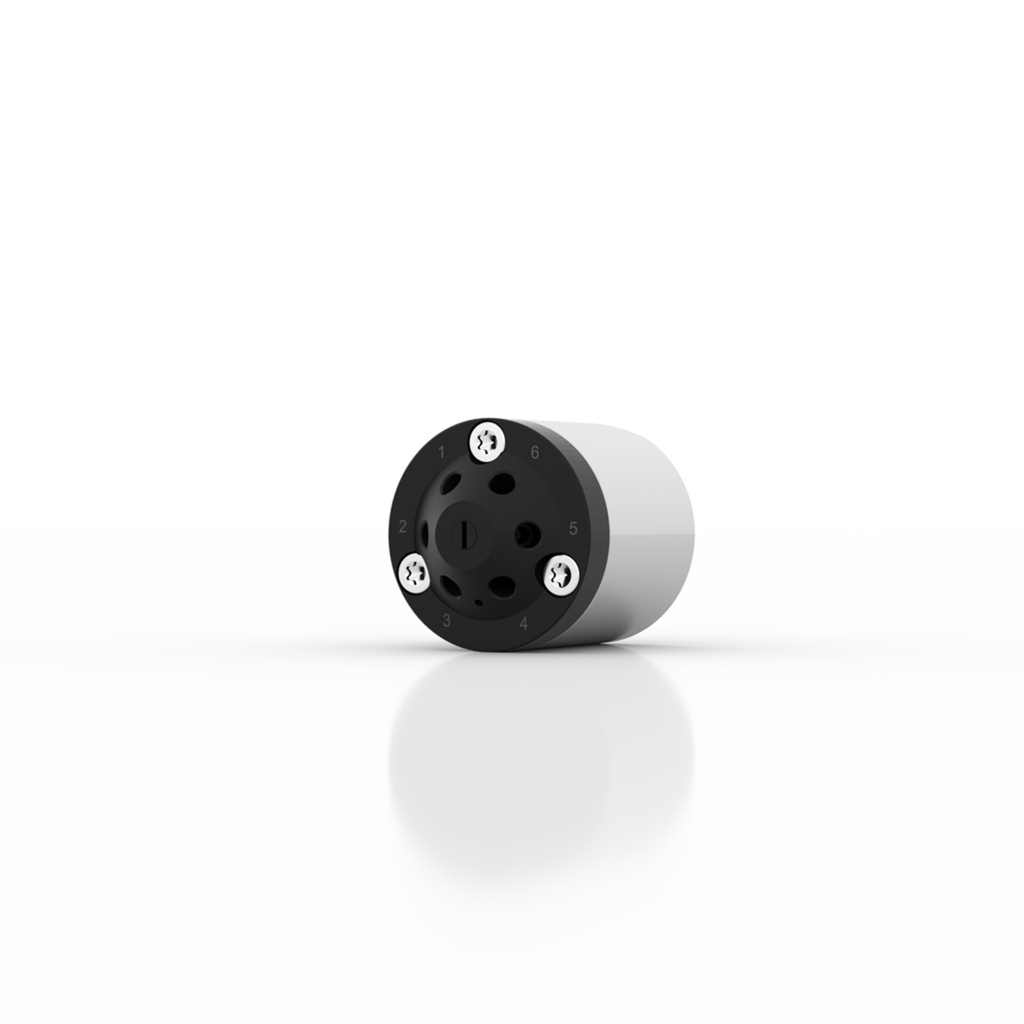

AZURA® V 4.1 Valve, 6Port 2Pos w/o drive, 1200 bar, 1/16" 10-32 UNF, 0.3 mm bore, SSt-DLC/Vespel
Automated valve for analytical applications like sample injection or column selection. DLC coated SSt stator and Vespel rotor seal.
This valve is used in combination with the VU 4.1 valve unifier.
The stator of this injection valve is made of stainless steel with a DLC coating (diamond-like carbon). In combination with a Vespel rotor seal the valve offers high durability and a pressure resistance of up to 1200 bar.
The valve is for analytical applications and has 6 ports.
Internal Reference:
AVC28AC
Technical Data
| General | |
|---|---|
| Valve Function | Column selection or Injection |
| Valve Model | V 4.1 |
| Operated | Electrical by VU 4.1 |
| Valve Drive | Not included |
| Valve Material | Stainless steel (SST) |
| Specifications | |
|---|---|
| Valve Port Number | 6 |
| Valve Positions | 2 |
| Valve Capillary Connection | 1/16" |
| Valve Max. Pressure | 1200 bar |
| GMP Relevant | |
|---|---|
| Stator Material | Stainless steel-DLC |
| Rotor Material | Vespel |
| Form & Fit | |
|---|---|
| Bore Size | 0.3 mm |
| Thread | UNF 10-32 |
