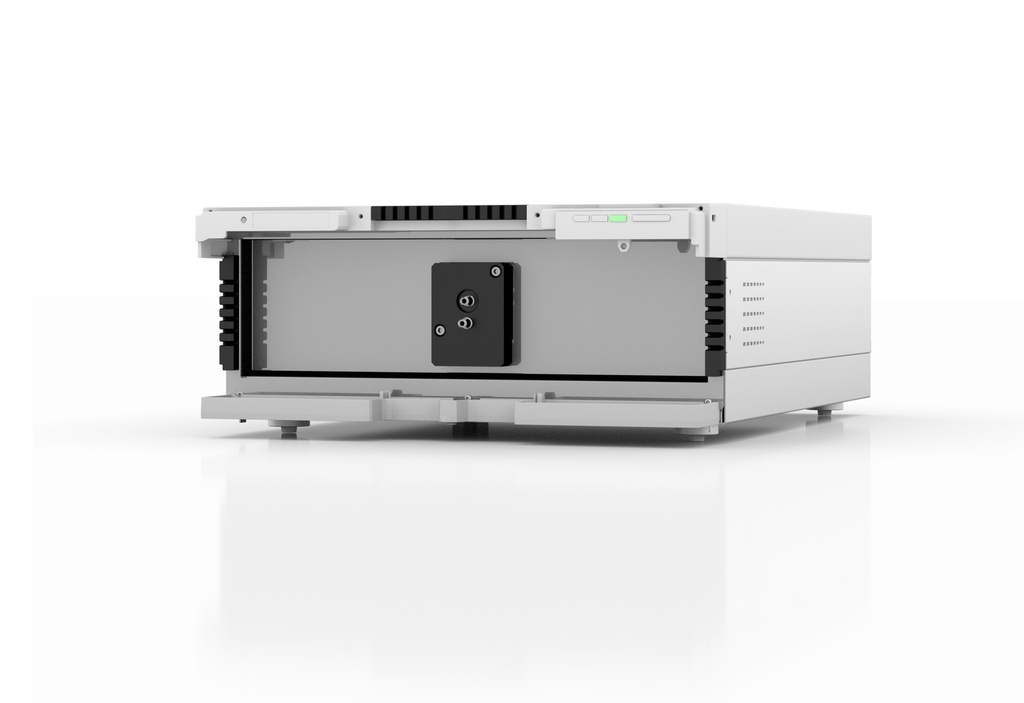

AZURA® UVD 2.1L UV/VIS Detector - Fiber Optics Version
without Test and Flow Cell, without Fiber Optic Cables, 190-750 nm
The KNAUER AZURA® UVD 2.1L UV/VIS Detector Fiber Optics Version is a competitively priced HPLC spectrophotometer designed for routine HPLC applications, including fast LC methods. It is equipped with a deuterium lamp that covers a wavelength range from 190 to 750 nm. This robust detector not only offers excellent technical specifications but also features a highly flexible and compact design.
This fiber optics version of the detector allows for the spatial separation of the flow cell from the device, thus offering enhanced safety for hazardous, explosive or toxic work processes. The flow cell is easily accessible, enabling quick change when necessary. Users can choose from a wide range of flow cells with either bio-inert or stainless-steel wetted parts, suitable for both analytical and preparative LC applications, with flow rates ranging from 10 μl/min to 10 l/min.
The UVD 2.1L can be controlled using ClarityChrom®, OpenLAB®, Chromeleon™, ChromGate® and PurityChrom® software, as well as Mobile Control software for stand-alone operation. Control can be achieved via LAN or through analog input/output, allowing for seamless integration into almost any LC system.
This fiber optics version of the detector allows for the spatial separation of the flow cell from the device, thus offering enhanced safety for hazardous, explosive or toxic work processes. The flow cell is easily accessible, enabling quick change when necessary. Users can choose from a wide range of flow cells with either bio-inert or stainless-steel wetted parts, suitable for both analytical and preparative LC applications, with flow rates ranging from 10 μl/min to 10 l/min.
The UVD 2.1L can be controlled using ClarityChrom®, OpenLAB®, Chromeleon™, ChromGate® and PurityChrom® software, as well as Mobile Control software for stand-alone operation. Control can be achieved via LAN or through analog input/output, allowing for seamless integration into almost any LC system.
Internal Reference:
ADA04XA
Technical Data
| General | |
|---|---|
| Detector Type | Variable single wavelength UV detector |
| Detector Version | With fiber optic connectors |
| Detection Channels | 1 |
| Wavelength Range | 190-750 nm |
| Light Source | Deuterium (D₂) lamp with integrated GLP chip |
| Flow Cell | Not included, Fiber optic cables are not included |
| Display | Mobile Control (optional) |
| Specifications | |
|---|---|
| Wavelength Accuracy | ± 2.5 nm |
| Wavelength Precision | 0.3 nm (ASTM E275-93) |
| Features | |
|---|---|
| Leak Sensor | Yes |
| GLP Report | Lamp recognition, Operating hours, Light source operating hours, Number of lamp ignitions |
| Specification - Detection | |
|---|---|
| Spectral Bandwidth | 11 nm at Hα line (FWHM) |
| Baseline Noise Level (Test Cell, 254 nm, ASTM E1657-98) | ± 20 µAU |
| Drift (254 nm, ASTM E1657-98) | 400 µAU/h |
| Linearity (274 nm, ASTM E1657-98) | > 2.0 AU |
| Max. Data Rate | 50 Hz (LAN) / 20 Hz (analog) |
| Time Constants | 0.1 / 0.2 / 0.5 / 1.0 / 2.0 / 5.0 / 10.0 s |
| Integration Time | Automatic |
