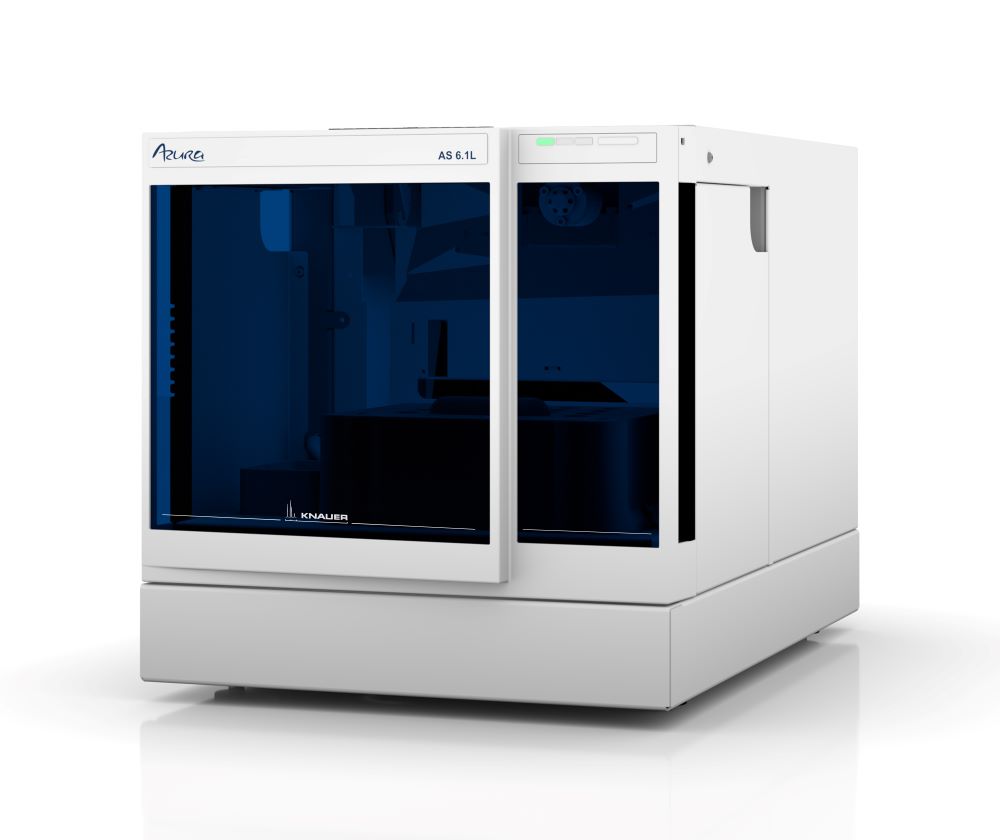

AZURA® AS 6.1L analytical Autosampler up to 862 bar, with cool/heat option

https://store.knauer.net/web/image/product.template/62902/image_1920?unique=3a15020

This analytical HPLC autosampler enables highly precise and reproducible injections from up to  108 × 1.5 ml sample vials or standard  microtiter plates (96‑ or 384‑well plates, up to two plates each). The autosampler provides the user with maximum flexibility while ensuring efficient sample consumption through three different injection modes:

  • Full-loop - highest precision and reproducibility
  • Partial-loop - variable injection volumes, ideal for dilution series
  • µl-pickup - loss‑free injection of extremely small sample volumes
For high‑pressure applications, the autosampler is equipped with an  ILD™ valve (Intermediate Loop Decompression). This rotor-stator valve design features a central port that depressurizes the system before the sample is aspirated into the loop. Hence, the sample is not diluted with solvent, leading to improved injection accuracy and reproducibility. The extremely fast valve switching minimizes pressure spikes, enhancing analytical performance while reducing mechanical stress and wear on the column. In addition, the AS 6.1L supports precolumn derivatization and achieves minimal carryover through a highly effective inside and outside needle wash procedure.


Sample stability and reproducibility are maximized with the cool/heat option, which maintains the sample compartment at a defined temperature between 4 and 40 °C.

  • Application Area
  • Application Area
  • Injector Type
  • Max. Pressure
  • Sample Capacity
  • Sample Capacity
  • Sample Tray Cooling
  • Biocompatible
  • Carryover

This combination does not exist.

Contact Us

Terms and Conditions
Images may differ from the actual product.

Share

Internal Reference: AAA51AA

Technical Data

General
Application Area Analytical LC, (U)HPLC
Injector Type Pulled-loop
Sample Capacity 108 × 1.5 ml vials, 2 × microtiter plates
Sample Tray Cooling 4-40 °C
Specifications
Max. Pressure 862 bar
Carryover < 0.01% (standard conditions)
GMP Relevant
Biocompatible No
