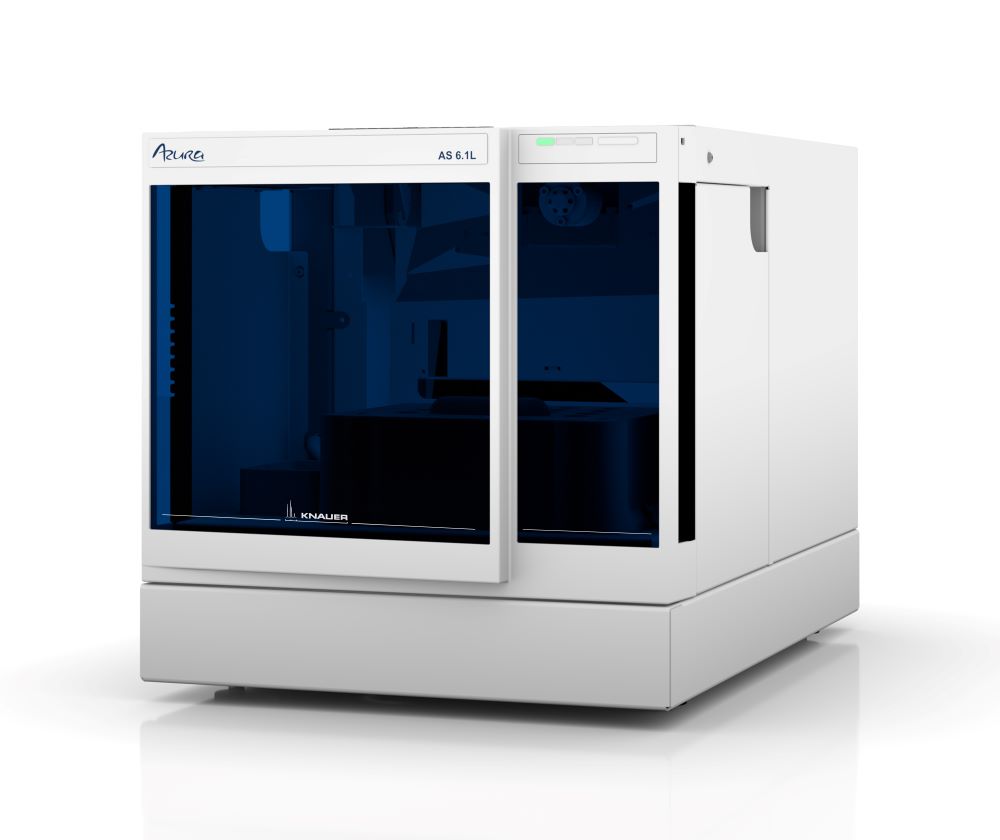

AZURA® AS 6.1L analytical Autosampler up to 862 bar, without cool/heat option
The analytical AS 6.1L enables highly precise and reproducible injections from up to 108 × 1.5 ml sample vials or standard microtiter plates (96‑ or 384‑well plates, up to two plates each). Maximum flexibility and efficient sample comsumption are ensured through three different injection modes:
- Full loop - highest precision and reproducibility
- Partial loop - variable injection volumes, ideal for dilution series
- µl Pickup - loss‑free injection of extremely small sample volumes
For high‑pressure
applications, the autosampler is equipped with an ILD™ valve (Intermediate
Loop Decompression). This rotor-stator valve design features a central port
that depressurizes the system before the sample is aspirated into the loop. Hence, the sample is not diluted with solvent, leading to improved injection
accuracy and reproducibility. The extremely fast valve switching minimizes pressure
spikes, enhancing analytical performance while reducing mechanical stress and
wear on the column. In
addition, the AS 6.1L supports precolumn derivatization and
achieves exceptionally low carryover through a highly effective inside
and outside needle wash procedure.
Internal Reference:
AAA50AA
Technical Data
| General | |
|---|---|
| Application Area | Analytical LC, (U)HPLC |
| Injector Type | Pulled-loop |
| Sample Capacity | 108 × 1.5 ml vials, 2 × microtiter plates |
| Injection Volume Range | 0.1 µl - 5 ml (depending on sample loop) |
| Sample Tray Cooling | No |
| Specifications | |
|---|---|
| Max. Pressure | 862 bar |
| Injection Precision (RSD) | Full loop: < 0.3 %, Partial loop (> 5 µl): < 0.5 %, µl Pickup (> 5 µl): < 1.0 % |
| Carryover | < 0.01 % (standard conditions), < 0.0015 % (partial loop, chlorhexidine), < 0,0003 % (extended washing, s. VTN0004) |
| GMP Relevant | |
|---|---|
| Biocompatible | No |
