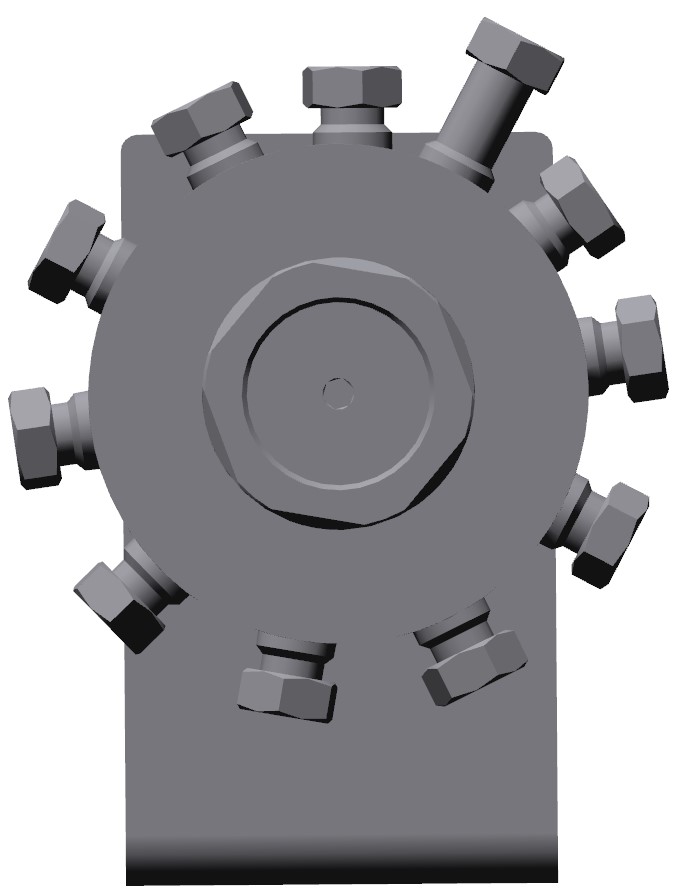

VICI/VALCO Dead-end Selector 10MPos, 1/4" connectors, stainless steel, no standoff
Automated valve for applications like column, eluent or sample selection and fraction collection. Nitronic 60 stator and Valcon E rotor seal.
This valve is used in combination with the electrical VICI actuator. Multiposition valves are ubiquitous in HPLC and UHPLC applications. They act like a switch and can control the flow path of the chromatography system in various ways. The stator of this automated multiposition valve is made of Nitronic 60. In combination with a Valcon E rotor seal the valve offers high durability and a pressure resistance of up to 6,8 bar. This valve is best suited for preparative applications and has 10 ports.
Internal Reference:
A5850
Technical Data
| General | |
|---|---|
| Valve Function | Column selection or Eluent selection or Fraction collection or Sample selection |
| Valve Model | VICI |
| Operated | Electrical by Vici actuator |
| Valve Drive | Included |
| Valve Material | Stainless steel (SST) |
| Specifications | |
|---|---|
| Valve Port Number | 10 |
| Valve Positions | Multiposition |
| Valve Capillary Connection | 1/4" |
| Valve Max. Pressure | 6.8 bar |
| GMP Relevant | |
|---|---|
| Stator Material | Nitronic 60 (SST) |
| Rotor Material | Valcon |
| Form & Fit | |
|---|---|
| Bore Size | 4.0 mm |
| Thread | UNF 7/16-20 |
