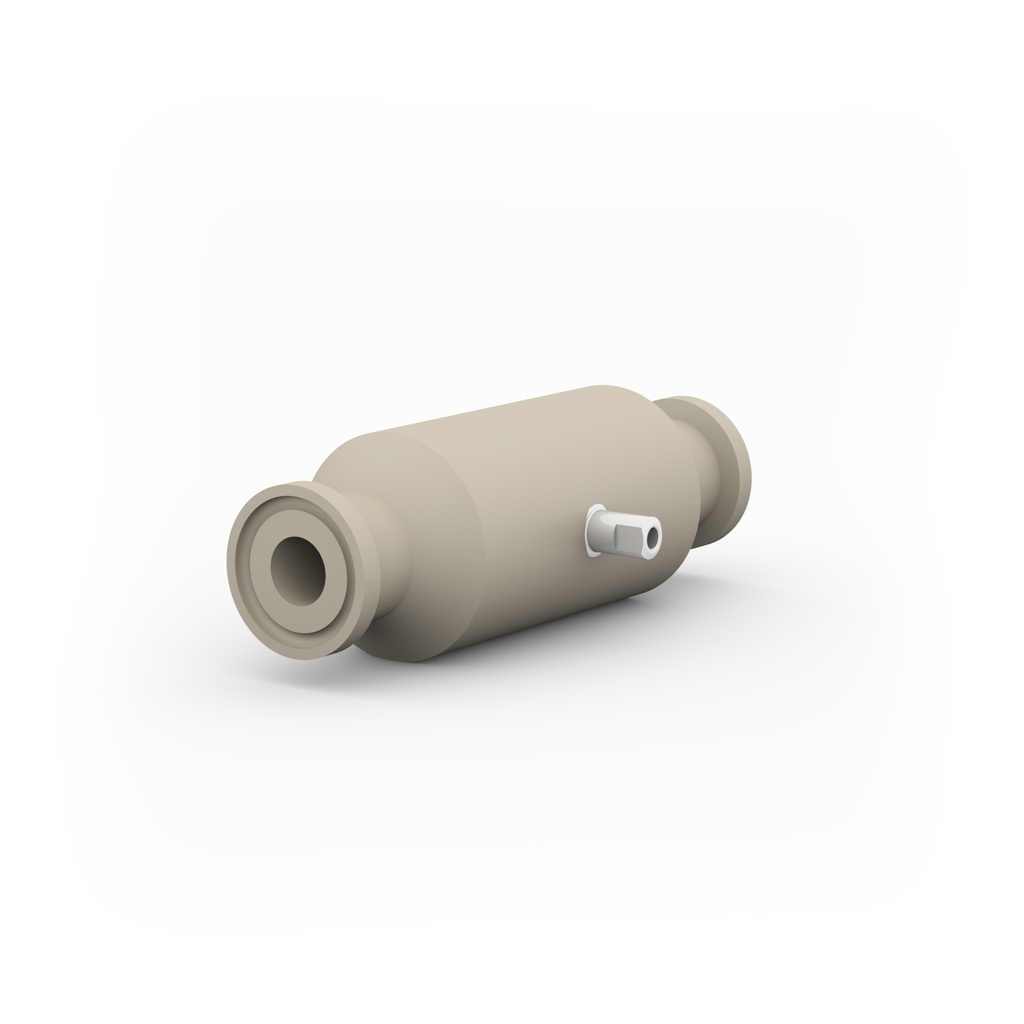

UV Flow Cell, Preparative, Fiber Optics, 7 mm, PEEK, 3/8" TriClamp, 10 bar, up to 10000 ml/min
This bioinert preparative UV flow cell is optimized for high flow applications.
This flow cell is compatible with the KNAUER fiber optic version detectors AZURA® UVD 2.1S, UVD 2.1L and BlueShadow 40D, but can be also used with the AZURA DAD 6.1L, DAD 2.1L, and MWD 2.1L detectors together with the Fiber Optics Adapter Kit AMKX8KIT.
This flow cell is compatible with the KNAUER fiber optic version detectors AZURA® UVD 2.1S, UVD 2.1L and BlueShadow 40D, but can be also used with the AZURA DAD 6.1L, DAD 2.1L, and MWD 2.1L detectors together with the Fiber Optics Adapter Kit AMKX8KIT.
Internal Reference:
A4152-1
Technical Data
| General | |
|---|---|
| Flow Cell Type | Preparative UV flow cell |
| Optical Path Length | 7 mm |
| Flow Cell Max. Pressure | 10 bar, 145 psi |
| Compatible With Detector | VWD 2.1L - Fiber Optics, UVD 2.1L - Fiber Optics, UVD 2.1S - Fiber Optics, 40D - Fiber Optics |
| Specifications | |
|---|---|
| Fiber Optics Version | Yes |
| Max. Flow Rate | 10 000 ml/min |
| GMP Relevant | |
|---|---|
| Biocompatible | Yes |
| Wetted Materials | PEEK, Quartz (SUPRASIL), PTFE (Teflon) |
| Form & Fit | |
|---|---|
| Flow Cell Capillary Connection | 3/8'' (TRI-Clamp) |
