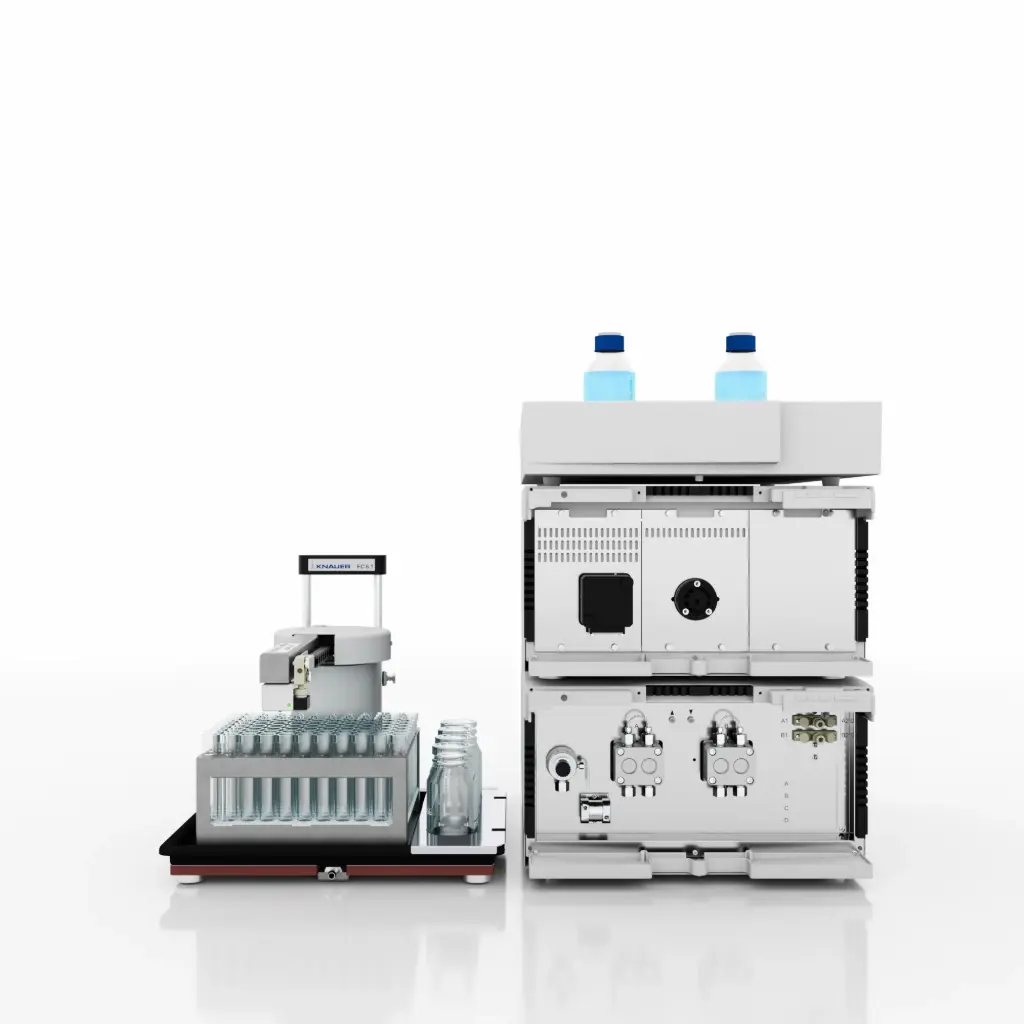

AZURA Prep HPLC Lab System
The AZURA Lab Prep HPLC is a flexible gradient LC System for purifications ranging from small molecules to peptides or oligonucleotides.
It is designed and optimized for Lab scale purifications. All system modules can be freely exchanged and further modules can be added optionally, to give you the best configuration for your purification task.
Key Features
- Flow rate: 0.001 - 50 ml/min; 0.1 - 40 ml/min (recommended)
- Max Pressure: 200 bar (20.0 MPa)
- Sample Application via Loop
- One UV Channel (190 - 500 nm)
- Fraction Collector
Optional Products:
- Sample Pump
- Column Selection Valve
- Eluent and/or column heater
Application using this Product:
Need a different system configuration? No problem.
Thanks to the modular design of the AZURA® platform, upgrades and custom configurations are easy to implement. Just contact us — we’re happy to help you define the perfect system tailored to your specific needs.
Internal Reference:
842 300 100 000 706
Technical Data
| System Configuration | |
|---|---|
| Eluent Delivery | Binary HPG |
| Sample Injection | Multi-injection valve |
| Detection | Variable single-wavelength detection UV/VIS |
| Fraction Collection | Fraction collector |
| System Components | |
|---|---|
| Pump | P 6.1L |
| Injector | VU 4.1 |
| Detector | UVD 2.1S |
| Collector | FC 6.1 |
| Chromatography Software CDS | PurityChrom 6 |
| General | |
|---|---|
| Pump Max. Pressure | 300 bar |
| Pump Max. Flow Rate | 50 ml/min |
| Wavelength Range | 190-500 nm |
