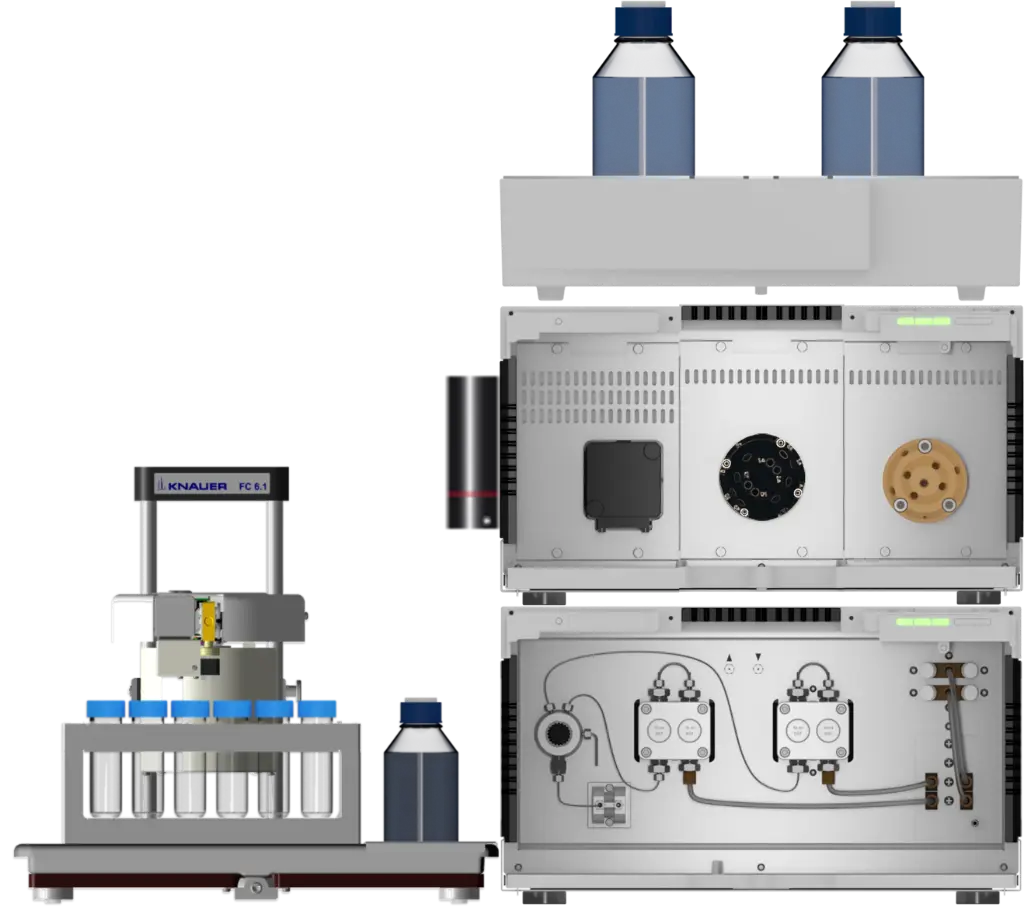

AZURA BIO Lab Basic System
50 ml/min, 200 bar
The AZURA Bio Lab System is a gradient system for complex purifications of bio molecules in a laboratory scale. It is designed and optimized for all FPLC applications like affinity, ion exchange, hydrophobic interaction and size exclusion chromatography. All system modules can be freely exchanged and further modules can be added optionally, to give you the best configuration for your purification task.
Key features
- Flow rate: 0.001 - 50 ml/min; 0.1 - 40 ml/min (recommended)
- Max Pressure: 200 bar (20.0 MPa)
- Sample Application via Loop
- Column Selection Valve for switching between 7 columns including reverse flow option
- Variable UV Detector
- Conductivity Measurement
- Column compatibility: works with all columns on the market
- Material: All wetted parts are made of biocompatible materials
- Software: Intuitive PurityChrom® software
Optimize your FPLC workflows today with the AZURA® Bio Lab System – where precision meets simplicity.
Need a different system configuration? No problem.
Thanks to the modular design of the AZURA® platform, upgrades and custom configurations are easy to implement. Just contact us — we’re happy to help you define the perfect system tailored to your specific needs.
Internal Reference:
742 300 100 030 706
Technical Data
| General | |
|---|---|
| Pump Max. Pressure | 200 bar |
| Pump Max. Flow Rate | 50 ml/min |
| Wavelength Range | 190-500 nm |
| System Components | |
|---|---|
| Pump | P 6.1L |
| Injector | VU 4.1 |
| Detector | UVD 2.1S |
| Collector | FC 6.1 |
| Chromatography Software CDS | PurityChrom 6 |
| System Configuration | |
|---|---|
| Eluent Delivery | Binary HPG |
| Sample Injection | Multi-injection valve |
| Detection | Variable single-wavelength detection UV/VIS |
| Fraction Collection | Fraction collector |
Find product specifications here
