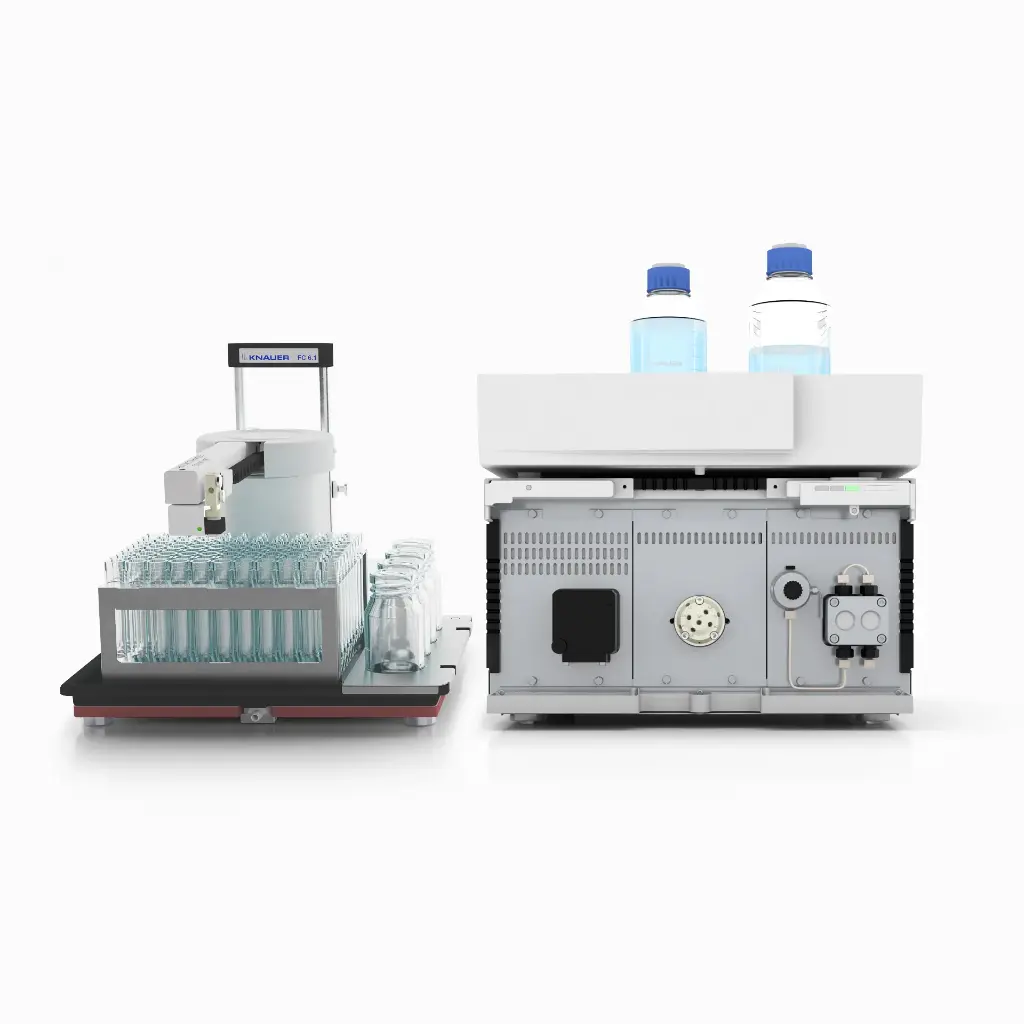

AZURA BIO Compact SEC System
Size Exclusion Chromatography at up to 10 ml/min, 50 bar
Experience high-performance size exclusion chromatography (SEC) with the AZURA® Bio Compact SEC System – the perfect solution for SEC workflows in research, development, or routine analysis. This compact, modular system delivers robust, reliable results with ease.
System Components:
- High-precision ceramic pump with low pulsation for consistent flow rates
- Variable single wavelength UV detector
- Injection valve with sample loop
- PurityChrom® software for intuitive control and real-time monitoring
- Fraction collector with 2 ml rack support, ideal for preparative applications
Key features:
- Flow Rate: 0.001–10 ml/min
- Max Pressure: 50 bar (5.0 MPa)
- Sample loop: 500 µl
- One UV channel (190–500 nm)
- Column compatibility: works with all SEC columns on the market
- Material: All wetted parts are made of biocompatible materials
- Software: Intuitive PurityChrom® software
Optimize your SEC workflows today with the AZURA® Bio Compact SEC System – where precision meets simplicity.
Need a different system configuration? No problem.
Thanks to the modular design of the AZURA® platform, upgrades and custom configurations are easy to implement. Just contact us — we’re happy to help you define the perfect system tailored to your specific needs.
Internal Reference:
720 300 100 000 706
Technical Data
| Eluent delivery | P 4.1S |
| Sample Injection | Multiinjection Valve |
| Detection | UVD 2.1S |
| Chromatography Software CDS | PurityChrom |
| Fraction Collection | FC 6.1 |
