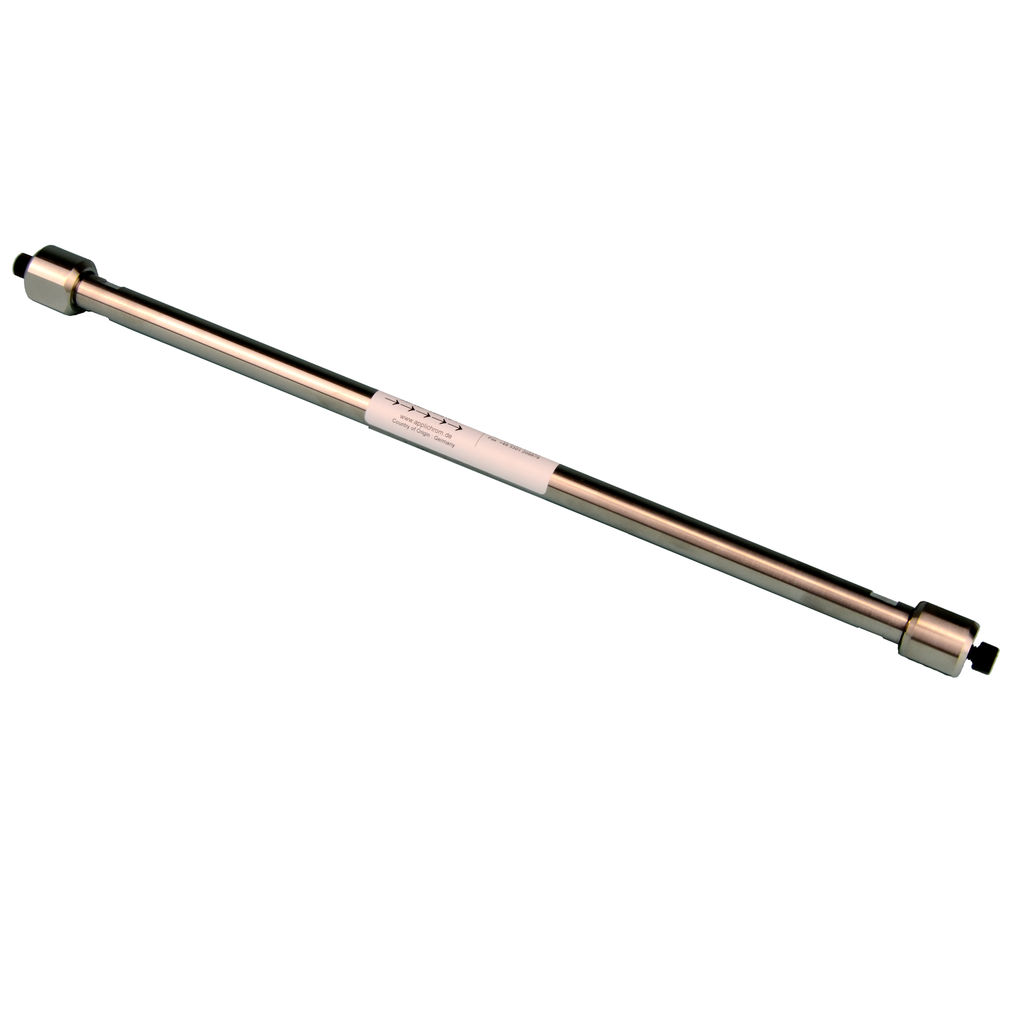

AppliChrom DMAc-Phil-P-250, GPC column, 250 Å, 12 µm, 50 x 8 mm, separation range 100-70 000 Da
Excellent reproducibility and resolution for slightly polar analytes and all DMF and DMAc soluble polymers.
GPC columns for GPC analysis of organic molecules with DMF and DMAc soluble polymers.
Organic polymer base material with high porosity for high resolution
Properties
High pressure stability up to 150 bar and ideal measuring temperature between 30-145 °C. Low column bleed for low detector noise and highest reproducibility.
Key features
High purity polymer phase to eliminate adsorptive effects and combine pure GPC with long lifetime. Large calibration ranges for several decades due to the unique process of BPT technology. Range of individual porosities that can be used individually or in combination.
Recommended eluents
DMAc, DMF, NMP, LiBr additive
Recommended application areas
Slightly polar analytes like PMMA, polyacryl nitril (PAN), acrylnitrile
butadiene styrene (ABS), cellulose, and all DMF
and DMAc soluble polymers
Internal Reference:
05GJ47DABQ
Technical Data
| General | |
|---|---|
| Brand | AppliChrom® DMAc-Phil |
| Units per Package | 1 |
| Includes | Column |
| Separation Mode | GPC (Gel Permeation Chromatography) |
| Column Base Material | Organic polymer base material with high porosity |
| Endcapping | No |
| Column Separation Range | 100-70 000 Da |
| Capillary & Tubing Connection | 1/16" |
| Specifications | |
|---|---|
| Column Length | 50 mm |
| Column Inner Diameter | 8 mm |
| Column Particle Size | 10 µm |
| Column Pore Size | 250 Å |
| Max. Pressure | 150 bar |
| Eluent Recommendation | DMAc, DMF, NMP, LiBr additive |
| Temperature Range | 35-145 °C |
| GMP Relevant | |
|---|---|
| Housing Material | Stainless steel |
