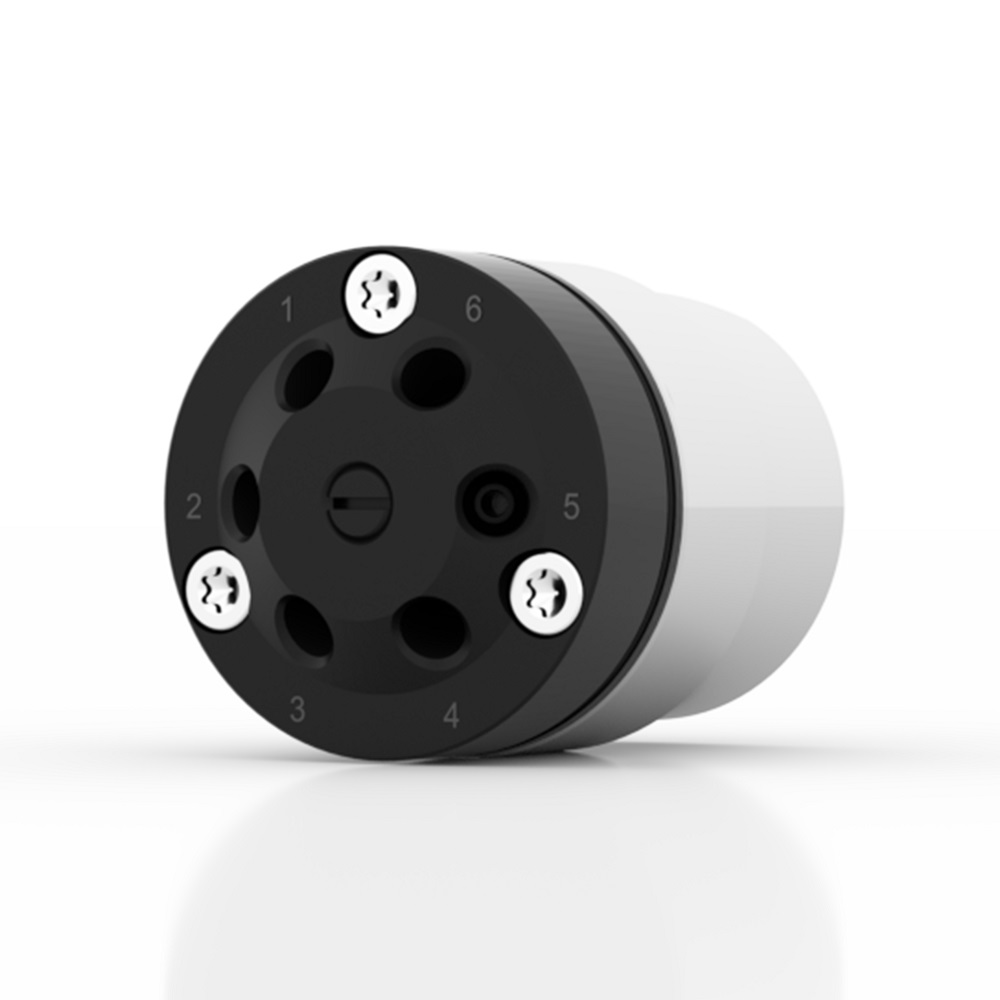

AZURA® V 4.1 Valve, 6Port 2Pos w/o drive, 100 bar, 1/8" 1/4-28 UNF coned, 2 mm bore size, PEEK/PEEK

AZURA® V 4.1 Valve, 6Port 2Pos w/o drive, 100 bar, 1/8" 1/4-28 UNF coned, 2 mm bore size, PEEK/PEEK

https://store.knauer.net/web/image/product.template/63328/image_1920?unique=0ee26a0

Biocompatible valve for preparative applications like sample injection or column selection. PEEK HPV stator and PEEK TX rotor seal.

This valve is used in combination with the VU 4.1 valve unifier. The stator of this injection valve is made of PEEK HPV. In combination with a PEEK TX rotor seal the valve offers high durability and a pressure resistance of up to 100 bar.

  • Valve Function
  • Valve Model
  • Operated
  • Valve Drive
  • Valve Material
  • Valve Port Number
  • Valve Positions
  • Valve Capillary Connection
  • Valve Max. Pressure
  • Bore Size
  • Stator Material
  • Rotor Material
  • Thread

This combination does not exist.

Contact Us

Terms and Conditions
Images may differ from the actual product.

Share

Internal Reference: AVF23CE

Technical Data

General
Valve Function Column selection or Injection
Valve Model V 4.1
Operated Electrical by VU 4.1
Valve Drive Not included
Valve Material Biocompatible
Specifications
Valve Port Number 6
Valve Positions 2
Valve Capillary Connection 1/8"
Valve Max. Pressure 100 bar
GMP Relevant
Stator Material PEEK
Rotor Material PEEK
Form & Fit
Bore Size 2.0 mm
Thread UNF 1/4-28
