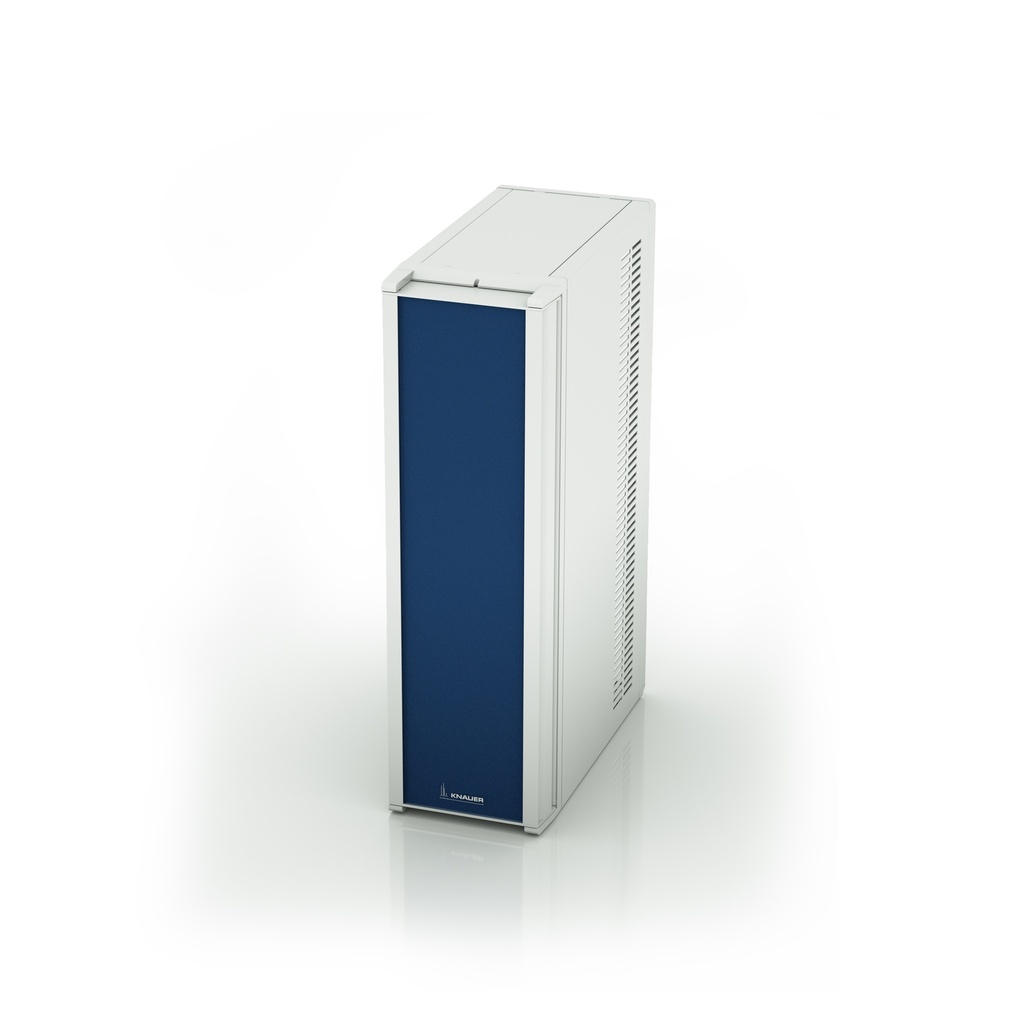

AZURA® CT 2.1 Column Thermostat for up to 8 HPLC columns with temperature range between 5-85°C
Suitable for analytical and semipreparative columns up to ID 8 mm. In special cases ID 16 mm is possible.
The AZURA® CT 2.1 is a price attractive basic column thermostat. It allows temperature control in the range of 5 to 85 °C and thus is appropriate for most HPLC applications. For advanced purification and analysis purposes, the oven can optionally be equipped with an eluent pre-heating cartridge. This ensures even more constant separation conditions leading to higher selectivity and an improved peak shape. The instrument operates with a microprocessor controlled Peltier element for precise temperature settings. In combination with its high temperature stability, this allows programming of linear as well as non-linear temperature gradients.
Internal Reference:
ATC00
Technical Data
| Specifications | |
|---|---|
| Temperature Range | 5-85 °C |
| Heating/Cooling Rate | 2 °C / min |
| Temperature Accuracy | +/- 0.2 °C |
| Temperature Stability | ± 0.1 °C |
| Number of Heatable Columns | 1 column in 300 x 16 mm, 4 columns in 300 x 4.6 mm, 8 columns in 125 x 4.6 mm |
| Internal Dimensions | 90 x 390 x 47 mm (B x H x T) |
| Features | |
|---|---|
| Safety | Self-check and auto-calibration at power-on, Selectable turn-off temperature |
| Leak Sensor | Adjustable sensitivity, Gas sensor, Acoustic signal, Turn-off switch |
Find product specifications here
