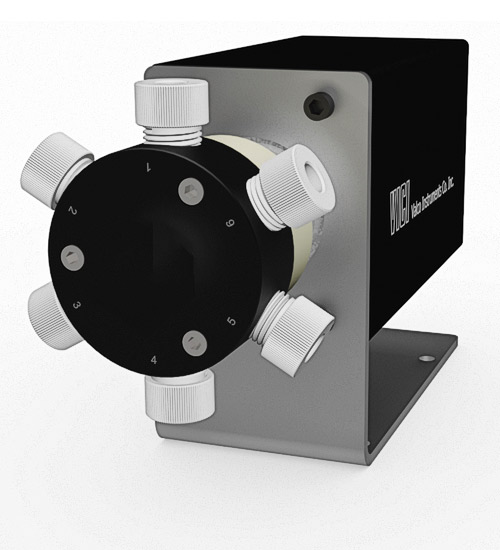

VICI/VALCO 6port 2pos valve PAEK/Valcon E2, 6.8 bar for 1/4" tubing, incl. actuator & 1/2"-20 fittings, RS232
Automated valve for preparative applications like sample injection or column selection. PAEK stator and Valcon E2 rotor seal.
This valve is controlled electrical by VICI actuator. The stator of this injection valve is made of PAEK. In combination with a Valcon E2 rotor seal the valve offers high durability and a pressure resistance of up to 6,8 bar.
Internal Reference:
A5859
Technical Data
| General | |
|---|---|
| Valve Function | Injection, Column selection |
| Valve Model | VICI |
| Operated | Electrical by Vici actuator |
| Valve Drive | Included |
| Valve Material | Biocompatible |
| Specifications | |
|---|---|
| Valve Port Number | 6 |
| Valve Positions | 2 |
| Valve Capillary Connection | 1/4" |
| Valve Max. Pressure | 6.8 bar |
| GMP Relevant | |
|---|---|
| Stator Material | PEEK |
| Rotor Material | Valcon |
| Form & Fit | |
|---|---|
| Bore Size | 3.2 mm |
| Thread | UNF 1/2"-20 |
