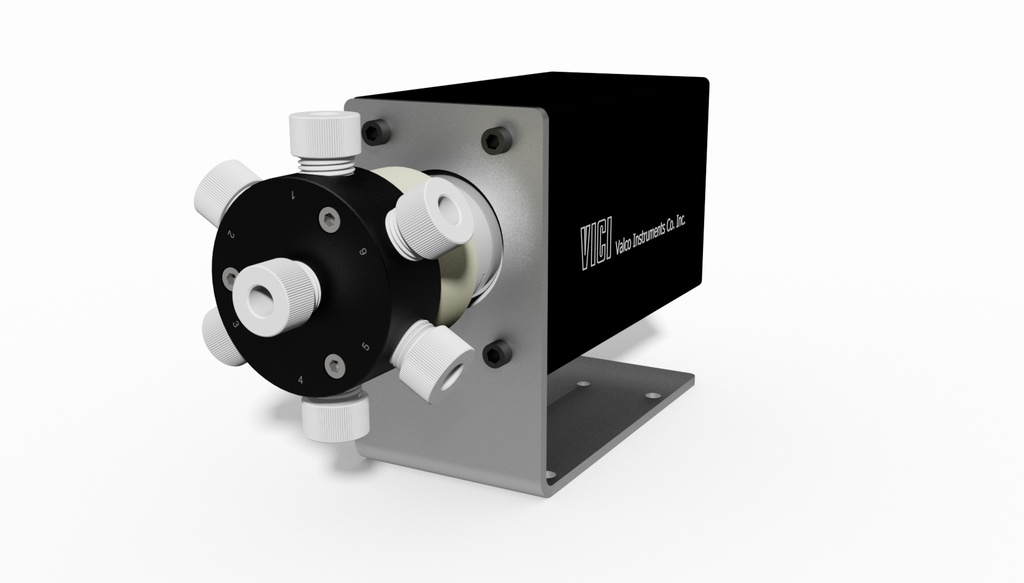

VICI/VALCO Selector with actuator, 6Pos, 6.8 bar PEAK, 1/4", Valcon E2 seal 3,9 mm bore size incl. 10m tubing (1/4", PTFE) 7x nuts, 7x ferrules
Automated valve for applications like column, eluent or sample selection and fraction collection. PEAK stator and Valcon E2 rotor seal.
This valve is used in combination with the electrical VICI actuator.Multiposition valves are ubiquitous in HPLC and UHPLC applications. They act like a switch and can control the flow path of the chromatography system in various ways. The stator of this automated multiposition valve is made of PEAK. In combination with a Valcon E2 rotor seal the valve offers high durability and a pressure resistance of up to 6,8 bar. This valve is best suited for preparative applications and has 6 ports. The valve comes with actuator and fittings.
Internal Reference:
A5854
Technical Data
| General | |
|---|---|
| Valve Function | Column selection, Fraction collection, Eluent selection, Sample selection |
| Valve Model | VICI |
| Operated | Electrical by Vici actuator |
| Valve Drive | Included |
| Valve Material | Biocompatible |
| Specifications | |
|---|---|
| Valve Port Number | 6 |
| Valve Positions | 2 |
| Valve Capillary Connection | 1/4" |
| Valve Max. Pressure | 6.8 bar |
| GMP Relevant | |
|---|---|
| Stator Material | PAEK |
| Rotor Material | Valcon |
| Form & Fit | |
|---|---|
| Bore Size | 3.9 mm |
| Thread | UNF 1/2"-20 |
Find product specifications here
Instruments, components and services for (U)HPLC, Prep-LC, FPLC and Osmometry.
