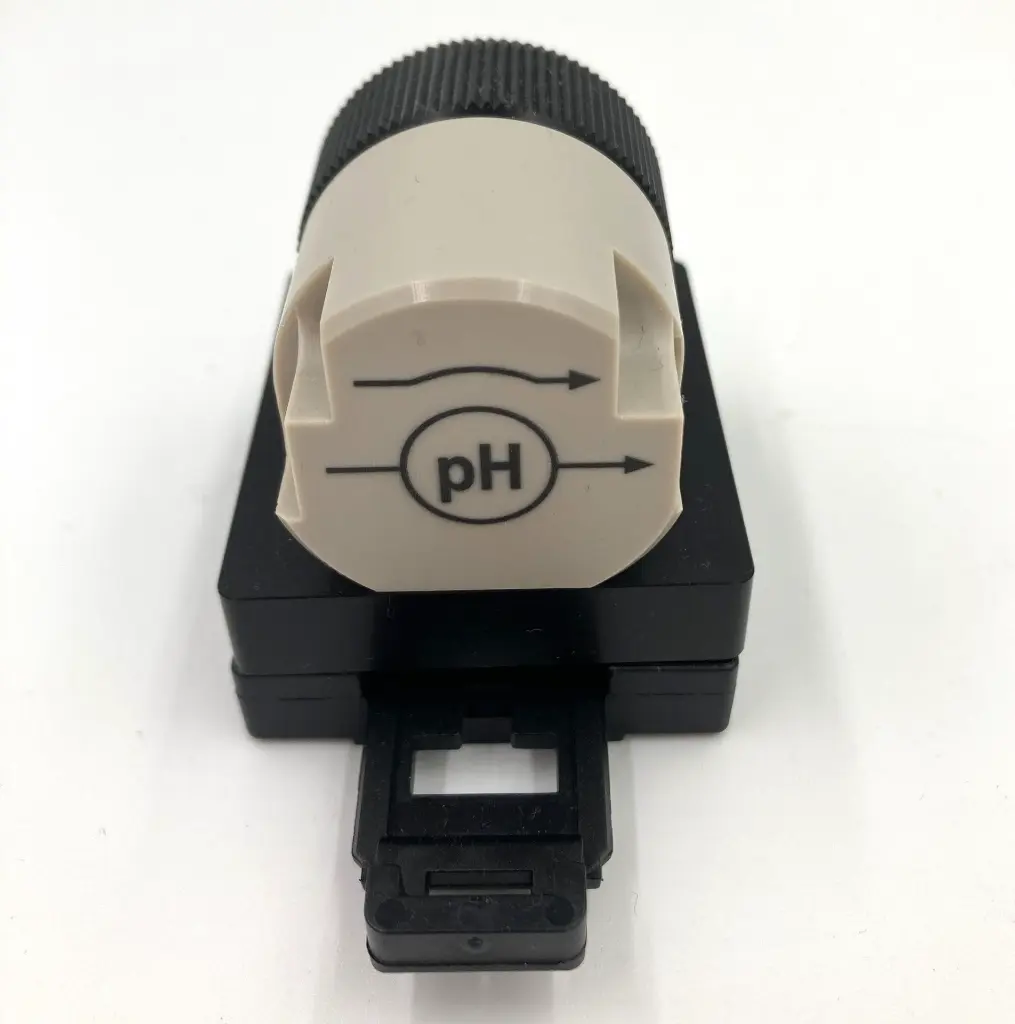

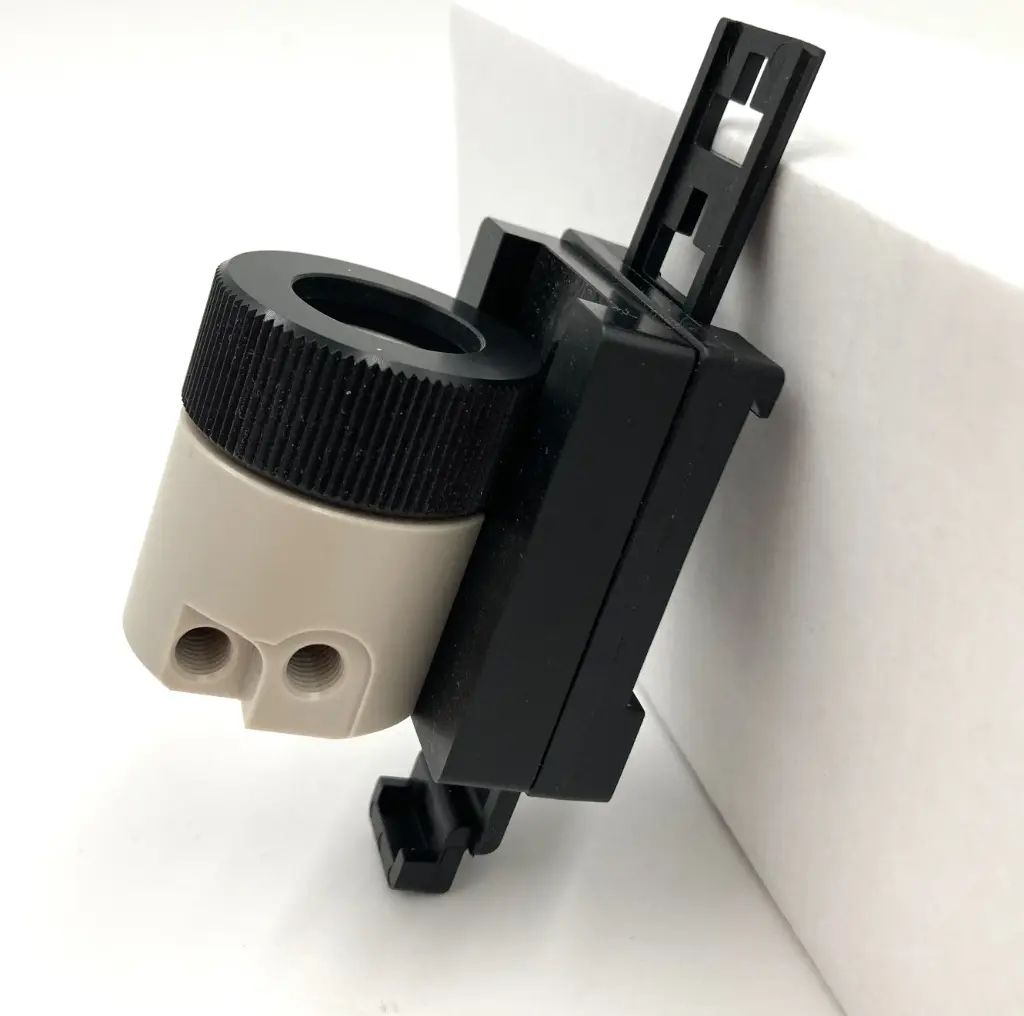

AZURA pH flow cell, 1000 ml/min
with 5/16-24" UNF FB fittings for 1/8" & 3/16" OD tubing and blind fittings
The AZURA pH flow cells can be equipped with a KNAUER pH electrode connected to a pH measuring device such as VWD 2.1L, CM 2.1S, or pH 2.1S to monitor pH during the purification process.
This flow cell can be mounted on the side of an AZURA L device by using an AZURA Click rail or a SmartClick system.
Internal Reference:
A1946
Technical Data
| General | |
|---|---|
| Flow Cell Type | pH flow cell |
| Flow Cell (Internal) Volume | ~250 µl (with inserted pH electrode) |
| Compatible With Detector | VWD 2.1L, CM 2.1S, pH 2.1S |
| Specifications | |
|---|---|
| Max. Flow Rate | 1000 ml/min |
| GMP Relevant | |
|---|---|
| Biocompatible | Yes |
| Wetted Materials | PEEK, FFKM |
| Form & Fit | |
|---|---|
| Flow Cell Capillary Connection | 1/8'', 3/16" |
