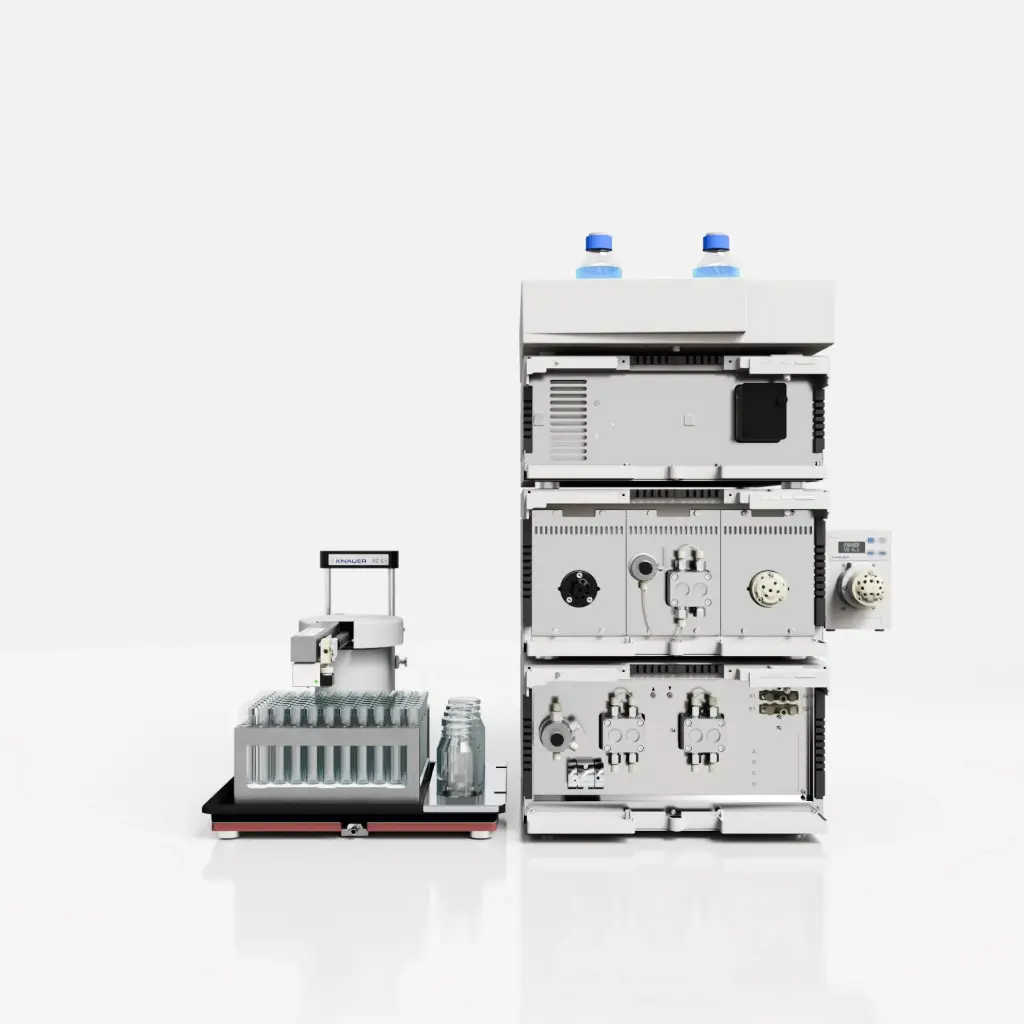

AZURA BIO Lab Advanced System
50 ml/min, 200 bar
The AZURA Bio Lab Advanced System is a gradient system for complex purifications of bio molecules in a laboratory scale. It is designed and optimized for all FPLC applications like affinity, ion exchange, hydrophobic interaction and size exclusion chromatography. All system modules can be freely exchanged and further modules can be added optionally, to give you the best configuration for your purification task.
Key features
- Flow rate: 0.001 - 50 ml/min; 0.1 - 40 ml/min (recommended)
- Max Pressure: 200 bar (20.0 MPa)
- Sample Application via Loop or via Sample Pump
- Column Selection Valve for switching between 7 columns including reverse flow option
- Variable UV Detector (190 - 900 nm)
- Simultaneous measurement of UV and conductivity
- optional pH surveillance of purification
- Outlet valve can be used to realize automated two step purification processes
- Column compatibility: works with all columns on the market
- Material: All wetted parts are made of biocompatible materials
- Software: Intuitive PurityChrom® software
Optimize your FPLC workflows today with the AZURA® Bio Lab System – where precision meets simplicity.
Need a different system configuration? No problem.
Thanks to the modular design of the AZURA® platform, upgrades and custom configurations are easy to implement. Just contact us — we’re happy to help you define the perfect system tailored to your specific needs.
Internal Reference:
742 400 300 030 406
Technical Data
| System Configuration | |
|---|---|
| Eluent Delivery | Binary HPG |
| Sample Injection | Multi-injection valve combined with sample pump |
| Detection | Combined UV/VIS and conductivity measurement |
| Fraction Collection | Fraction valve combined with fraction collector |
| System Components | |
|---|---|
| Pump | P 6.1L |
| Injector | P 4.1S, VU 4.1 |
| Detector | VWD 2.1L |
| Collector | FC 6.1, VU 4.1 |
| Chromatography Software CDS | PurityChrom 6 |
| General | |
|---|---|
| Pump Max. Pressure | 200 bar |
| Pump Max. Flow Rate | 50 ml/min |
| Wavelength Range | 190-900 nm |
