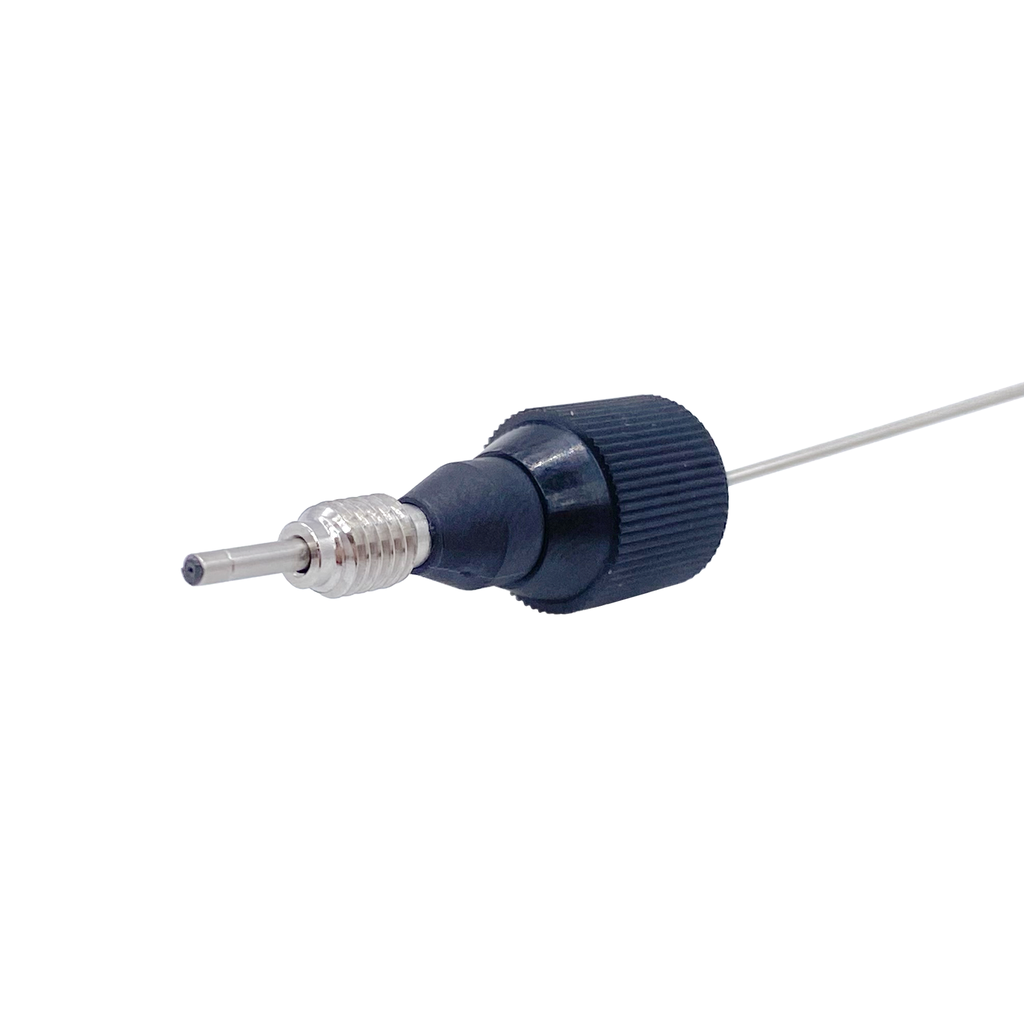

MarvelXACT™ SST capillary for 1/16", L=250mm, ID=0,1mm stainless steel, incl. Fingertight fittings

https://store.knauer.net/web/image/product.template/63788/image_1920?unique=1bd7dea

Recommended for UHPLC and ULDC

The MarvelXACTTM connection system is the trouble-free solution for all analytical HPLC connections with 10-32 coned receiving ports. It incorporates flexible 1/32” OD tubing for easy installation and is recommended for all connections in a standard AZURA Analytical system. The fitting is already installed on each capillary. It is compatible with KNAUER standard 1/16” receiving ports and is absolutely finger-tight so that no tools are required. Additionally, these fittings auto-adjust to various port depths and do not depend on ferrules. They seal at the bottom of the port, without complex techniques, which significantly reduces required torque.

The trouble-free connection system eliminates the risk of under- and over-tightening, with a patented torque-limiting mechanism. This unique feature provides a haptic “click” feedback when it reaches the optimum torque, assuring a perfect connection. These capillaries can be connected and disconnected more than 100 times.

160.00 € 160.0 EUR 160.00 € VAT Excluded

160.00 € VAT Excluded

Not Available For Sale

  • Capillary Material
  • Inner Diameter
  • Capillary Length
  • Capillary Connection
  • Thread
  • Maximum Pressure
  • Units per Package

This combination does not exist.

Terms and Conditions
Images may differ from the actual product.


Internal Reference: AZF102

Technical Data

General
Units per Package 1
Specifications
Capillary Material Stainless Steel
Inner Diameter 0.1 mm
Capillary Length 250 mm
Capillary Connection 1/16"
Thread UNF 10-32
Maximum Pressure 1200 bar
