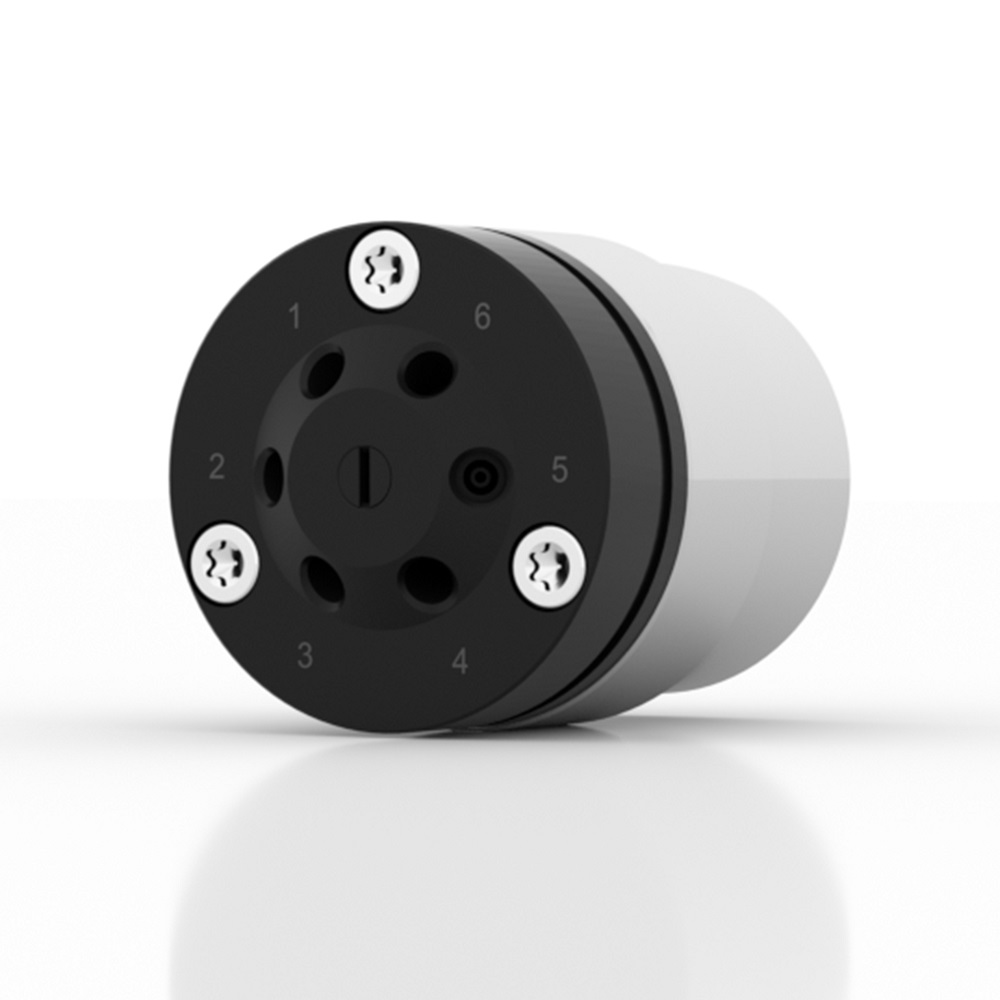

AZURA® V 4.1 Valve, 6Port 2Pos w/o drive, Break-free rotor seal, 500 bar, 1/16" 10-32 UNF, 0.75 mm bore, SSt-DLC/PEEK
Automated pressureless valve for column selection. DLC coated SSt stator and PEEK TX rotor seal.
This valve is used in combination with the VU 4.1 valve unifier.
The stator of this automated pressureless multiposition valve is made of stainless steel with a DLC coating (diamond-like carbon). In combination with a PEEK TX rotor seal the valve offers high durability and a pressure resistance of up to 300 bar.
This valve is best suited for preparative applications and has 6 ports. Due to the patented breakfree technology, truly pressure-less switching at any flow rate is possible. For the same reason, this valve is not suited as an injection valve.
Internal Reference:
AVD26AH
Technical Data
| General | |
|---|---|
| Valve Function | Column selection or Pressureless switching |
| Valve Model | V 4.1 |
| Operated | Electrical by VU 4.1 |
| Valve Drive | Not included |
| Valve Material | Stainless steel (SST) |
| Specifications | |
|---|---|
| Valve Port Number | 6 |
| Valve Positions | 2 |
| Valve Capillary Connection | 1/16" |
| Valve Max. Pressure | 500 bar |
| GMP Relevant | |
|---|---|
| Stator Material | Stainless steel-DLC |
| Rotor Material | PEEK |
| Form & Fit | |
|---|---|
| Bore Size | 0.75 mm |
| Thread | UNF 10-32 |
Find product specifications here
