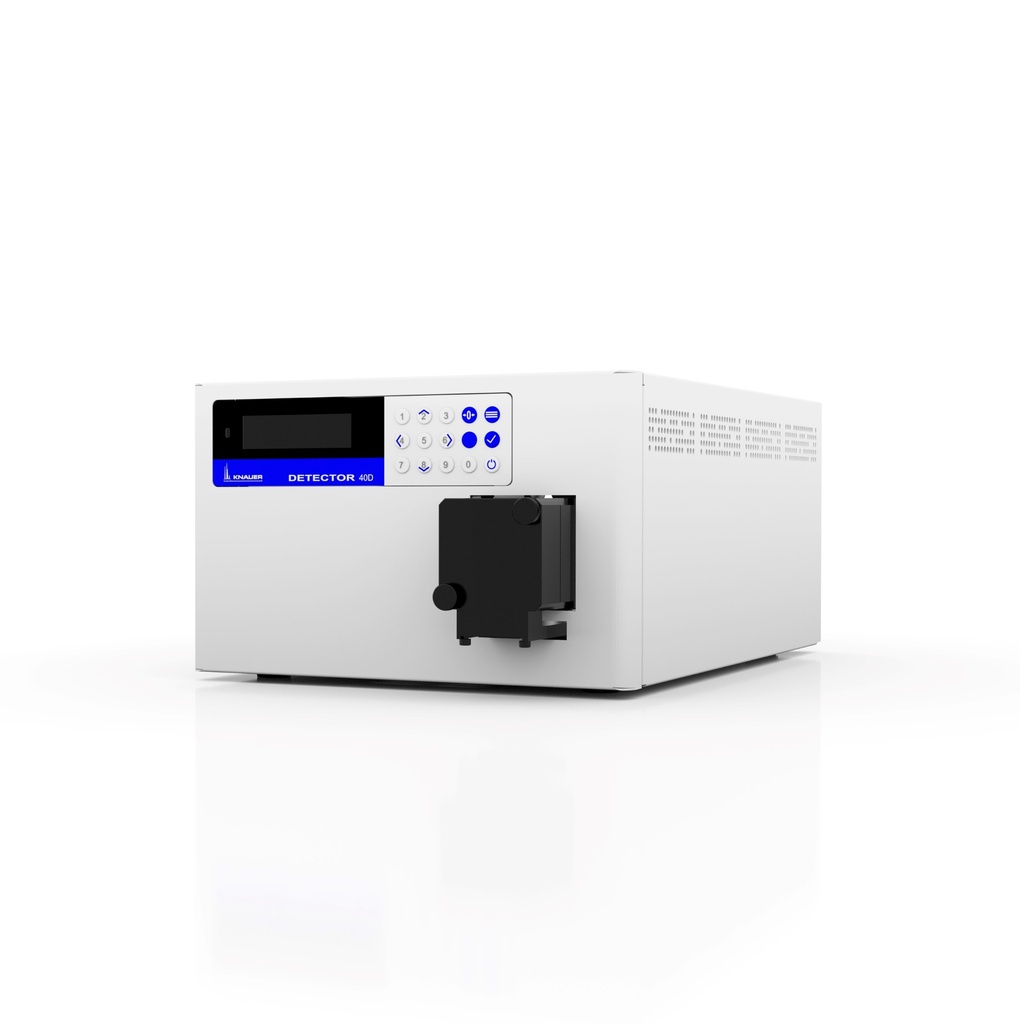

BlueShadow 40D UV/VIS Detector

BlueShadow 40D UV/VIS Detector

https://store.knauer.net/web/image/product.template/62954/image_1920?unique=4d55455

without Flow Cell, Test Cell and Accessories included, 190-750 nm

The KNAUER BlueShadow 40D UV/VIS Detector is a competitively priced HPLC spectrophotometer for routine HPLC applications, including fast LC methods. It is equipped with a deuterium lamp that covers a wavelength range from 190 to 750 nm. This robust detector not only offers excellent technical specifications but also features a highly flexible and compact design.

The smart design ensures that the flow cell is easily accessible and can be changed very quickly. Users can choose from a wide range of flow cells with either bio-inert or stainless-steel wetted parts, suitable for nearly any analytical and preparative LC applications, with flow rates ranging from 10 μl/min to 10 l/min.

The BlueShadow 40D can be operated using ClarityChrom®, and OpenLAB® software, or through its integrated display and keypad for stand-alone operation. It supports communication via LAN, RS-232, or through analog input/output, allowing for seamless integration into almost any LC system.


  • Detector Type
  • Detection Channels
  • Detection Channels
  • Wavelength Range
  • Spectral Bandwidth
  • Wavelength Accuracy
  • Wavelength Precision
  • Light Source
  • Baseline Noise Level (Test Cell, 254 nm, ASTM E1657-98)
  • Drift (254 nm, ASTM E1657-98)
  • Linearity (274 nm, ASTM E1657-98)
  • Max. Data Rate
  • Time Constants
  • Integration Time
  • Wavelength Verification
  • Leak Sensor
  • Flow Cell
  • GLP Report
  • GLP Report
  • GLP Report
  • GLP Report
  • Display

This combination does not exist.

Contact Us

Terms and Conditions
Images may differ from the actual product.

Share

Internal Reference: ADI01

Technical Data

General
Detector Type Variable single wavelength UV detector
Detection Channels 1 (Digital), 1
Wavelength Range 190-750 nm
Light Source Deuterium (D₂) lamp with integrated GLP chip
Flow Cell Not included
Display LCD Display with keypad
Specifications
Wavelength Accuracy ± 2.5 nm
Wavelength Precision 0.3 nm (ASTM E275-93)
Features
Wavelength Verification External holmium filter test cell
Leak Sensor No
GLP Report Lamp recognition, Operating hours, Light source operating hours, Number of lamp ignitions
Specification - Detection
Spectral Bandwidth 11 nm at Hα line (FWHM)
Baseline Noise Level (Test Cell, 254 nm, ASTM E1657-98) ± 15 µAU
Drift (254 nm, ASTM E1657-98) 300 µAU/h
Linearity (274 nm, ASTM E1657-98) > 2.0 AU
Max. Data Rate 50 Hz (LAN) / 20 Hz (analog) / 10 Hz (RS-232)
Time Constants 0.1 / 0.2 / 0.5 / 1.0 / 2.0 / 5.0 / 10.0 s
Integration Time Automatic
