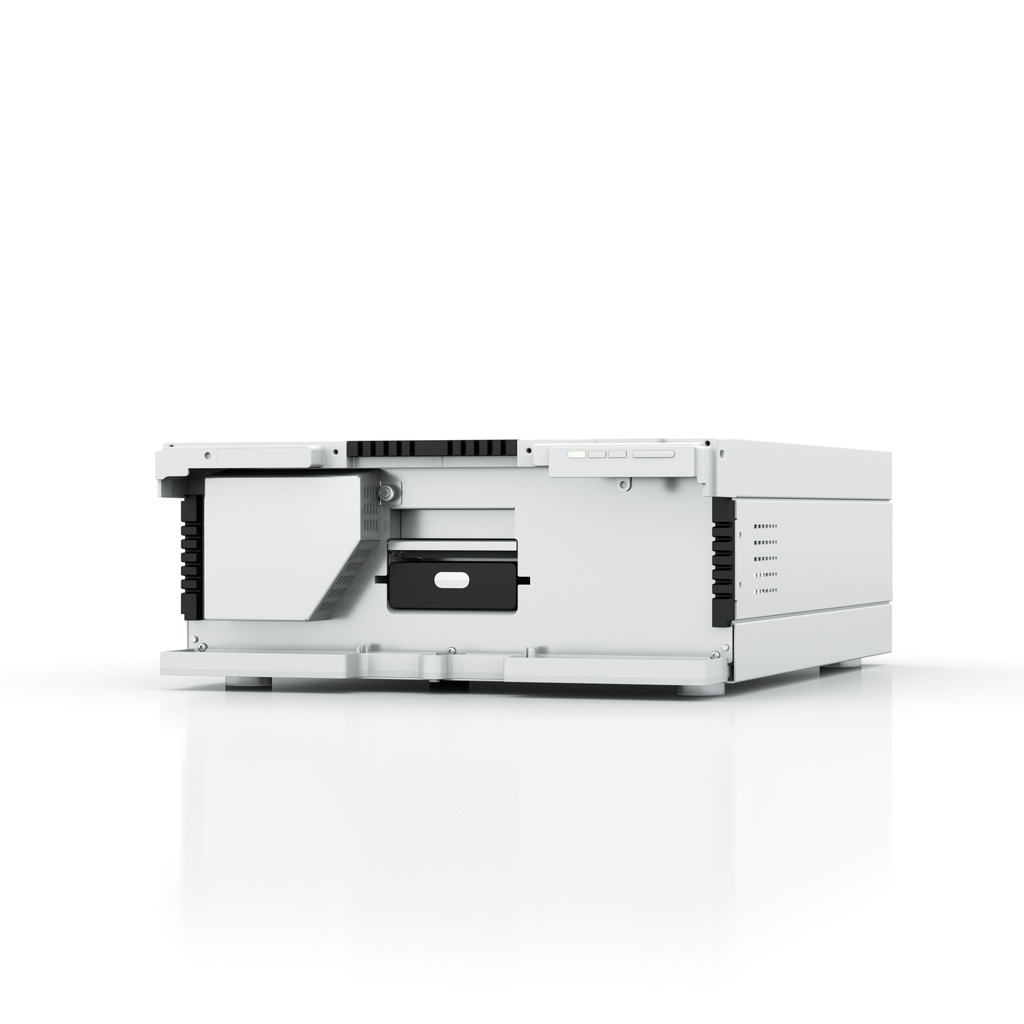

AZURA® DAD 6.1L Diode Array Detector
with Test Cell, without Flow Cell, 190-1000 nm
The AZURA® DAD 6.1L is KNAUER’s high-end diode array detector, featuring a wavelength range from 190 to 1000 nm. With a wide selection of flow cells, it is the ideal choice for all liquid chromatography and process applications. This detector combines excellent performance with easy and user-friendly handling.
State-of-the-art total reflection flow cells with LightGuide technology are available for this device. These flow cells provide maximum light throughput due to total internal reflection and minimal peak dispersion due to their small cell volume, ensuring an optimized signal-to-noise (S/N) ratio. One of the standout features of the AZURA® DAD 6.1L is its optional fiber optic adapter and the flexibility related to it. This adapter allows for the physical separation of the detector from the flow cell, which enhances safety, particularly for applications that require high flow rates or special safety precautions.
Thanks to its innovative optical unit that utilizes the KNAUER polka-dot technology, the detector delivers maximum sensitivity, making it excellently suited for trace analysis. The intelligent temperature management ensures fast operational readiness after startup and minimizes baseline drift. The front-accessible deuterium and halogen lamps make maintenance straightforward, significantly reducing device downtime for lamp replacement.
For analytical applications, the AZURA® DAD 6.1L can be controlled using the software packages ClarityChrom®, OpenLAB®, and Chromeleon™. The PurityChrom® software is also available for purification tasks. Control in a process environment can be implemented via a spring strip, analog outputs, and the Mobile Control software interface.
State-of-the-art total reflection flow cells with LightGuide technology are available for this device. These flow cells provide maximum light throughput due to total internal reflection and minimal peak dispersion due to their small cell volume, ensuring an optimized signal-to-noise (S/N) ratio. One of the standout features of the AZURA® DAD 6.1L is its optional fiber optic adapter and the flexibility related to it. This adapter allows for the physical separation of the detector from the flow cell, which enhances safety, particularly for applications that require high flow rates or special safety precautions.
Thanks to its innovative optical unit that utilizes the KNAUER polka-dot technology, the detector delivers maximum sensitivity, making it excellently suited for trace analysis. The intelligent temperature management ensures fast operational readiness after startup and minimizes baseline drift. The front-accessible deuterium and halogen lamps make maintenance straightforward, significantly reducing device downtime for lamp replacement.
For analytical applications, the AZURA® DAD 6.1L can be controlled using the software packages ClarityChrom®, OpenLAB®, and Chromeleon™. The PurityChrom® software is also available for purification tasks. Control in a process environment can be implemented via a spring strip, analog outputs, and the Mobile Control software interface.
Internal Reference:
ADC11
Technical Data
| General | |
|---|---|
| Detector Type | Diode array detector |
| Detection Channels | 8 (Digital), 4 (Analog) |
| Wavelength Range | 190-1000 nm |
| Light Source | High brightness deuterium (D₂) lamp and halogen lamp with integrated GLP chip |
| Flow Cell | Not included |
| Display | Mobile Control (optional) |
| Specifications | |
|---|---|
| Wavelength Accuracy | ± 1 nm |
| Wavelength Repeatability | ± 0.1 nm |
| Features | |
|---|---|
| Wavelength Verification | Internal holmium filter |
| Leak Sensor | Yes |
| GLP Report | Lamp recognition, Operating hours, Light source operating hours, Number of lamp ignitions |
| Specification - Detection | |
|---|---|
| Number of Diodes | 1024 |
| Pixel Pitch | 0.8 nm/diode |
| Spectral Bandwidth | <3.5 nm at Hα line (FWHM) / Note: Digital Bandwidth 1 - 32 nm |
| Baseline Noise Level (Test Cell, 254 nm, ASTM E1657-98) | ± 3.5 µAU |
| Drift (254 nm, ASTM E1657-98) | 300 µAU/h |
| Linearity (274 nm, ASTM E1657-98) | > 2.5 AU |
| Max. Data Rate | 100 Hz (LAN) / 12.5 Hz (analog) |
| Time Constants | 0.00 / 0.01 / 0.02 / 0.05 / 0.1 / 0.2 / 0.5 / 1.0 / 2.0 / 5.0 / 10.0 s |
| Integration Time | Automatic (5–1000 ms) |
