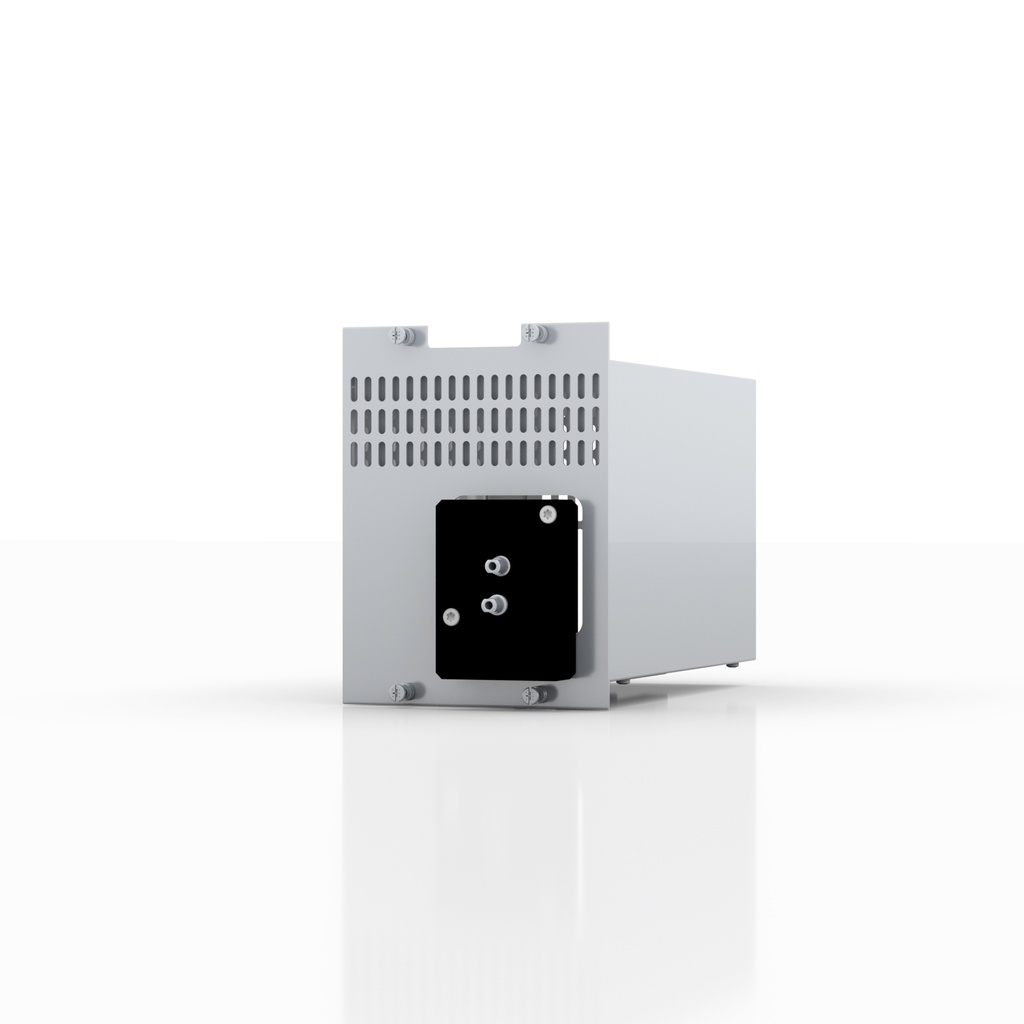

AZURA® UVD 2.1S UV Detector Module for ASM 2.2L - Fiber Optics Version

AZURA® UVD 2.1S UV Detector Module for ASM 2.2L - Fiber Optics Version

https://store.knauer.net/web/image/product.template/62917/image_1920?unique=8b63c98

without Test and Flow Cell, without Fiber Optic Cables, 190-500 nm

The KANUER AZURA® UVD 2.1S Fiber Optics Version is a highly competitive single-variable wavelength UV detector designed for HPLC applications. It is equipped with a deuterium lamp that covers a wavelength range from 190 to 500 nm. The detector features excellent technical specifications for routine laboratory work and its compact design makes it one of the smallest detectors for HPLC currently available on the market.

This fiber optics version of the detector allows for the spatial separation of the flow cell from the device, thus offering enhanced safety for hazardous, explosive or toxic work processes. The flow cell is easily accessible, enabling quick change when necessary. Users can choose from a wide range of flow cells with either bio-inert or stainless-steel wetted parts, suitable for both analytical and preparative LC applications, with flow rates ranging from 10 μl/min to 10 l/min.

This type of the AZURA® UVD 2.1S is a module for the LC docking station and must be integrated into the AZURA® ASM 2.2L.


  • Detector Type
  • Detector Version
  • Detection Channels
  • Detection Channels
  • Wavelength Range
  • Spectral Bandwidth
  • Wavelength Accuracy
  • Wavelength Precision
  • Light Source
  • Baseline Noise Level (Test Cell, 254 nm, ASTM E1657-98)
  • Drift (254 nm, ASTM E1657-98)
  • Linearity (274 nm, ASTM E1657-98)
  • Max. Data Rate
  • Time Constants
  • Integration Time
  • Wavelength Verification
  • Leak Sensor
  • Flow Cell
  • Flow Cell
  • GLP Report
  • Display
  • Ambient Conditions
  • Weight

This combination does not exist.

Contact Us

Terms and Conditions
Images may differ from the actual product.

Share

Internal Reference: ADA07XA

Technical Data

General
Detector Type Variable single wavelength UV detector
Detector Version With fiber optic connectors
Detection Channels 1 (Digital), 1
Wavelength Range 190-500 nm
Light Source Deuterium (D₂) lamp with integrated GLP chip
Flow Cell Not included, Fiber optic cables are not included
Display Mobile Control (optional)
Specifications
Wavelength Accuracy ± 3.0 nm
Wavelength Precision 0.7 nm (ASTM E275-93)
Features
Wavelength Verification External holmium filter test cell
Leak Sensor Via AZURA® Assistant ASM 2.2L
GLP Report Light source operating hours
Specification - Detection
Spectral Bandwidth 13 nm at Hα line (FWHM)
Baseline Noise Level (Test Cell, 254 nm, ASTM E1657-98) ± 25 µAU
Drift (254 nm, ASTM E1657-98) 400 µAU/h
Linearity (274 nm, ASTM E1657-98) > 2.0 AU
Max. Data Rate 50 Hz (LAN) / 20 Hz (analog)
Time Constants 0.00 / 0.02 / 0.05 / 0.1 / 0.2 / 0.5 / 1.0 / 2.0 s
Integration Time Automatic
