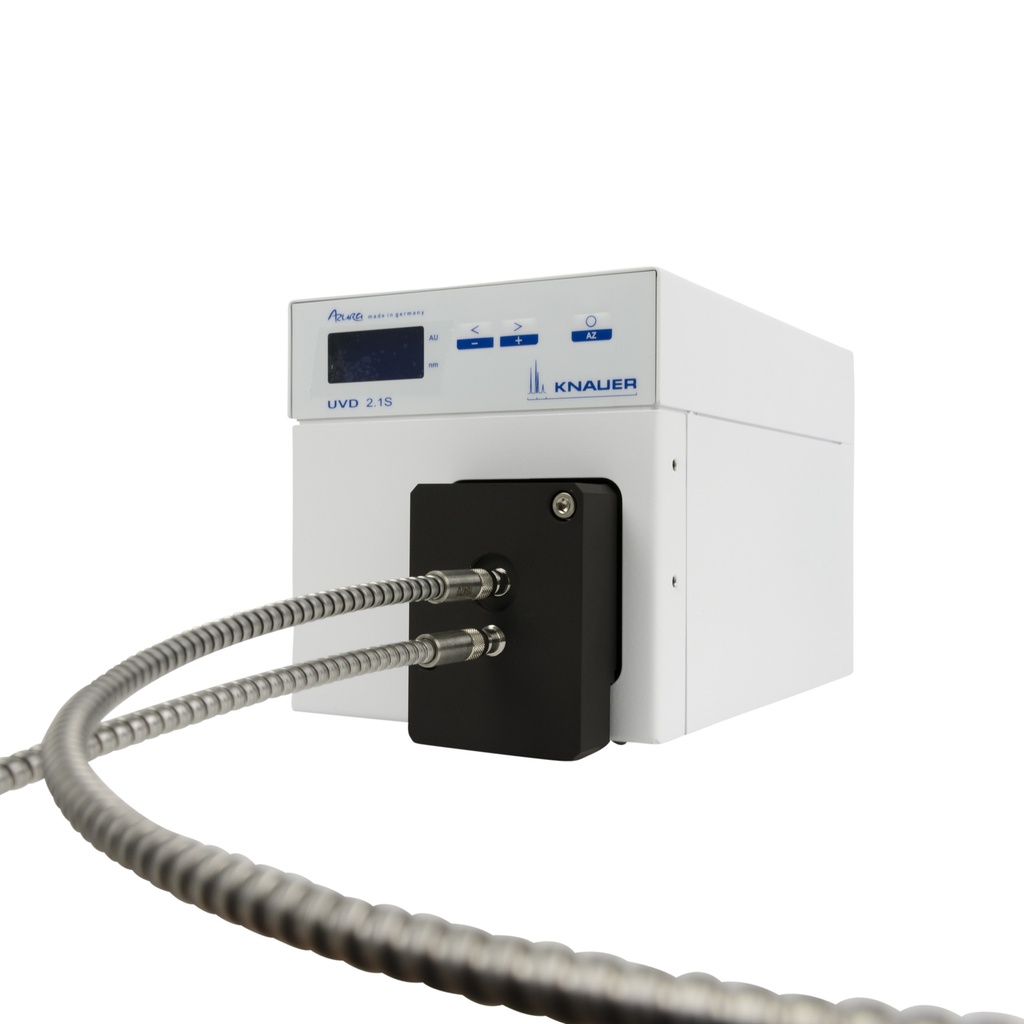

AZURA® UVD 2.1S UV Detector - Fiber Optics Version
without Test and Flow Cell, without Fiber Optic Cables, 190-500 nm
The KANUER AZURA® UVD 2.1S Fiber Optics Version is a highly competitive single-variable wavelength UV detector designed for HPLC applications. It is equipped with a deuterium lamp that covers a wavelength range from 190 to 500 nm. The detector features excellent technical specifications for routine laboratory work and its compact design makes it one of the smallest detectors for HPLC currently available on the market.
This fiber optics version of the detector allows for the spatial separation of the flow cell from the device, thus offering enhanced safety for hazardous, explosive or toxic work processes. The flow cell is easily accessible, enabling quick change when necessary. Users can choose from a wide range of flow cells with either bio-inert or stainless-steel wetted parts, suitable for both analytical and preparative LC applications, with flow rates ranging from 10 μl/min to 10 l/min.
The UVD 2.1S can be controlled using ClarityChrom®, OpenLAB®, Chromeleon™, ChromGate® and PurityChrom® software, as well as from the front panel for stand-alone operation. Control can be achieved via LAN, RS-232, or through analog input/output, allowing for seamless integration into almost any LC system.
The AZURA® UVD 2.1S Fiber Optics Version is also available as a module for the KANUER AZURA® ASM 2.2L.
This fiber optics version of the detector allows for the spatial separation of the flow cell from the device, thus offering enhanced safety for hazardous, explosive or toxic work processes. The flow cell is easily accessible, enabling quick change when necessary. Users can choose from a wide range of flow cells with either bio-inert or stainless-steel wetted parts, suitable for both analytical and preparative LC applications, with flow rates ranging from 10 μl/min to 10 l/min.
The UVD 2.1S can be controlled using ClarityChrom®, OpenLAB®, Chromeleon™, ChromGate® and PurityChrom® software, as well as from the front panel for stand-alone operation. Control can be achieved via LAN, RS-232, or through analog input/output, allowing for seamless integration into almost any LC system.
The AZURA® UVD 2.1S Fiber Optics Version is also available as a module for the KANUER AZURA® ASM 2.2L.
Internal Reference:
ADA05
Technical Data
| General | |
|---|---|
| Detector Type | Variable single wavelength UV detector |
| Detector Version | With fiber optic connectors |
| Wavelength Range | 190-500 nm |
| Light Source | Deuterium (D₂) lamp with integrated GLP chip |
| Flow Cell | Not included, Fiber optic cables are not included |
| Display | LED |
| Specifications | |
|---|---|
| Wavelength Accuracy | ± 3.0 nm |
| Wavelength Precision | 0.7 nm (ASTM E275-93) |
| Features | |
|---|---|
| Leak Sensor | No |
| GLP Report | Light source operating hours |
| Specification - Detection | |
|---|---|
| Spectral Bandwidth | 13 nm at Hα line (FWHM) |
| Baseline Noise Level (Test Cell, 254 nm, ASTM E1657-98) | ± 25 µAU |
| Drift (254 nm, ASTM E1657-98) | 400 µAU/h |
| Linearity (274 nm, ASTM E1657-98) | > 2.0 AU |
| Max. Data Rate | 50 Hz (LAN) / 20 Hz (analog) / 10 Hz (RS-232) |
| Time Constants | 0.00 / 0.02 / 0.05 / 0.1 / 0.2 / 0.5 / 1.0 / 2.0 s |
| Integration Time | Automatic |
