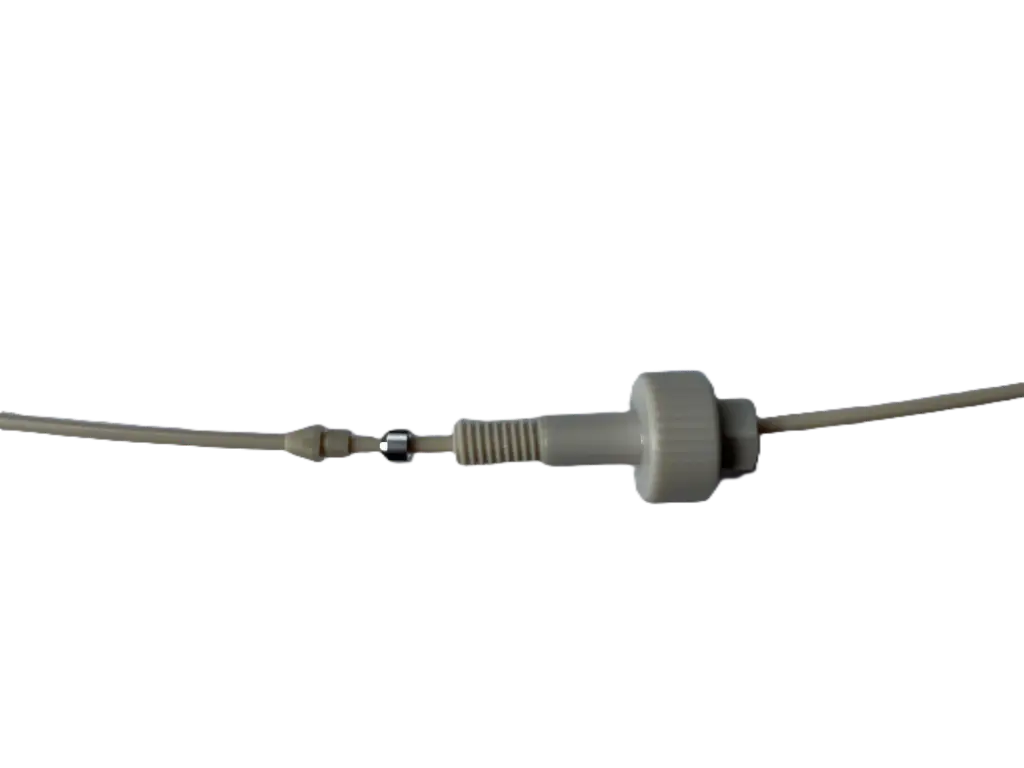

Fingertight Fitting, PEEK, long, Set of 2, incl. twist-free sealing rings
Finger-tight fittings UNF 10/32 Thread coned
This special combination helps to prevent the polymer tubing from twisting during the tightening process. The ferrule features a robust stainless steel lock ring that secures it to the tubing when the fitting system is released from its receiving port. It is designed for 1/16" OD tubing and features a UNF 10/32 coned thread port configuration.
Internal Reference:
A9649
Technical Data
| General | |
|---|---|
| Fitting Type | Finger-tight, Wrench-tight |
| Units per Package | 2 |
| Specifications | |
|---|---|
| Fitting Material | PEEK |
| Fitting Capillary Connection | 1/16" |
| Fitting Thread | UNF 10-32 coned |
| Fitting Included Sealing | With ferrules |
| Ferrule Material | PEEK, Stainless steel (SST) |
| Max. Pressure | 345 bar |
