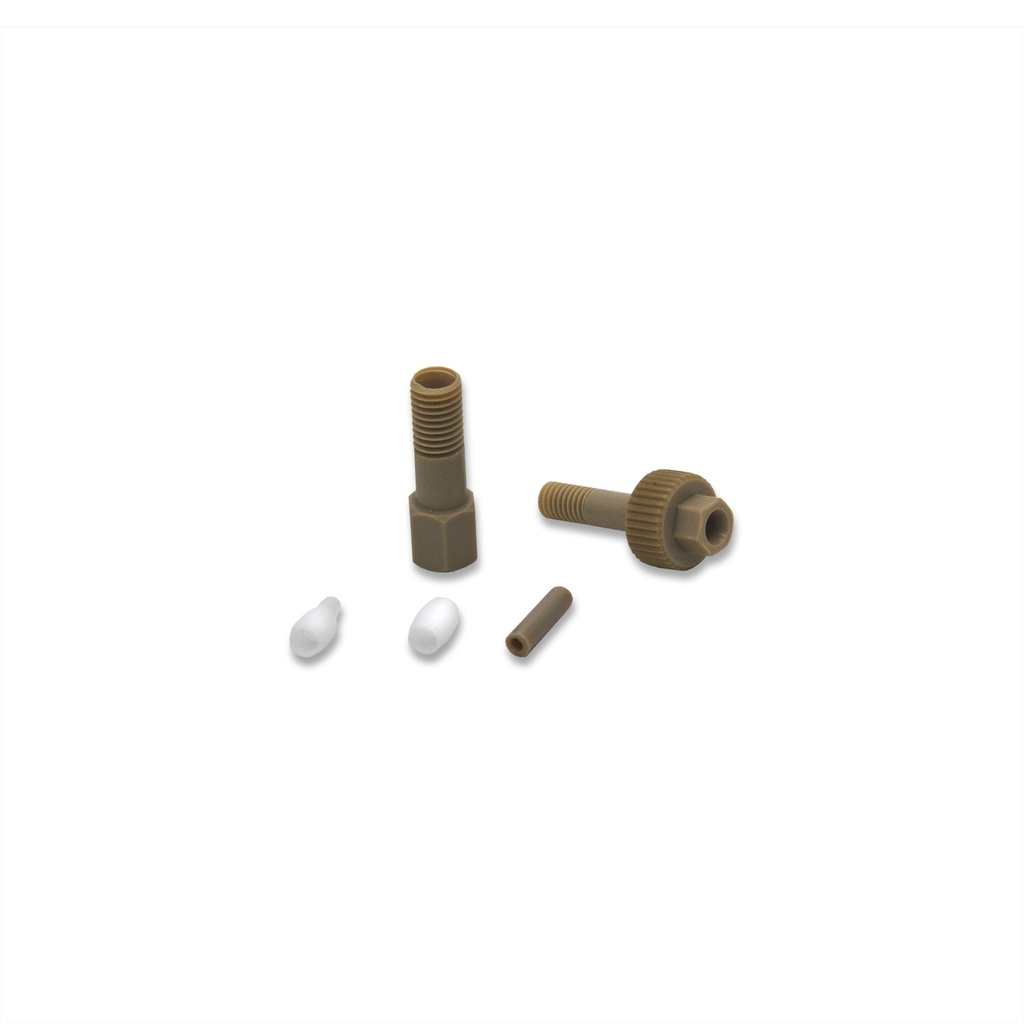

Adapter 1/8" to 1/16", PEEK, male thread 1/8" (UNF 1/4-28, coned), female thread 1/16"(UNF 10-32, coned), 1 pc.
Including fitting. For connecting a 1/16“ capillary tube to a 1/8” port.
The adapter can be used to connect a capillary with 1/16" OD to a 1/8" port.
The article includes the following items:
1 x 1/16" bushing, PEEK
1 x 1/16" Biconical seal ring, PETP
1 x 1/16" -> 1/8" adapter (female thread (internal): 10-32 UNF coned; male thread (external): 1/4-28 UNF coned), PEEK
2 x 1/8" Biconical seal ring, PETP
1 x 1/8" capillary (12 mm), PEEK
Internal Reference:
A7224
Technical Data
| General | |
|---|---|
| Fitting Type | Finger-tight, Wrench-tight |
| Specifications | |
|---|---|
| Fitting Material | PEEK |
| Fitting Thread | UNF 10-32 coned, UNF 1/4-28 coned |
| Fitting Included Sealing | With ferrules |
| Fitting Capillary Connection | 1/16" |
| Form & Fit | |
|---|---|
| Bore Size | 1.6 mm |
