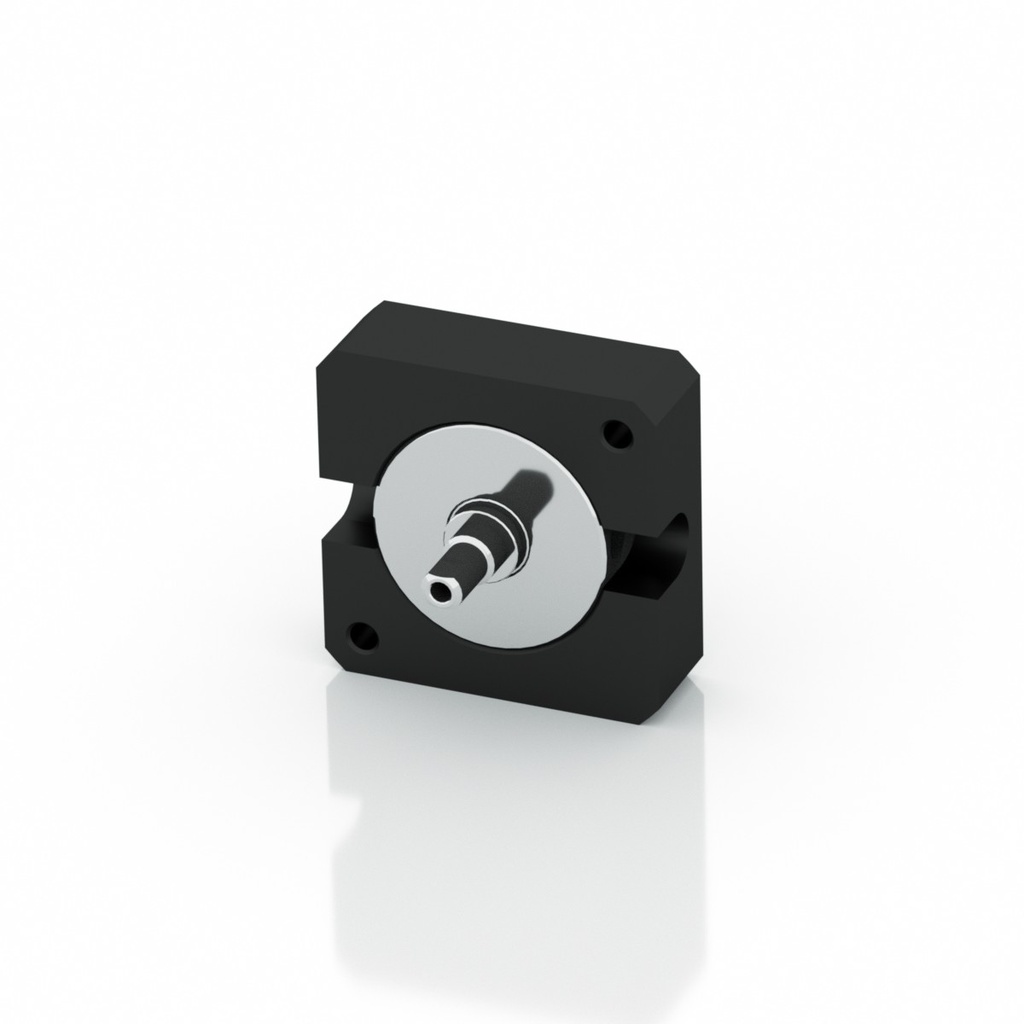

UV Flow Cell, Preparative, Fiber Optics, 0.5 mm, 3 µl, SSt, 1/16'', 200 bar, up to 250 ml/min
This stainless steel preparative UV flow cell with fiber optic connectors is distinguished by its robust and long-life design. The flow cell can be easily dismantled allowing optical components to be cleaned and replaced.
Fiber optic cables offer the possibility to separate the flow cell spatially from the detector and thus provides enhanced security for hazardous, explosive or toxic work processes.
This flow cell is compatible with the KNAUER fiber optic version detectors AZURA® UVD 2.1S, UVD 2.1L and BlueShadow 40D, but can be also used with the AZURA DAD 6.1L, DAD 2.1L, and MWD 2.1L detectors together with the Fiber Optics Adapter Kit AMKX8KIT.
This flow cell is compatible with the KNAUER fiber optic version detectors AZURA® UVD 2.1S, UVD 2.1L and BlueShadow 40D, but can be also used with the AZURA DAD 6.1L, DAD 2.1L, and MWD 2.1L detectors together with the Fiber Optics Adapter Kit AMKX8KIT.
Internal Reference:
A4089
Technical Data
| General | |
|---|---|
| Flow Cell Type | Preparative UV flow cell |
| Optical Path Length | 0.5 mm |
| Flow Cell (Internal) Volume | 3 µl |
| Flow Cell Max. Pressure | 200 bar, 2900 psi |
| Compatible With Detector | VWD 2.1L - Fiber Optics, UVD 2.1L - Fiber Optics, UVD 2.1S - Fiber Optics, 40D - Fiber Optics |
| Specifications | |
|---|---|
| Fiber Optics Version | Yes |
| Max. Flow Rate | 250 ml/min |
| GMP Relevant | |
|---|---|
| Biocompatible | No |
| Wetted Materials | Stainless Steel, Quartz (SUPRASIL), PTFE (Teflon) |
| Form & Fit | |
|---|---|
| Flow Cell Capillary Connection | 1/16'' |
