  3. UV Flow Cell, Preparative, Fiber Optics, Variable Flowpath , 0.5/1.25/2 mm, 1.7/4.3/6.8 µl, PEEK, 1/8'', 100 bar, up to 1000 ml/min

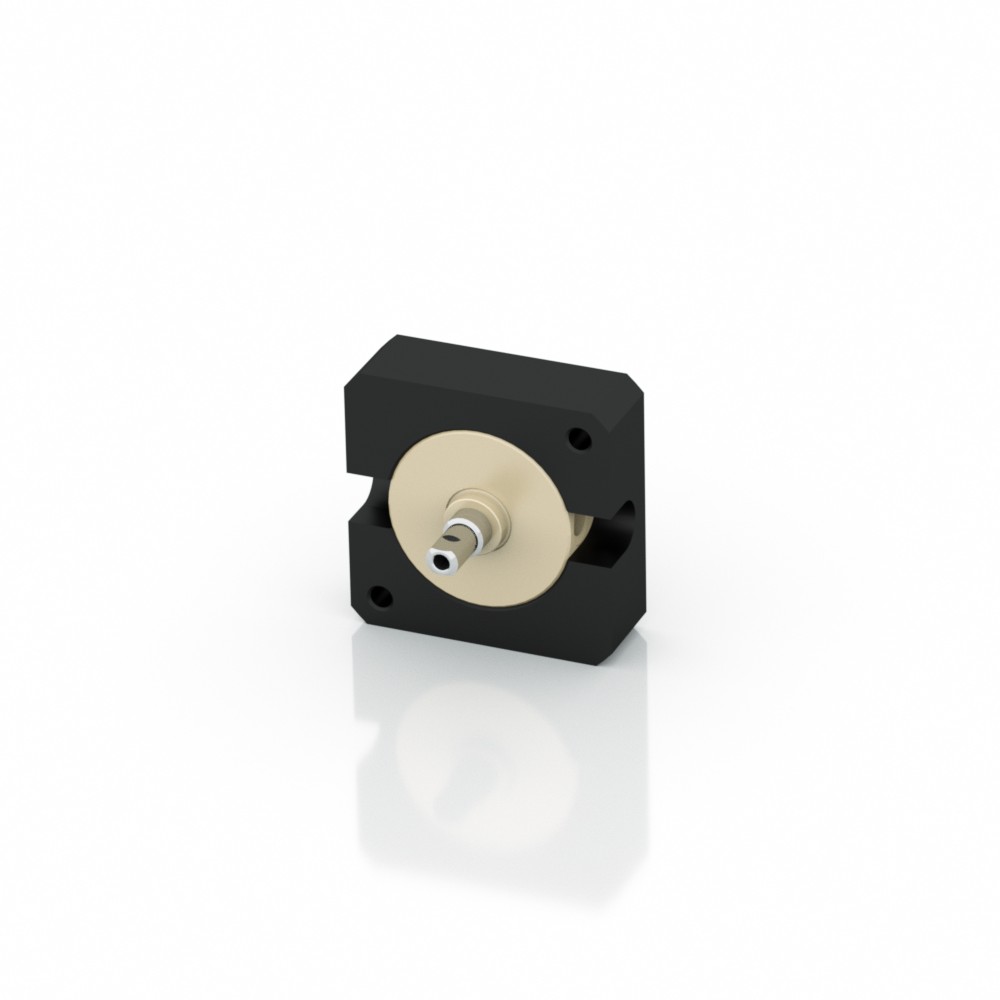

UV Flow Cell, Preparative, Fiber Optics, Variable Flowpath , 0.5/1.25/2 mm, 1.7/4.3/6.8 µl, PEEK, 1/8'', 100 bar, up to 1000 ml/min

UV Flow Cell, Preparative, Fiber Optics, Variable Flowpath , 0.5/1.25/2 mm, 1.7/4.3/6.8 µl, PEEK, 1/8'', 100 bar, up to 1000 ml/min

https://store.knauer.net/web/image/product.template/50071/image_1920?unique=03df706
This bioinert preparative UV flow cell with fiber optic connectors is distinguished by its robust and long-life design. The flow cell can be easily dismantled allowing optical components to be cleaned and replaced. Fiber optic cables offer the possibility to separate the flow cell spatially from the detector and thus provides enhanced security for hazardous, explosive or toxic work processes.
This flow cell is compatible with the KNAUER fiber optic version detectors AZURA® UVD 2.1S, UVD 2.1L and BlueShadow 40D, but can be also used with the AZURA DAD 6.1L, DAD 2.1L, and MWD 2.1L detectors together with the Fiber Optics Adapter Kit AMKX8KIT.

1,796.00 € 1796.0 EUR 1,796.00 € Tax Excluded

  • Flow Cell Type
  • Fiber Optics Version
  • Biocompatible
  • Optical Path Length
  • Flow Cell (Internal) Volume
  • Max. Flow Rate
  • Flow Cell Max. Pressure
  • Flow Cell Capillary Connection
  • Wetted Materials
  • Wetted Materials
  • Wetted Materials
  • Compatible With Detector
  • Compatible With Detector
  • Compatible With Detector
  • Compatible With Detector
  • Flow Cell Housing Material
  • Flow Cell Inner Diameter

This combination does not exist.

Contact Us

Terms and Conditions
Images may differ from the actual product.

Share

Internal Reference: A4079

Technical Data

General
Flow Cell Type Preparative UV flow cell
Optical Path Length Variable (0.5 / 1.25 / 2 mm)
Flow Cell (Internal) Volume Variable (1.7 / 4.3 / 6.8 µl)
Flow Cell Max. Pressure 100 bar, 1450 psi
Compatible With Detector VWD 2.1L - Fiber Optics, UVD 2.1L - Fiber Optics, UVD 2.1S - Fiber Optics, 40D - Fiber Optics
Specifications
Fiber Optics Version Yes
Max. Flow Rate 1000 ml/min
GMP Relevant
Biocompatible Yes
Wetted Materials PEEK, Quartz (SUPRASIL), PTFE (Teflon)
Form & Fit
Flow Cell Capillary Connection 1/8''
