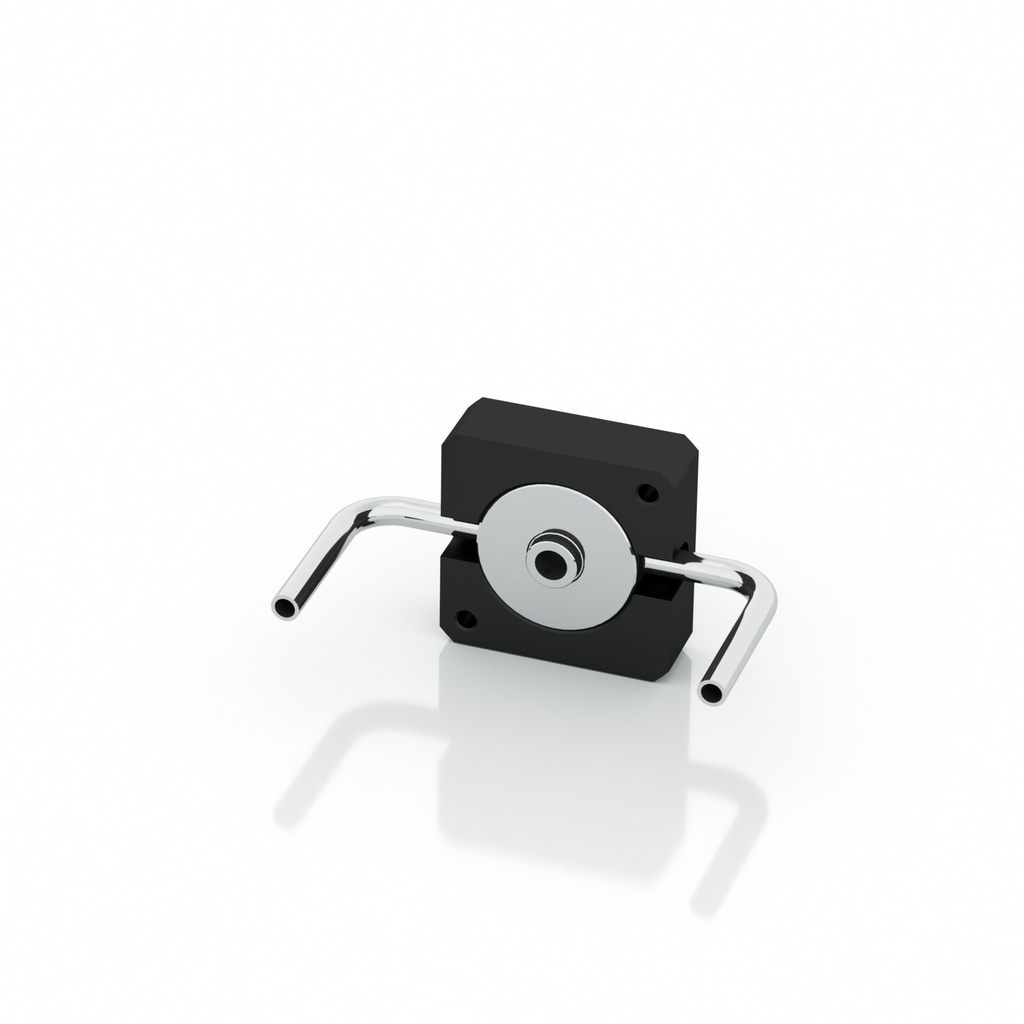

UV Flow Cell, Preparative, Variable Flowpath , 0.5/1.25/2 mm, 1.7/4.3/6.8 µl, SSt, 1/4'' angular, 200 bar, up to 10000 ml/min
without fittings
This stainless steel preparative UV flow cell is distinguished by its robust and long-life design. The flow cell can be easily dismantled allowing optical components to be cleaned and replaced.
This flow cell is compatible with the KNAUER detectors AZURA® UVD 2.1S, and UVD 2.1L as well as BlueShadow 40D, and 50D.
This flow cell is compatible with the KNAUER detectors AZURA® UVD 2.1S, and UVD 2.1L as well as BlueShadow 40D, and 50D.
Internal Reference:
A4068
Technical Data
| General | |
|---|---|
| Flow Cell Type | Preparative UV flow cell |
| Optical Path Length | Variable (0.5 / 1.25 / 2 mm) |
| Flow Cell (Internal) Volume | Variable (1.7 / 4.3 / 6.8 µl) |
| Flow Cell Max. Pressure | 200 bar, 2900 psi |
| Compatible With Detector | VWD 2.1L, UVD 2.1L, UVD 2.1S, 50D, 40D |
| Flow Cell | Fittings not included |
| Specifications | |
|---|---|
| Fiber Optics Version | No |
| Max. Flow Rate | 10 000 ml/min |
| GMP Relevant | |
|---|---|
| Biocompatible | No |
| Wetted Materials | Stainless Steel, Quartz (SUPRASIL), PTFE (Teflon) |
| Form & Fit | |
|---|---|
| Flow Cell Capillary Connection | 1/4'' (angular connections) |
