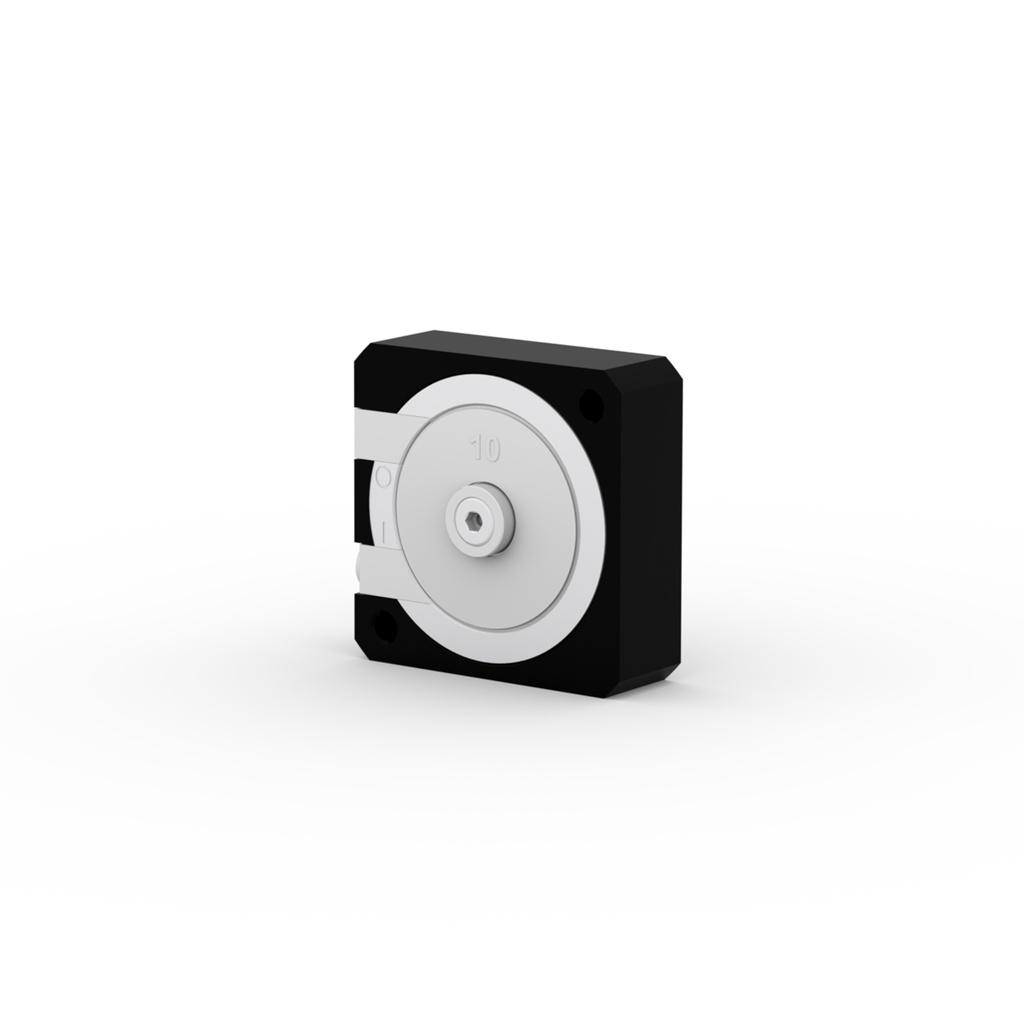

UV Flow Cell, Analytical, Heat Exchanger, 10 mm, 10 µl, SSt, 1/16'', 300 bar, up to 20 ml/min, one sided inlet and outlet
This standard stainless steel analytical UV flow cell is distinguished by its robust and long-life design. The flow cell can be easily dismantled allowing optical components to be cleaned and replaced.
This flow cell is compatible with the KNAUER detectors AZURA® UVD 2.1S, and UVD 2.1L as well as BlueShadow 40D, and 50D. The one-sided inlet and outlet assure improved handling, especially for the ASM 2.2L with UVD 2.1S detector.
This flow cell is compatible with the KNAUER detectors AZURA® UVD 2.1S, and UVD 2.1L as well as BlueShadow 40D, and 50D. The one-sided inlet and outlet assure improved handling, especially for the ASM 2.2L with UVD 2.1S detector.
Internal Reference:
A4061XB
Technical Data
| General | |
|---|---|
| Flow Cell Type | Analytical UV flow cell |
| Optical Path Length | 10 mm |
| Flow Cell (Internal) Volume | 10 µl |
| Flow Cell Max. Pressure | 300 bar, 4351 psi |
| Compatible With Detector | VWD 2.1L, UVD 2.1L, UVD 2.1S, 50D, 40D |
| Flow Cell | one sided inlet and outlet |
| Specifications | |
|---|---|
| Fiber Optics Version | No |
| Max. Flow Rate | 20 ml/min |
| GMP Relevant | |
|---|---|
| Biocompatible | No |
| Wetted Materials | Stainless Steel, Quartz (SUPRASIL), PFA |
| Form & Fit | |
|---|---|
| Flow Cell Capillary Connection | 1/16'' |
