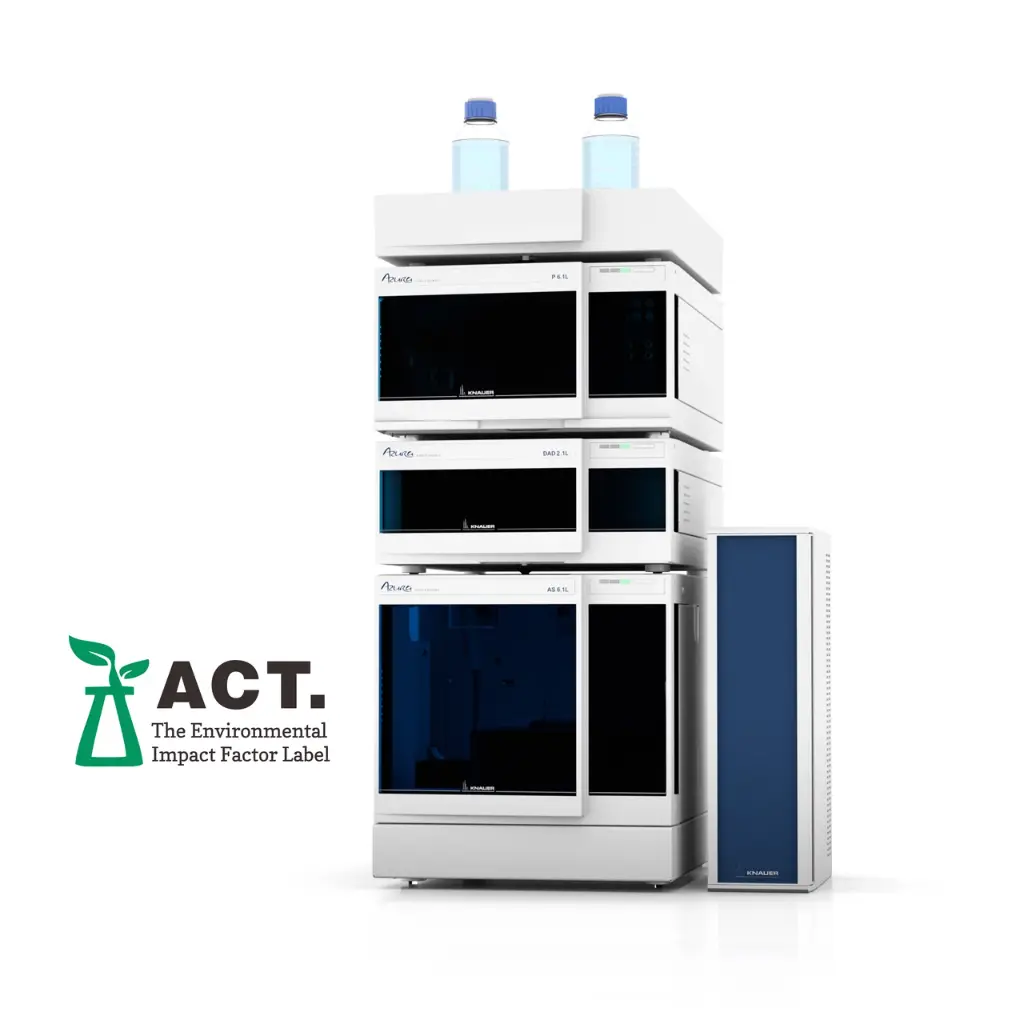

KNAUER AZURA HPLC 862 bar system with quaternary pump and DAD
Included system components: Eluent tray E 2.1L, Pump P 6.1L LPG, Autosampler AS 6.1L, Column thermostat CT 2.1, Diode array detector DAD 2.1L with 10 mm pressure proof flow cell, ClarityChrom Software and PDA extension, Accessories and tools
The complete solution for your daily HPLC routine. Ideally suited for a wide range of applications.
Eluent deliveryThe Pump P 6.1L with LPG configuration has a new LPG valve for precise mixing efficiency of up to four eluents. The integrated degasser prevents air bubbles in the system. A mixing chamber is mounted on each Pump P 6.1L. This can be adapted to the respective application as required.
Sample Injection
The Autosampler AS 6.1L can inject 0.1 – 5000 µl to have a large flexibility. Using standard vials or two microtiter plates will give you a maximum sample capacity of up to 768 samples or 108 vials.
Column thermostating
The Column thermostat CT 2.1 is suitable for column thermostatization above and below room temperature. The instrument operates with a microprocessor controlled Peltier element for exact temperature settings.
Chromatography data system
KNAUER ClarityChrom® is a powerful, yet easy-to-use chromatography software for instrument control, data acquisition and data processing. It is an economical solution compared to other more complex chromatography software while still offering FDA 21 CFR Part 11 compliance.
Detection
The Detector DAD 2.1L features a novel light path and flow cell architecture with improved handling and excellent performance. This Diode array detector can be used in the wavelength range of 190-700 nm.
The system is certified with My Green Lab's ACT Environmental Impact Factor Ecolabel
Internal Reference:
986 502 200
Technical Data
| Eluent delivery | P 6.1L 862 bar LPG |
| Sample Injection | AS 6.1L |
| Detection | DAD 2.1L |
| Chromatography Software CDS | ClarityChrom |
| Column Tempering | Column Thermostat CT 2.1 |
