LC Systeme

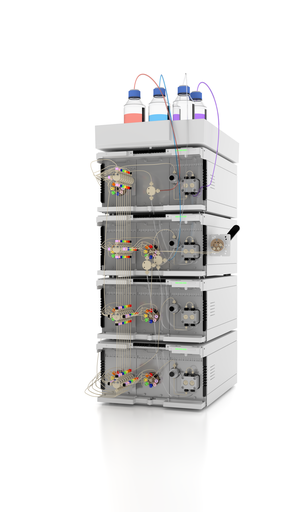

4 Pumpen, 7 Ventile, 130 bar für 8 Säulen, 60°C, 30 ml/min

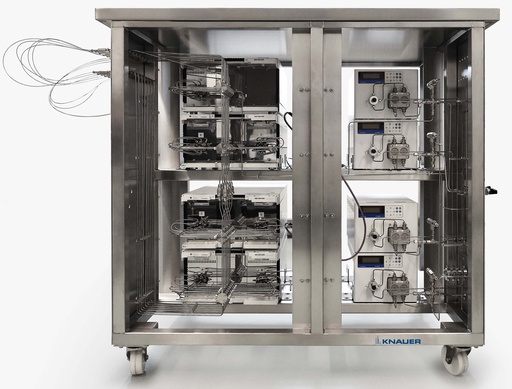

Basiskonfiguration 4 Pumpen, 7 Ventile, 130 bar, für 8 Säulen, 50°C, 30 ml/min,

4 Pumpen, 7 Ventile, 100 bar für 8 Säulen, 60°C, 250 ml/min inkl. 4 Flowmeter

4 Pumpen, 7 Ventile, 60 bar für 8 Säulen, 60°C, 400 ml/min inkl. 4 Flowmeter

Included system components: Eluent tray E 2.1L, Manual injection valve V 4.1, ASM 2.2L with UVD 2.1S including 10 mm flow cell and Pump P 4.1S, ClarityChrom Software, Accessories and tools

Included system components: Eluent tray E 2.1L, Pump P 6.1L isocratic without degasser, Autosampler AS 6.1L, Column thermostat CT 2.1, Refractive index detector RID 2.1L, Backflushing valve V4.1 with valve drive VU 4.1, ClarityChrom Software, Accessories and tools

Included system components: Eluent tray E 2.1L, Pump P 6.1L LPG, Autosampler AS 6.1L, Column thermostat CT 2.1, Diode array detector DAD 2.1L with 10 mm pressure proof flow cell, ClarityChrom Software and PDA extension, Accessories and tools

Included system components:
Eluent tray E 2.1L, Pump P 6.1L HPG, Autosampler AS 6.1L, Column thermostat CT 2.1, Diode array detector DAD 2.1L with 10 mm pressure proof flow cell, ClarityChrom Software and PDA extension, Accessories and tools

Included system components: Eluent tray E 2.1L, Pump P 6.1L LPG, Autosampler AS 6.1L, Column thermostat CT 2.1, UV detector UVD 2.1L with 10 mm flow cell, ClarityChrom Software, Accessories and tools

Included system components: Eluent tray E 2.1L, Pump P 6.1L HPG, Autosampler AS 6.1L, Column thermostat CT 2.1, Diode array detector UVD 2.1L with 10 mm flow cell, ClarityChrom Software, Accessories and tools

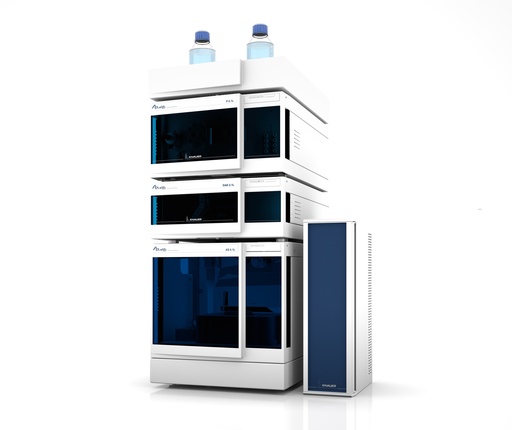

Included system components: Eluent tray E 2.1L, Pump P 6.1L isocratic, Autosampler AS 6.1L, Column thermostat CT 2.1, Refractive index detector RID 2.1L, ClarityChrom Software, Accessories and tools

Included system components: Eluent tray E 2.1L, Pump P 8.1L HPG, Autosampler AS 6.1L, Column thermostat CT 2.1, Diode array detector DAD 2.1L with 10 mm pressure proof flow cell, ClarityChrom Software and PDA extension, Accessories and tools

Included system components: Eluent tray E 2.1L, Pump P 6.1L HPG, Liquid handler LH 8.1 incl. Robotic Cooler, Column thermostat CT 2.1, Diode array detector DAD 2.1L with 10 mm pressure proof flow cell, ClarityChrom Software and PDA extension, Accessories and tools

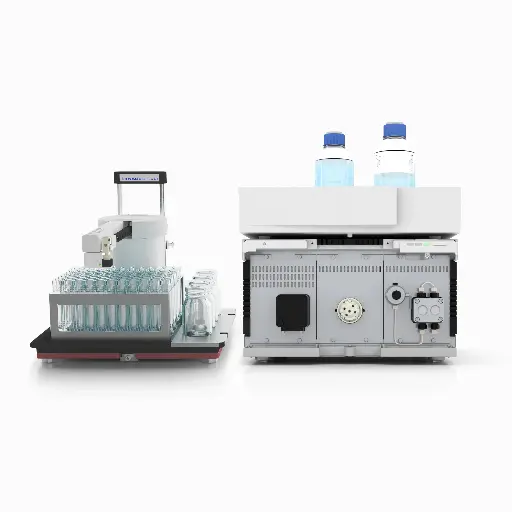

Größenausschlusschromatographie bei bis zu 10 ml/min, 50 bar

Affinity Chromatography at up to 50 ml/min, 50 bar

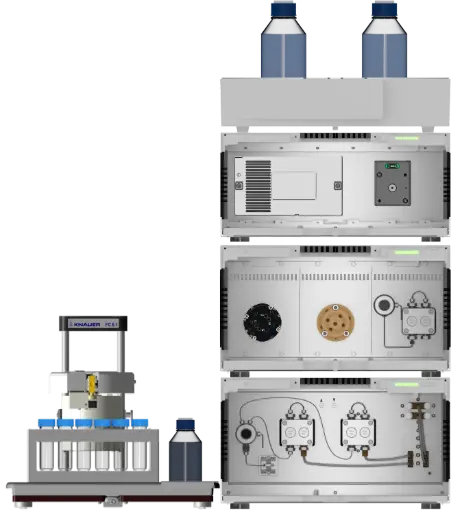

The AZURA Bio Lab Advanced System is a gradient system for complex purifications of bio molecules in a laboratory scale. It is designed and optimized for all FPLC applications like affinity, ion exchange, hydrophobic interaction and size exclusion chromatography. All system modules can be freely exchanged and further modules can be added optionally, to give you the best configuration for your purification task.

Key features

Flow rate: 0.001 - 50 ml/min; 0.1 - 40 ml/min (recommended)
Max Pressure: 200 bar (20.0 MPa)
Sample Application via Loop or via Sample Pump
Column Selection Valve for switching between 7 columns including reverse flow option
Variable UV Detector (190 - 900 nm)
Simultaneous measurement of UV and conductivity
optional pH surveillance of purification
Outlet valve can be used to realize automated two step purification processes
Column compatibility: works with all columns on the market
Material: All wetted parts are made of biocompatible materials
Software: Intuitive PurityChrom® software
Optimize your FPLC workflows today with the AZURA® Bio Lab System – where precision meets simplicity.

Need a different system configuration? No problem.

Thanks to the modular design of the AZURA® platform, upgrades and custom configurations are easy to implement. Just contact us — we’re happy to help you define the perfect system tailored to your specific needs.

50 ml/min, 200 bar

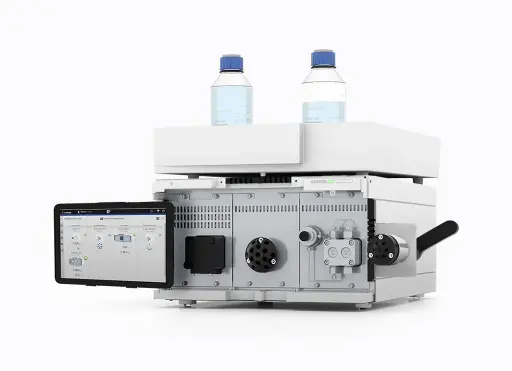

The AZURA Compact Prep HPLC is an isocratic LC System for simple purifications with a minimal footprint.

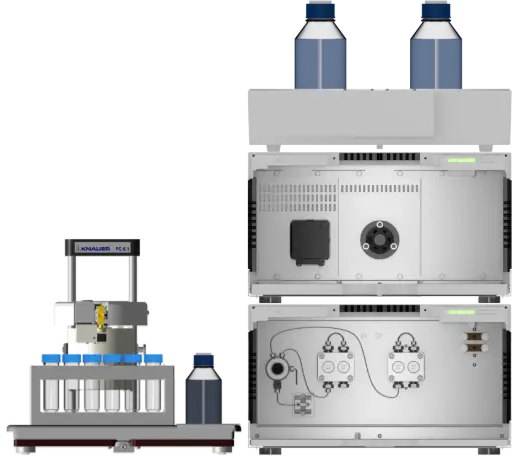

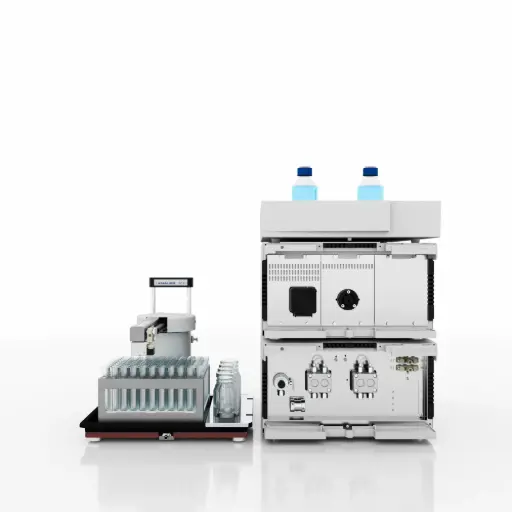

The AZURA Prep HPLC Lab is a flexible gradient LC System for purifications ranging from small molecules to peptides or oligonucleotides.

50 ml/min, 200 bar

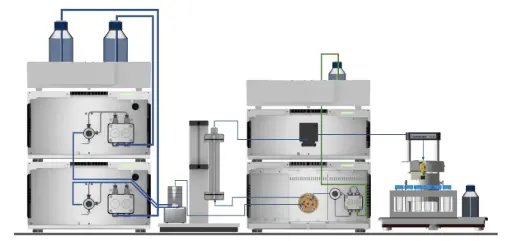

The AZURA Prep.-250 gradient system is designed for the complex purification of small molecules at a pilot scale. All system modules are interchangeable, and additional modules can be added as needed for greater flexibility.

Key Features:
• Flow rate: 0.01–250 ml/min; 5 - 220 ml/min (recommended)
• Maximum system pressure: 200 bar (20.0 MPa)
• Injection valve for sample injection via sample loop or sample pump
• Sample pump, 0,1 - 50 ml/min max. 150 bar (15.0 MPa)
• Variable wavelength UV detector, single channel (190–700 nm)
• Fraction collector for fractionation
• Rack for Fraction collector for 15 or 50 ml tubes
• Compatible with columns from all vendors
• Intuitive PurityChrom® software
• 1/16“ Tubing on the high-pressure site
