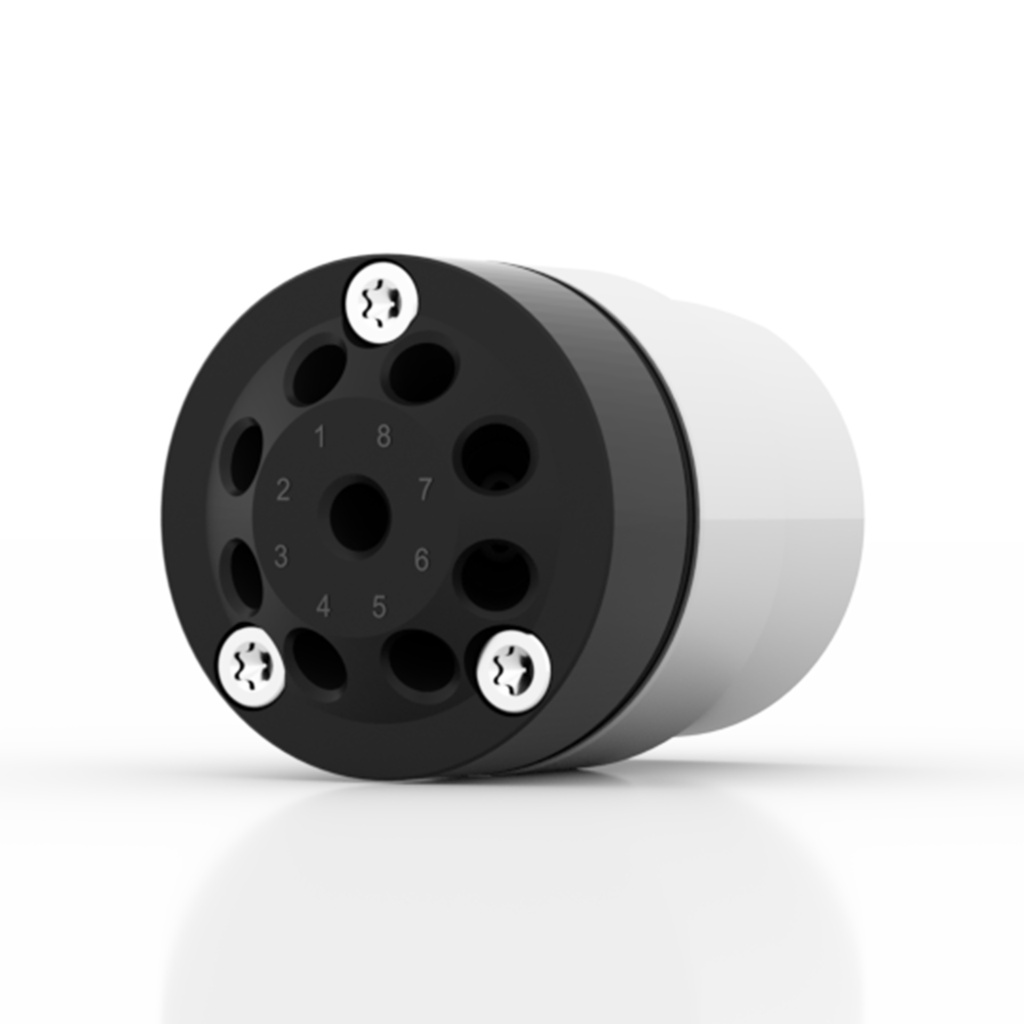

AZURA® V 4.1 Ventil, 8Port MultiPos ohne Antrieb, 200 bar, 1/8" 1/4-28 UNF, 1.5 mm Bohrung, SSt-DLC/Vespel
Automated valve for applications like column, eluent or sample selection and fraction collection. DLC coated SSt stator and PEEK TX rotor seal.
This valve is used in combination with the VU 4.1 valve unifier. Multiposition valves are ubiquitous in HPLC and UHPLC applications. They act like a switch and can control the flow path of the chromatography system in various ways. The stator of this automated multiposition valve is made of stainless steel with a DLC coating (diamond-like carbon). In combination with a PEEK TX rotor seal the valve offers high durability and a pressure resistance of up to 200 bar. This valve is best suited for preparative applications and has 8 ports.
Interne Referenz:
AVT34AC
Technische Daten
| Allgemein | |
|---|---|
| Ventilfunktion | Säulenauswahl, Probenauswahl, Eluentenauswahl, Fraktionssammlung |
| Ventilmodell | V 4.1 |
| Bedienung | Elektrisch durch VU 4.1 |
| Ventilantrieb | Nicht enthalten |
| Ventilmaterial | Rostfreier Stahl (SST) |
| Spezifikationen | |
|---|---|
| Ventilport Anzahl | 8 |
| Ventilpositionen | Multiposition |
| Kapillaranschlüsse im Ventil | 1/8" |
| Max. Druck im Ventil | 200 bar |
| GMP Relevant | |
|---|---|
| Statormaterial | Rostfreier Stahl-DLC (SST-DLC) |
| Rotormaterial | Vespel |
| Geometrie & Passform | |
|---|---|
| Bohrungsgröße | 1.5 mm |
| Gewinde | UNF 1/4-28 |
Finde alle Produktspezifikationen hier
