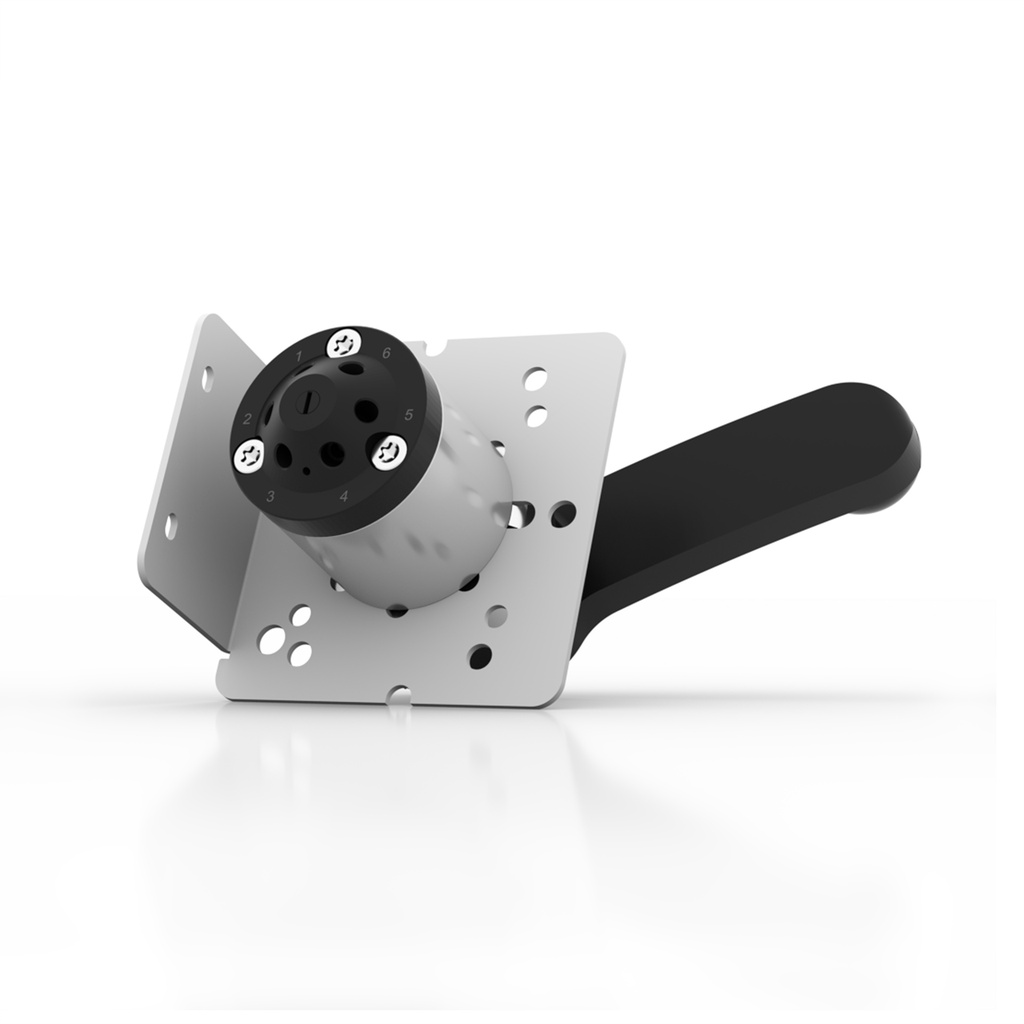

AZURA® V 4.1 Ventil, Manuell 6Port 2Pos, 1200 bar, 1/16" 10-32 UNF 0,3 mm Bohrung, Edelstahl-DLC
Manuelles Ventil für analytische Anwendungen wie Probeninjektion oder Säulenauswahl. DLC-beschichteter SSt-Stator und Vespel-Rotordichtung.
The stator of this manual injection valve is made of stainless steel with a DLC coating (diamond-like carbon). In combination with a Vespel rotor seal the valve offers high durability and a pressure resistance of up to 1200 bar.
The valve is for analytical applications and has 6 ports.
Interne Referenz:
AVI28AC
Technische Daten
| Allgemein | |
|---|---|
| Ventilfunktion | Säulenauswahl, Injektion |
| Ventilmodell | V 4.1 |
| Bedienung | Manuell |
| Ventilmaterial | Rostfreier Stahl (SST) |
| Spezifikationen | |
|---|---|
| Ventilport Anzahl | 6 |
| Ventilpositionen | 2 |
| Kapillaranschlüsse im Ventil | 1/16" |
| Max. Druck im Ventil | 1200 bar |
| GMP Relevant | |
|---|---|
| Statormaterial | Rostfreier Stahl-DLC (SST-DLC) |
| Rotormaterial | Vespel |
| Geometrie & Passform | |
|---|---|
| Bohrungsgröße | 0.3 mm |
| Gewinde | UNF 10-32 |
