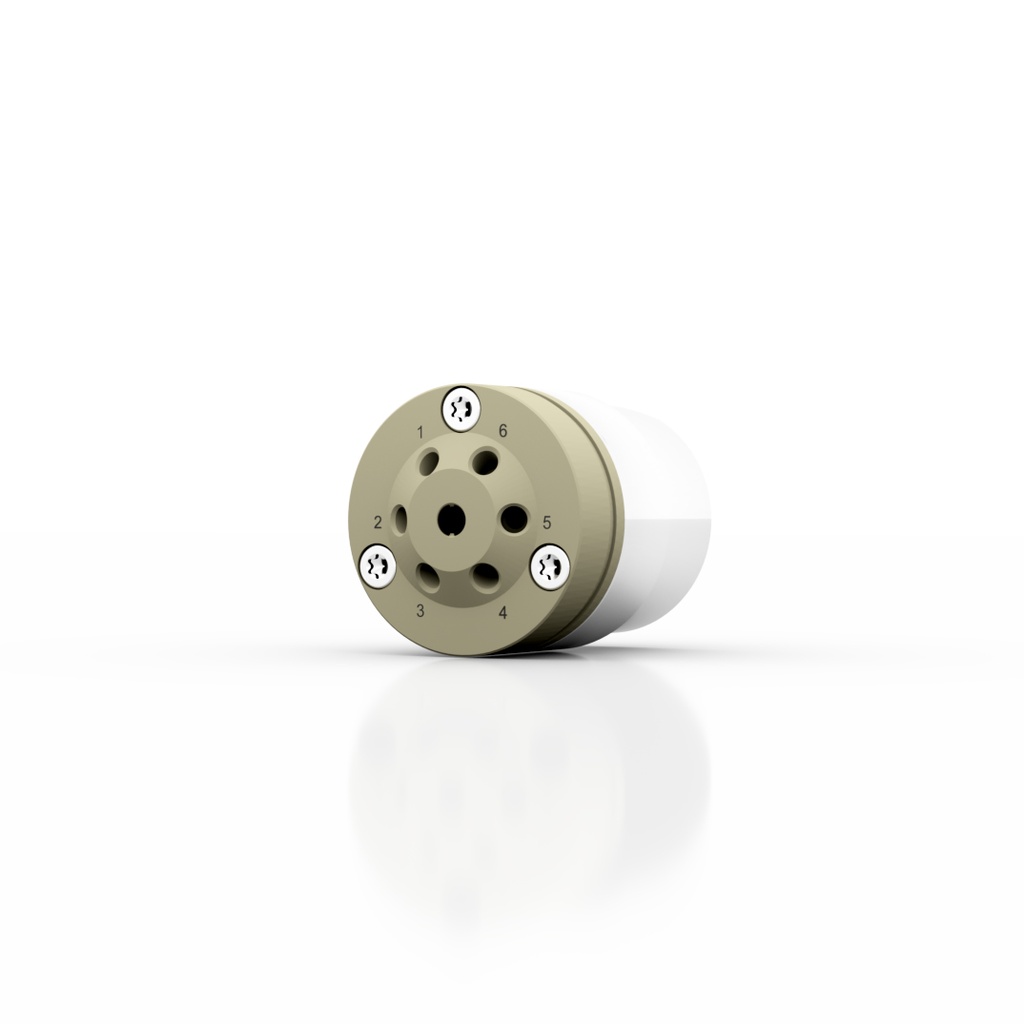

AZURA® V 4.1 Schaltventil, 6Port 2Pos o. Antrieb, 240 bar, 1/16" 10-32 UNF, 0,75 mm Bohrung, PEEK/PEEK
Biokompatibles, automatisches Ventil für Probeninjektion oder Säulenauswahl. PEEK Stator und PEEK TX Rotordichtung.
This valve is used in combination with the VU 4.1 valve unifier.
The stator of this injection valve is made of natural PEEK. In combination with a PEEK TX rotor seal the valve offers high durability and a pressure resistance of up to 240 bar.
Interne Referenz:
AVD24CE
Technische Daten
| Allgemein | |
|---|---|
| Ventilfunktion | Säulenauswahl, Injektion |
| Ventilmodell | V 4.1 |
| Bedienung | Elektrisch durch VU 4.1 |
| Ventilantrieb | Nicht enthalten |
| Ventilmaterial | Biokompatibel |
| Spezifikationen | |
|---|---|
| Ventilport Anzahl | 6 |
| Ventilpositionen | 2 |
| Kapillaranschlüsse im Ventil | 1/16" |
| Max. Druck im Ventil | 240 bar |
| GMP Relevant | |
|---|---|
| Statormaterial | PEEK |
| Rotormaterial | PEEK |
| Geometrie & Passform | |
|---|---|
| Bohrungsgröße | 0.75 mm |
| Gewinde | UNF 10-32 |
