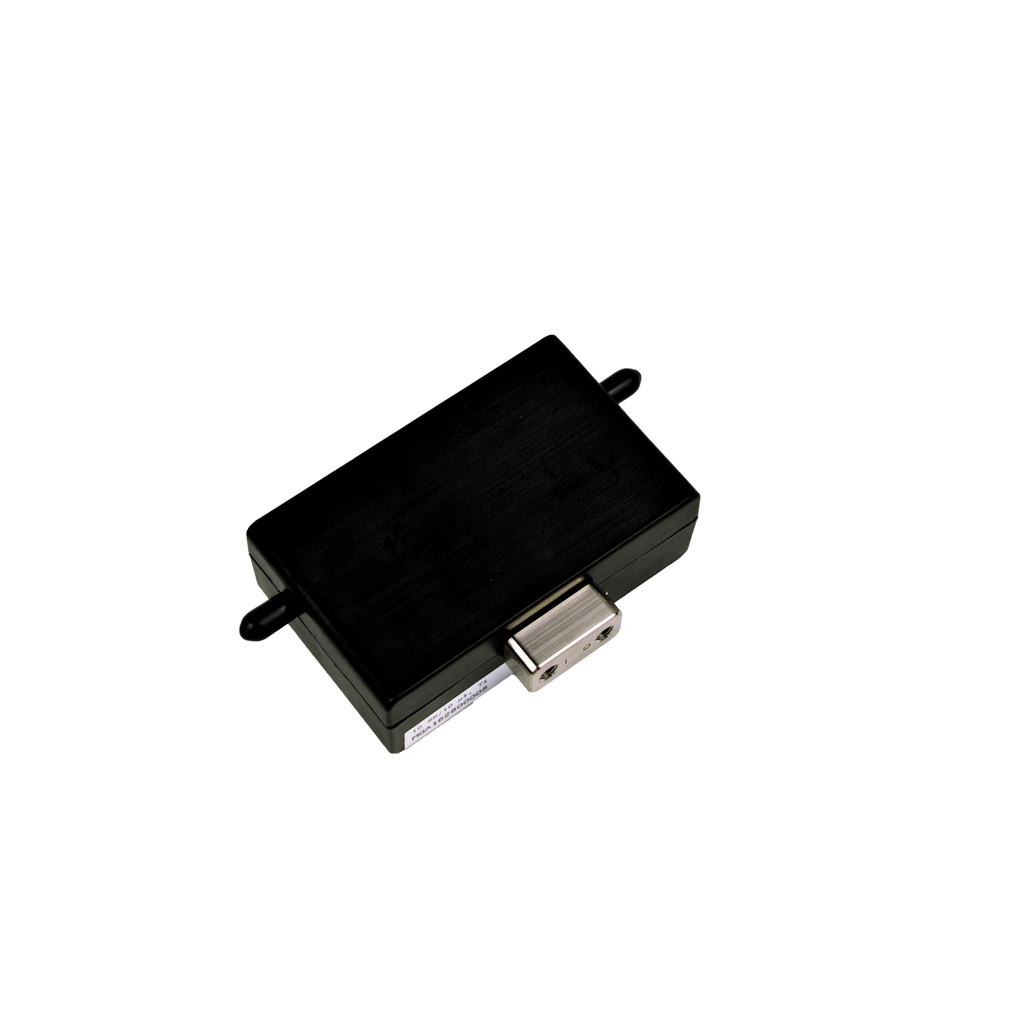

UV Flusszellen-Kartusche, PressureProof, Analytisch, 10 mm, 10 µl, Titan, 1/16'', 300 bar, bis zu 20 ml/min
This bioinert analytical flow cell cartridge is optimized for conventional HPLC applications and features an increased pressure stability (up to 300 bar) and extended flow rate range (up to 20 ml/min).
This flow cell is compatible with the KNAUER detectors AZURA® DAD 6.1L, DAD 2.1L, and MWD 2.1L.
This flow cell is compatible with the KNAUER detectors AZURA® DAD 6.1L, DAD 2.1L, and MWD 2.1L.
Interne Referenz:
AMC38
Technische Daten
| Allgemein | |
|---|---|
| Flusszellentyp | Analytische UV Flusszelle |
| Optische Pfadlänge | 10 mm |
| Flusszelle Volumen (intern) | 10 µl |
| Flusszelle Max. Druck | 300 bar, 4351 psi |
| Kompatibel mit dem Detektor | DAD 6.1L, DAD 2.1L, MWD 2.1L |
| Spezifikationen | |
|---|---|
| Lichtwellenleiter Version | Nein |
| Max. Flussrate | 20 ml/min |
| GMP Relevant | |
|---|---|
| Biokompatibel | Ja |
| Benetzte Materialien | Titan/Grade 5, Quartz (SUPRASIL), PEEK |
| Geometrie & Passform | |
|---|---|
| Flusszelle Kapillaranschluss | 1/16'' |
