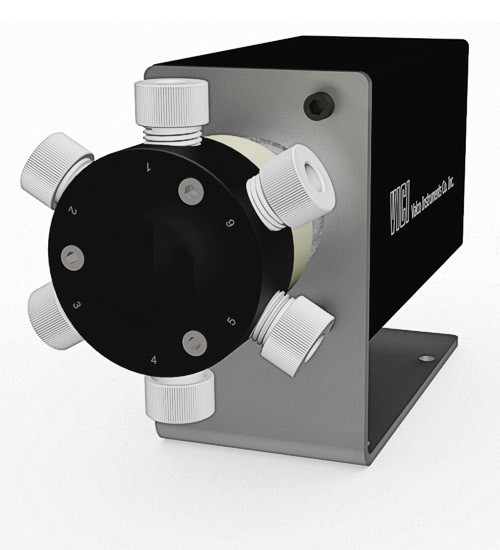

VICI/VALCO 6 Port 2 Pos Ventil PAEK/Valcon E2, 6.8 bar, für 1/4", inkl. Antrieb & 1/2"-20 Verschraubung, RS232
Automated valve for preparative applications like sample injection or column selection. PAEK stator and Valcon E2 rotor seal.
This valve is controlled electrical by VICI actuator. The stator of this injection valve is made of PAEK. In combination with a Valcon E2 rotor seal the valve offers high durability and a pressure resistance of up to 6,8 bar.
Interne Referenz:
A5859
Technische Daten
| Allgemein | |
|---|---|
| Ventilfunktion | Säulenauswahl oder Injektion |
| Ventilmodell | VICI |
| Bedienung | Elektrisch durch Vici-Aktuator |
| Ventilantrieb | Enthalten |
| Ventilmaterial | Biokompatibel |
| Spezifikationen | |
|---|---|
| Ventilport Anzahl | 6 |
| Ventilpositionen | 2 |
| Kapillaranschlüsse im Ventil | 1/4" |
| Max. Druck im Ventil | 6.8 bar |
| GMP Relevant | |
|---|---|
| Statormaterial | PEEK |
| Rotormaterial | Valcon |
| Geometrie & Passform | |
|---|---|
| Bohrungsgröße | 3.2 mm |
| Gewinde | UNF 1/2"-20 |
