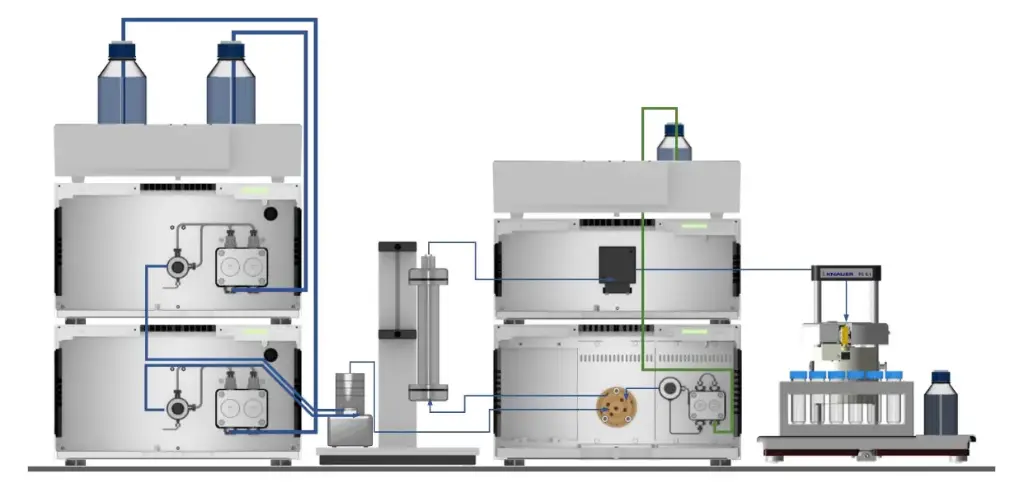

AZURA Prep.-250 gradient HPG (200 bar / 20 MPa)

The AZURA Prep.-250 gradient system is designed for the complex purification of small molecules at a pilot scale. All system modules are interchangeable, and additional modules can be added as needed for greater flexibility.

Key Features:
• Flow rate: 0.01–250 ml/min; 5 - 220 ml/min (recommended)
• Maximum system pressure: 200 bar (20.0 MPa)
• Injection valve for sample injection via sample loop or sample pump
• Sample pump, 0,1 - 50 ml/min max. 150 bar (15.0 MPa)
• Variable wavelength UV detector, single channel (190–700 nm)
• Fraction collector for fractionation
• Rack for Fraction collector for 15 or 50 ml tubes
• Compatible with columns from all vendors
• Intuitive PurityChrom® software
• 1/16“ Tubing on the high-pressure site

Interne Referenz: 744 403 122
