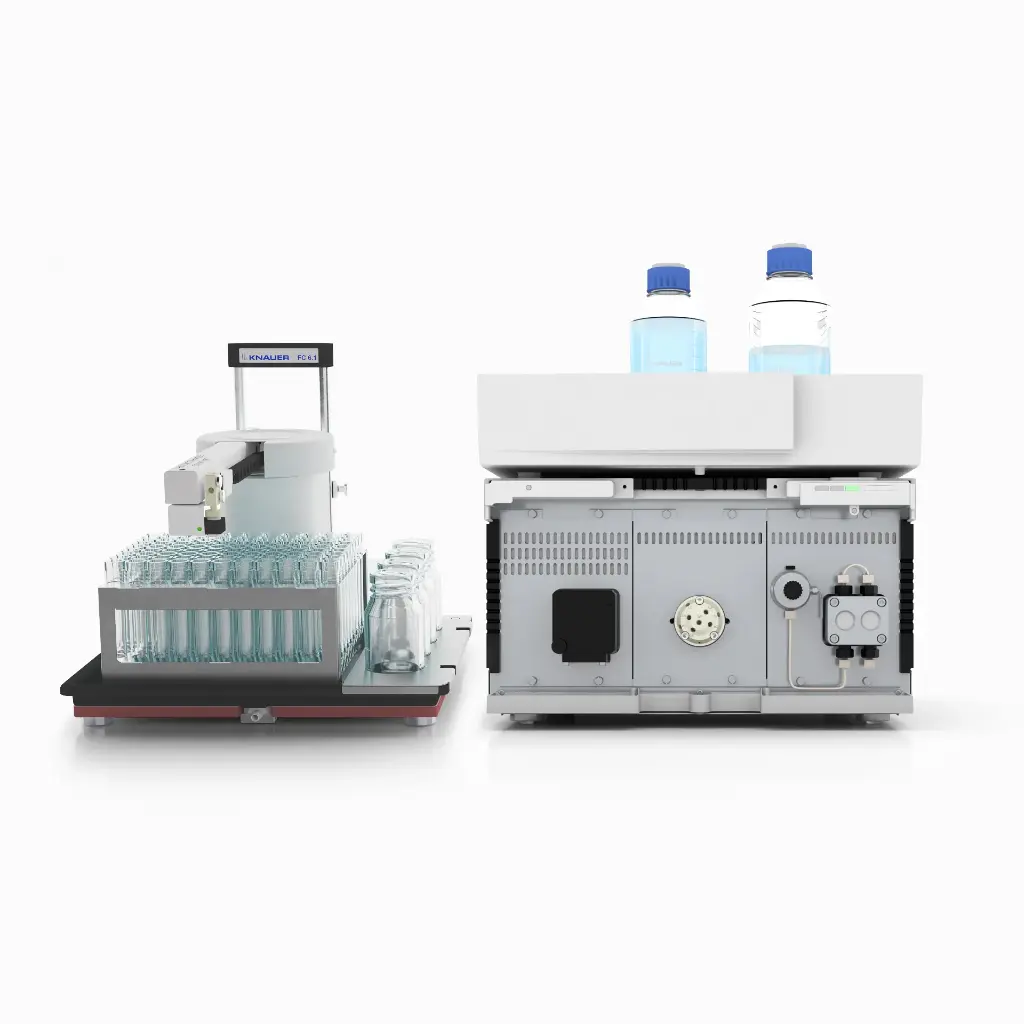

AZURA BIO Compact SEC System
Größenausschlusschromatographie bei bis zu 10 ml/min, 50 bar
Experience high-performance size exclusion chromatography (SEC) with the AZURA® Bio Compact SEC System – the perfect solution for SEC workflows in research, development, or routine analysis. This compact, modular system delivers robust, reliable results with ease.
System Components:
- High-precision ceramic pump with low pulsation for consistent flow rates
- Variable single wavelength UV detector
- Injection valve with sample loop
- PurityChrom® software for intuitive control and real-time monitoring
- Fraction collector with 2 ml rack support, ideal for preparative applications
Key features:
- Flow Rate: 0.001–10 ml/min
- Max Pressure: 50 bar (5.0 MPa)
- Sample loop: 500 µl
- One UV channel (190–500 nm)
- Column compatibility: works with all SEC columns on the market
- Material: All wetted parts are made of biocompatible materials
- Software: Intuitive PurityChrom® software
Optimize your SEC workflows today with the AZURA® Bio Compact SEC System – where precision meets simplicity.
Need a different system configuration? No problem.
Thanks to the modular design of the AZURA® platform, upgrades and custom configurations are easy to implement. Just contact us — we’re happy to help you define the perfect system tailored to your specific needs.
Interne Referenz:
720 300 100 000 706
Technische Daten
| Systemkonfiguration | |
|---|---|
| Lösungsmittelförderung | Isokratisch |
| Probeninjektion | Multi-Injektionsventil |
| Detektion | Variable Einzelwellenlängen-Detektion UV/VIS |
| Fraktionssammlung | Fraktionssammler |
| Systemkomponenten | |
|---|---|
| Pumpe | P 4.1S |
| Injektor | VU 4.1 |
| Detektor | UVD 2.1S |
| Fraktionssammler | FC 6.1 |
| Chromatographie Software CDS | PurityChrom 6 |
| Allgemein | |
|---|---|
| Pumpe Max. Druck | 50 bar |
| Pumpe Max. Flussrate | 10 ml/min |
| Wellenlängenbereich | 190-500 nm |
Finde alle Produktspezifikationen hier
